Sprinkler Installation - Victaulic VicFlex I-VICFLEX Field Installation Handbook

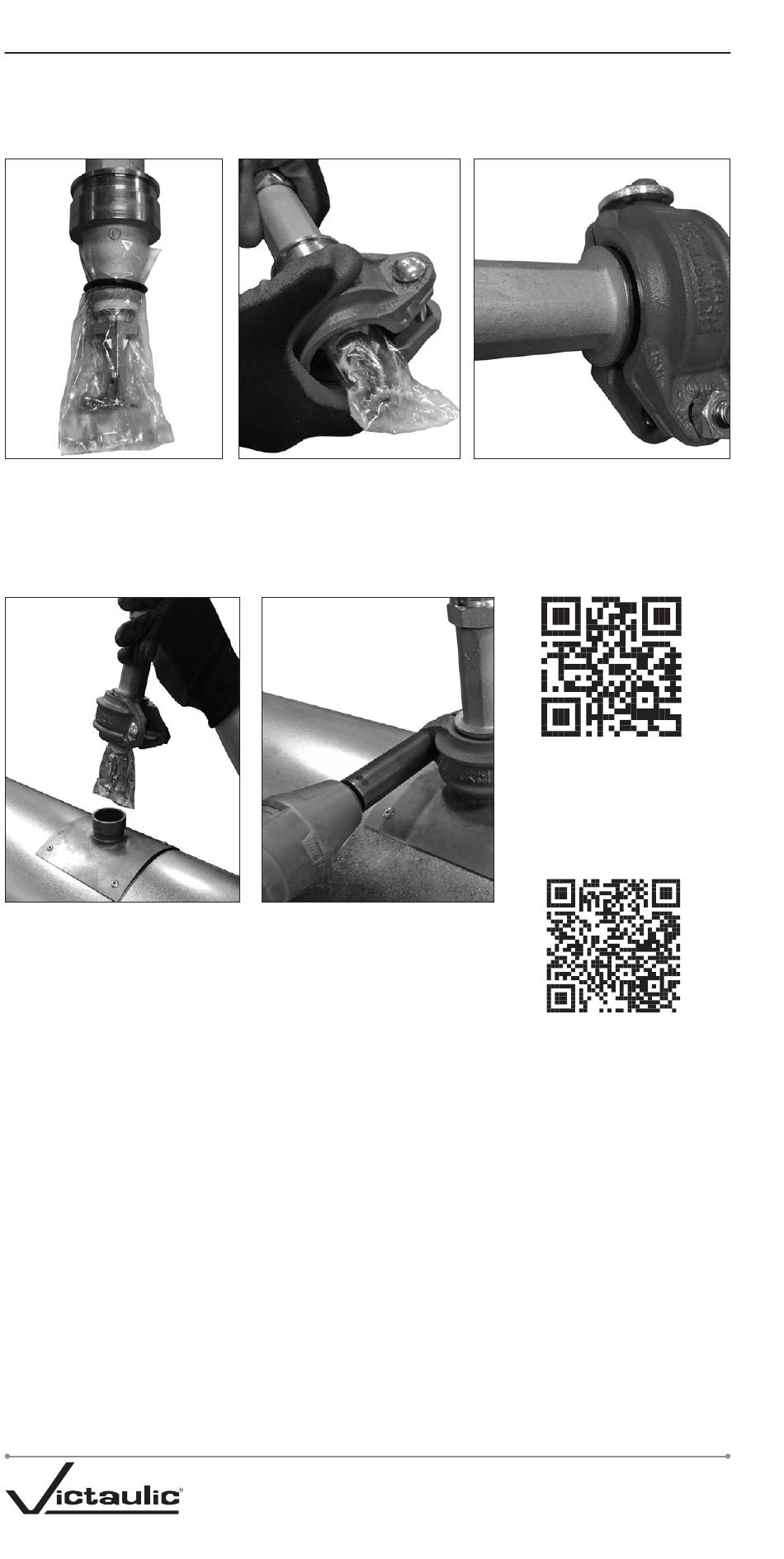

SPRINKLER INSTALLATION

1. Install the sprinkler by following the manufacturer's installation instructions. For
Victaulic sprinklers, refer to the I-40 Victaulic
and Maintenance Instructions.
2. Install the bag and O-ring. NOTE: Two different bag materials (cellophane and
polyethylene) are provided with the shipment. Choose the bag material that is appropriate
for system conditions. The polyethylene bag is larger than the cellophane bag.
3. Slide the Style 109 Coupling over the bag and O-ring.
4. Insert sprinkler/bag
assembly into bracket
opening.
5a. For applications where a Style 005 FireLock
Coupling with silicone gasket is required, refer to the
current version of the I-100 Field Installation Handbook for
instructions. For silicone gaskets, use Victaulic Lubricant
or a silicone-compatible lubricant. DO NOT use silicone
lubricant on silicone gaskets.
I-VICFLEX_102
FireLock
®
5. Install the Style 109
Coupling. Refer to the
Style 109 Installation-
Ready Coupling Installation
Instructions.
Rigid
™
STYLE AQD-M BRACKET INSTALLATION
FOR ROUND OR SQUARE METAL
Automatic Sprinklers Installation
™
SCAN QR CODE FOR
ACCESS TO THE
I-109 INSTALLATION
INSTRUCTIONS
SCAN QR CODE FOR
ACCESS TO THE STYLE
005 INSTALLATION
INSTRUCTIONS IN THE
I-100
FIELD INSTALLATION
HANDBOOK
OR FRP DUCTS REV_A
