INTRODUCTION

Victaulic VicFlex
® ™
using a flexible hose and fittings.
• Refer to the "Technical Data for Flexible Hoses" section.
• Refer to the "Important Installation Information" section.

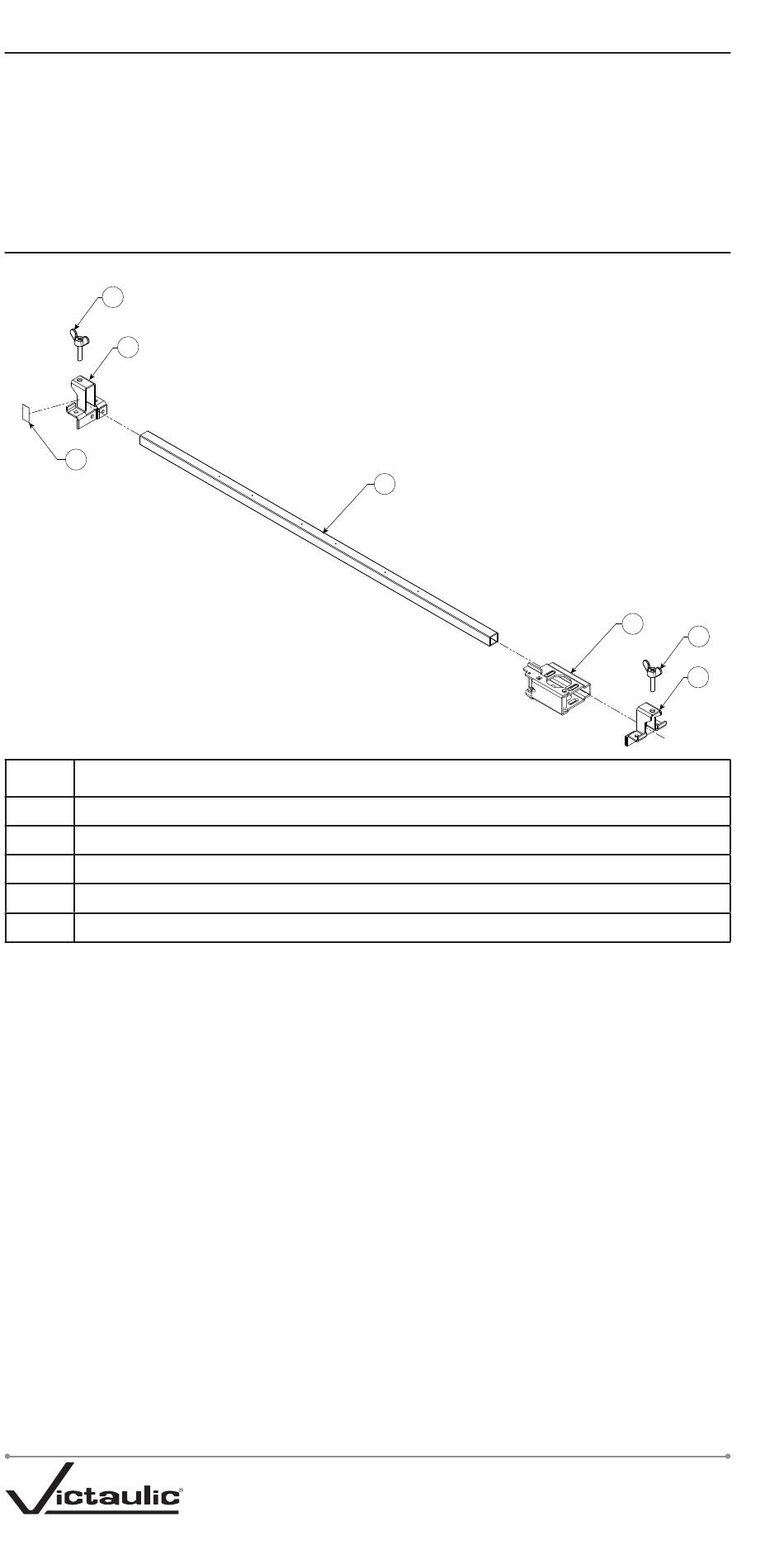

STYLE AB5 BRACKET ASSEMBLY DRAWING

4
3
5
Item
1 24-inch/610-mm or 48-inch/1219-mm Square Bar*
2 Center Gate Assembly with Adjustment Screw
3 Style AB5 End Bracket
4 Wing Screw
5 Relocation Warning Label
*For the UL Listing, when the 48-inch/1220-mm length bracket is used, the maximum
sprinkler K-factor is K8.0 and the maximum spacing is 30-inches/762-mm. Square bar
length is in reference to nominal ceiling grid spacing.
I-VICFLEX_44
Sprinkler Fittings connect the sprinkler piping directly to the sprinkler
Style AB5 Description
PROFILE (60 MM) CHANNEL SYSTEMS REV_A
1
STYLE AB5 BRACKET INSTALLATION FOR
WOOD OR METAL JOISTS/STUDS AND CD
2
4
3
