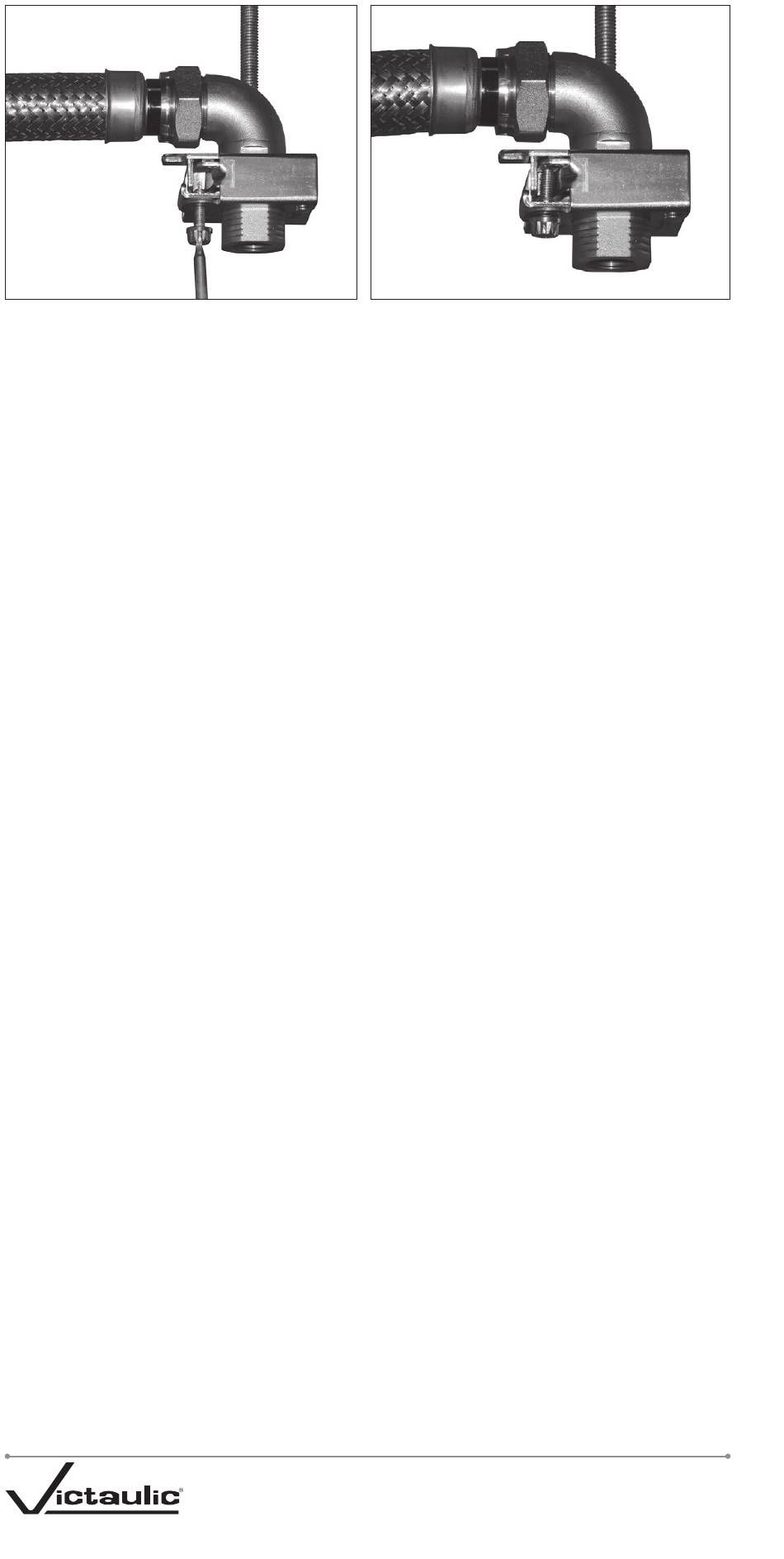

6. Using a T25 drive bit, tighten the adjustment screw to a torque of 75-inch-lbs/
8.5 N•m (until adjustment screw makes metal-to-metal contact with bottom of gate).
NOTE: The sprinkler reducing nipple can be adjusted after the drywall is installed by
using the adjustment screw on the center gate assembly.
7. Complete the installation by following the applicable instructions in the "Sprinkler
Reducing Nipple Installation" and "Sprinkler Installation" sections.
STYLE AB12 BRACKET INSTALLATION FOR
I-VICFLEX_76
SUSPENDED AND HARD LID CEILINGS REV_A
