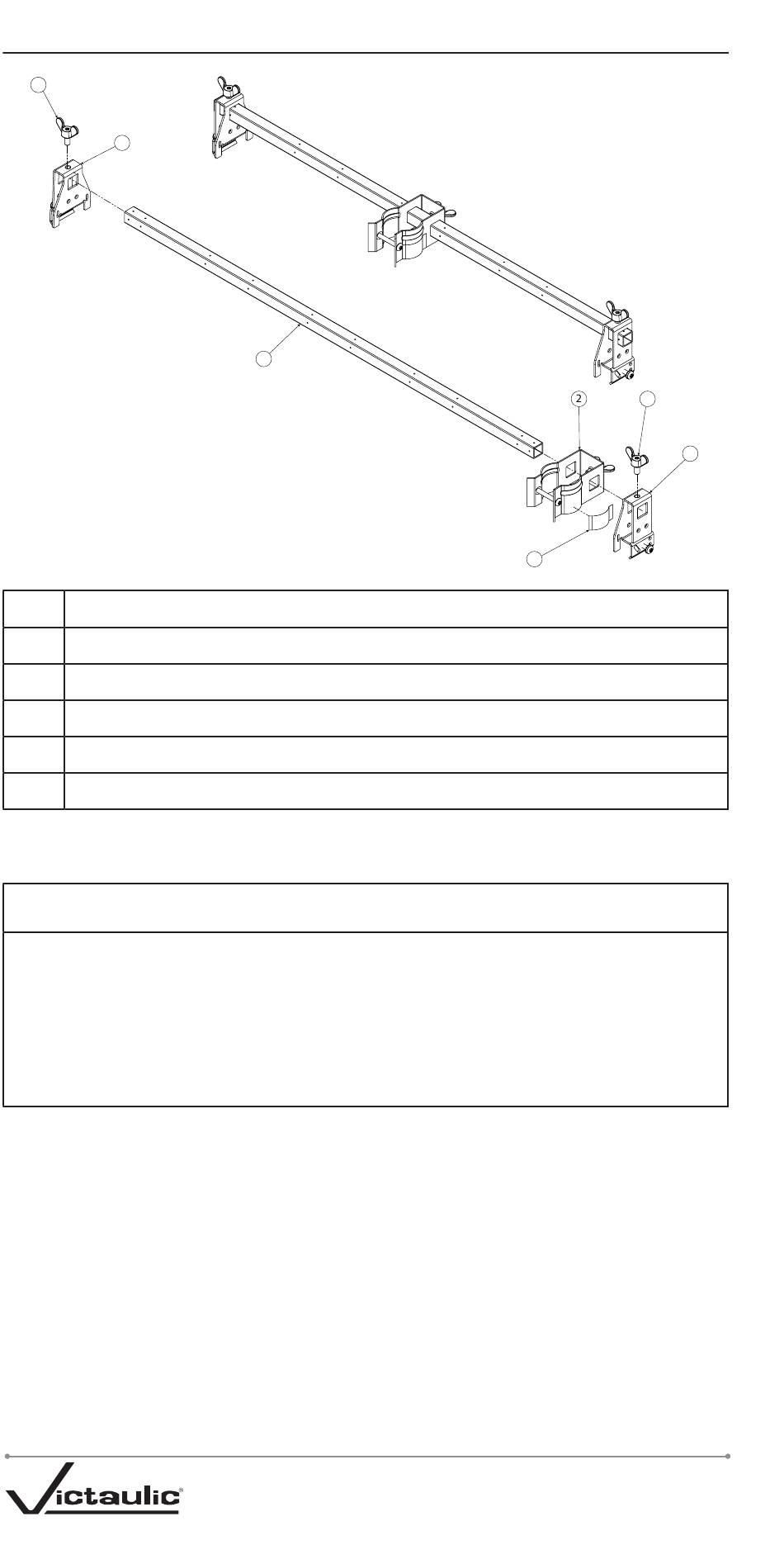

STYLE VB4 BRACKET ASSEMBLY DRAWING

5
3
Item
1 24-inch/610-mm or 48-inch/1219-mm Square Bar*
2 Center Gate Assembly with T25 Button Head Screw
3 Style VB4 End Bracket with Tapping Screw
4 Relocation/Tamper Evident Warning Label
5 Wing Screw
* Square bar length is in reference to nominal ceiling grid spacing.
• VICTAULIC VICFLEX
®
RECOMMENDED FOR USE WITH STYLE VS1 SLEEVE AND SKIRT PENDENT
SPRINKLERS.
• For the UL Listing, when the 48-inch/1220-mm length VB4 Bracket is used with
the VS1 (V35) Flexible Dry Sprinkler, the maximum spacing is 30-inches/
762-mm.
I-VICFLEX_118
1
Example Style VB4 Description
NOTICE
STYLE VB4 BRACKET ASSEMBLIES ARE
™
STYLE VS1 DRY SPRINKLER INSTALLATION
FOR FIRE PROTECTION SERVICE REV_A
5
4
3
