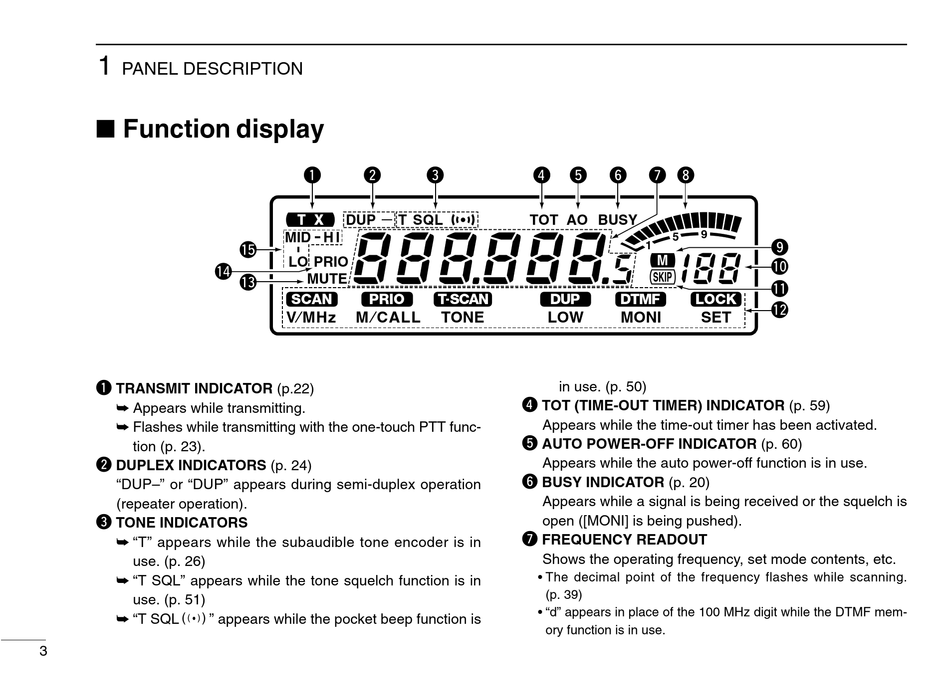

PANEL DESCRIPTION

I Function display

q
TRANSMIT INDICATOR (p.22)
➥ Appears while transmitting.
➥ Flashes while transmitting with the one-touch PTT func-
tion (p. 23).
w
DUPLEX INDICATORS (p. 24)
"DUP–" or "DUP" appears during semi-duplex operation
(repeater operation).
e
TONE INDICATORS
➥ "T" appears while the subaudible tone encoder is in
use. (p. 26)
➥ "T SQL" appears while the tone squelch function is in
use. (p. 51)
➥ "T SQLS" appears while the pocket beep function is
3
DUP T SQL
MID H I
LO PRIO
MUTE
SCAN PRIO T SCAN
V⁄ MHz M ⁄ CALL TONE
TOT AO BUSY
9
5
1
M
SKIP
DUP DTMF LOCK
LOW MONI SET
in use. (p. 50)
r
TOT (TIME-OUT TIMER) INDICATOR (p. 59)
Appears while the time-out timer has been activated.
t
AUTO POWER-OFF INDICATOR (p. 60)
Appears while the auto power-off function is in use.
y
BUSY INDICATOR (p. 20)
Appears while a signal is being received or the squelch is
open ([MONI] is being pushed).
u
FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• The decimal point of the frequency flashes while scanning.
(p. 39)
• "d" appears in place of the 100 MHz digit while the DTMF mem-
ory function is in use.
