INSTALLATION

I Battery connection

NEVER
connect the transceiver directly to a 24 V battery.
DO NOT
use the cigarette lighter socket for power con-
nections.
Attach a rubber grommet when passing the DC power
cable through a metal plate to prevent short circuits.

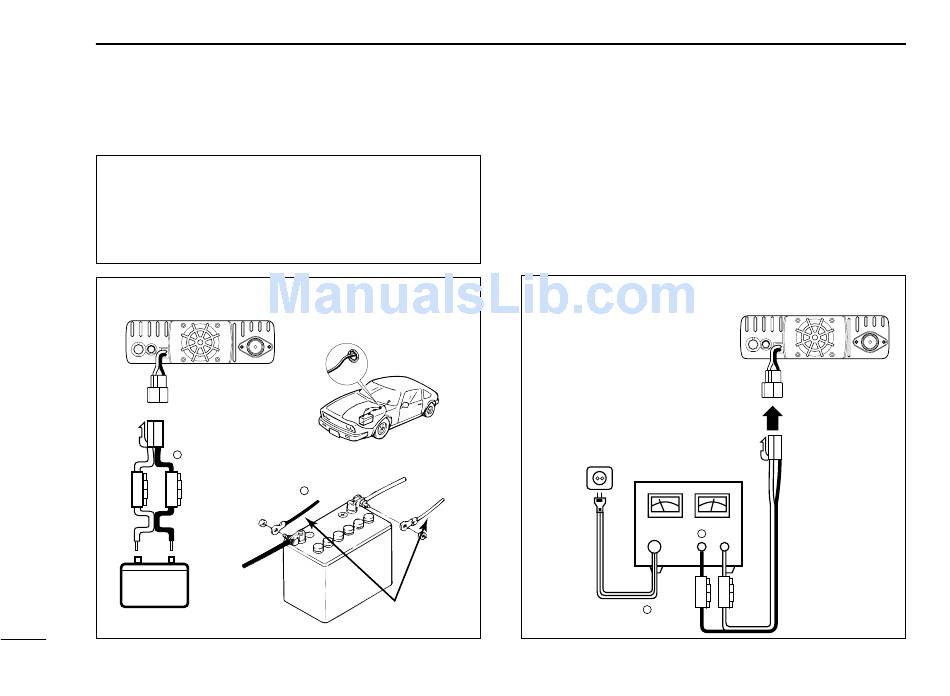

• CONNECTING TO A DC POWER SOURCE
See p. 69 for fuse replacement.
−
⊕
red black
Fuses
20 A
12 V
13
Grommet
− ⊕
red
black
Supplied
DC power cable

I DC power supply connection

Use a 13.8 V DC power supply with more than 12 A capabil-
ity. An optional IC-PS30
DC POWER SUPPLY
using the transceiver with a DC power supply in your home.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
See p.69 for fuse replacement.
DC power
supply 13.8 V
to an
−
AC
outlet
−
black
⊕
red
is available for
⊕
Fuses
20 A
