PANEL DESCRIPTION

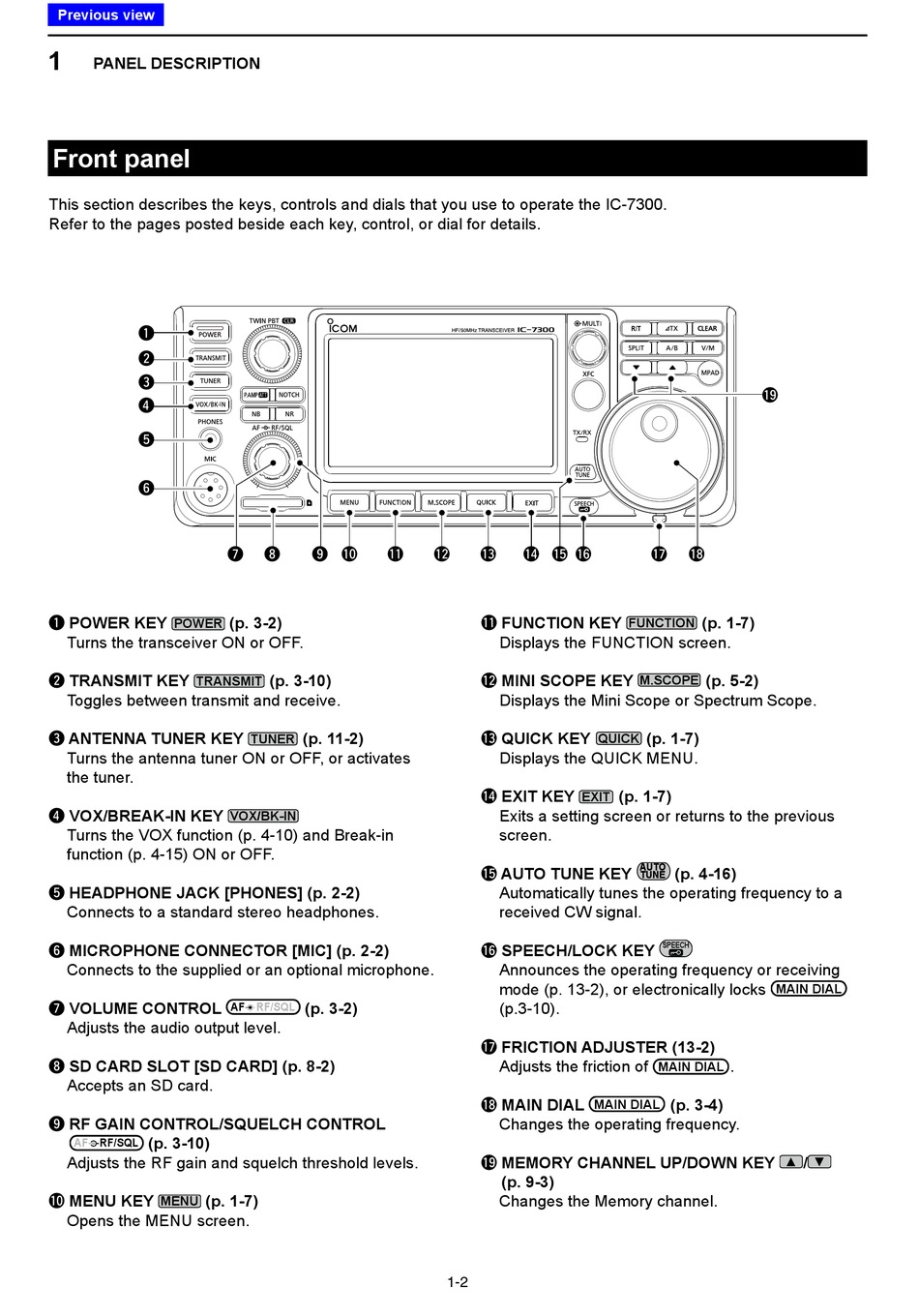

Front panel

This section describes the keys, controls and dials that you use to operate the IC-7300.
Refer to the pages posted beside each key, control, or dial for details.
q
w
e
r
t
y
q POWER KEY
POWER
Turns the transceiver ON or OFF.
w TRANSMIT KEY
TRANSMIT
Toggles between transmit and receive.
e ANTENNA TUNER KEY
Turns the antenna tuner ON or OFF, or activates
the tuner.
r VOX/BREAK-IN KEY
Turns the VOX function (p. 4-10) and Break-in
function (p. 4-15) ON or OFF.
t HEADPHONE JACK [PHONES] (p. 2-2)
Connects to a standard stereo headphones.
y MICROPHONE CONNECTOR [MIC] (p. 2-2)
Connects to the supplied or an optional microphone.
u VOLUME CONTROL
Adjusts the audio output level.
i SD CARD SLOT [SD CARD] (p. 8-2)
Accepts an SD card.
o RF GAIN CONTROL/SQUELCH CONTROL
(p. 3-10)
AF RF/SQL
Adjusts the RF gain and squelch threshold levels.
!0 MENU KEY (p. 1-7)
MENU
Opens the MENU screen.
u i o !0 !1
(p. 3-2)
(p. 3-10)
(p. 11-2)
TUNER
VOX/BK-IN
(p. 3-2)
AF RF/SQL
!2 !3 !4 !5 !6
!1 FUNCTION KEY
Displays the FUNCTION screen.
!2 MINI SCOPE KEY
Displays the Mini Scope or Spectrum Scope.
!3 QUICK KEY
QUICK
Displays the QUICK MENU.
!4 EXIT KEY
EXIT
Exits a setting screen or returns to the previous
screen.
!5 AUTO TUNE KEY
Automatically tunes the operating frequency to a
received CW signal.
!6 SPEECH/LOCK KEY
Announces the operating frequency or receiving
mode (p. 13-2), or electronically locks
(p.3-10).
!7 FRICTION ADJUSTER (13-2)
Adjusts the friction of
!8 MAIN DIAL
MAIN DIAL
Changes the operating frequency.
!9 MEMORY CHANNEL UP/DOWN KEY
(p. 9-3)
Changes the Memory channel.
1-2
!9
!7 !8
(p. 1-7)
FUNCTION
(p. 5-2)
M.SCOPE
(p. 1-7)
(p. 1-7)
AUTO
(p. 4-16)
TUNE
SPEECH
MAIN DIAL
.
MAIN DIAL
(p. 3-4)
▲
/
▼
