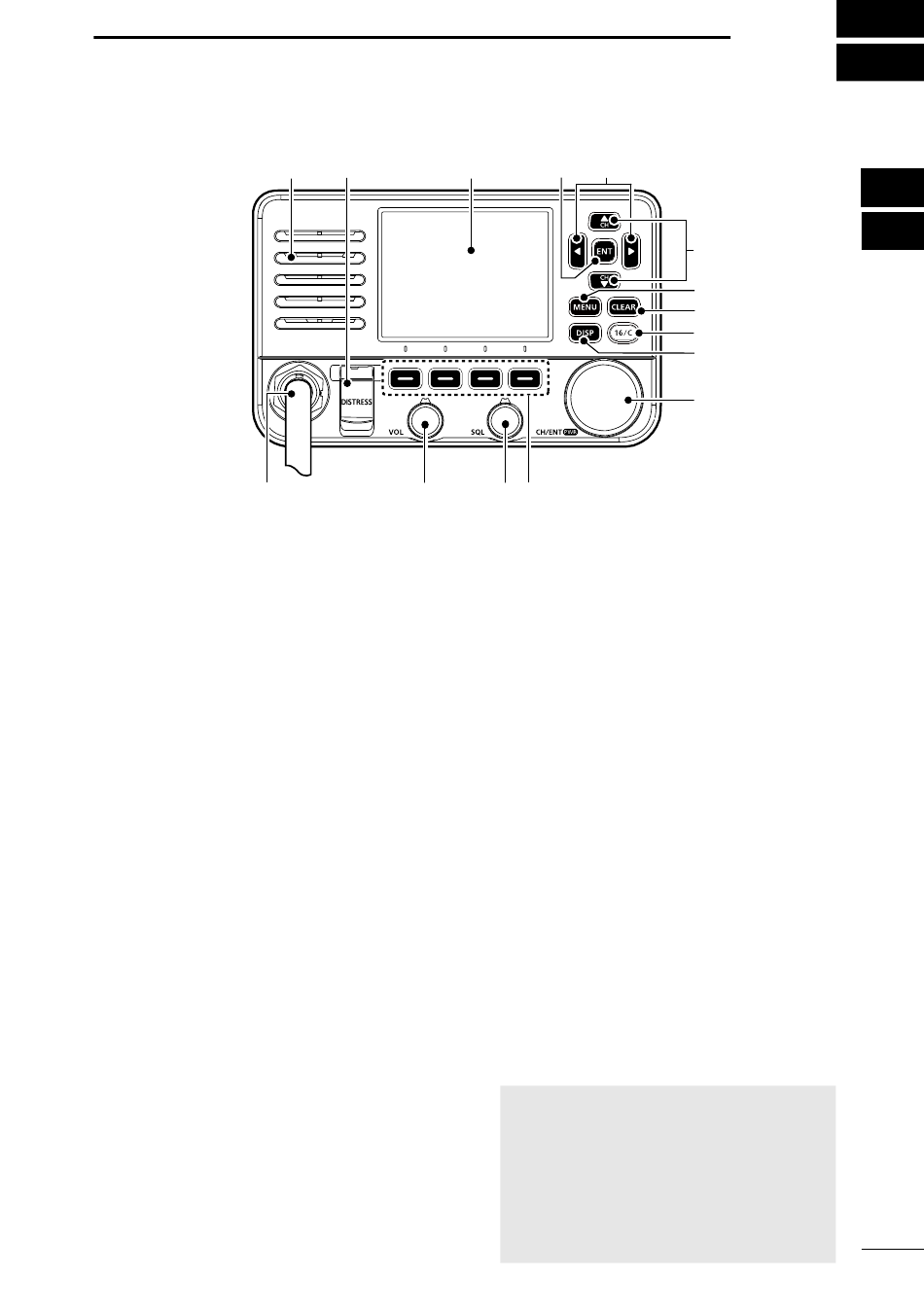

■ Front panel

Speaker
D
1 DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a
Distress call. (p. 21)
2 ENTER KEY [ENT]
Push to set the entered data, selected
item, and so on.
3 LEFT/RIGHT KEYS [◄]/[►]
• Push to scroll the Software Key
functions. (pp. 6~ 7)
• Push to select a character or number
in the entry mode.
(pp. 8, 14, 19~20)
4 UP/DOWN KEYS [▲]/[▼]
• Push to select an operating channel,
Menu items, Menu settings, and so on.
(p. 10)
• Push to select a character or number
in the entry mode.
(pp. 14, 19~20)
5 MENU KEY [MENU]
Push to display or close the Menu
screen.
6 CLEAR KEY [CLEAR]
Push to cancel the entered data or to
return to the previous screen.
7 CHANNEL 16/CALL CHANNEL KEY
[16/C]
• Push to select Channel 16. (p. 10)
• Hold down for 1 second to select the
Call channel. (p. 10)

PANEL DESCRIPTION

Function display (p. 4)
1
12 .
8 DISPLAY KEY [DISP]
• Push to switch the main screen
between the INFO, the Plotter, and the
Highway screens.
• In the main screen, hold down for 1
second to quickly toggle the display
mode (Day mode or Night mode).
9 CHANNEL/ENTER/POWER DIAL
[CH/ENT]/[PWR]
• Hold down for 1 second to turn the
transceiver ON or OFF.
• Rotate to select the operating channels,
Menu items, Menu settings, and so on.
• Push to set the entered data, selected
item, and so on.
# SOFTWARE KEYS (pp. 6 ~ 7)
Scroll the key functions pushing [◄] or
[►], then push either of the 4 Software
Keys to select the function displayed at
the bottom of the display.
. SQUELCH DIAL [SQL] (p. 12)
Rotate to adjust the squelch level.
12 VOLUME DIAL [VOL] (p. 12)
Rotate to adjust the volume level.
D MICROPHONE CONNECTOR
CAUTION:
• Be sure that the microphone connector
• When a microphone is not connected to the
