PANEL DESCRIPTION

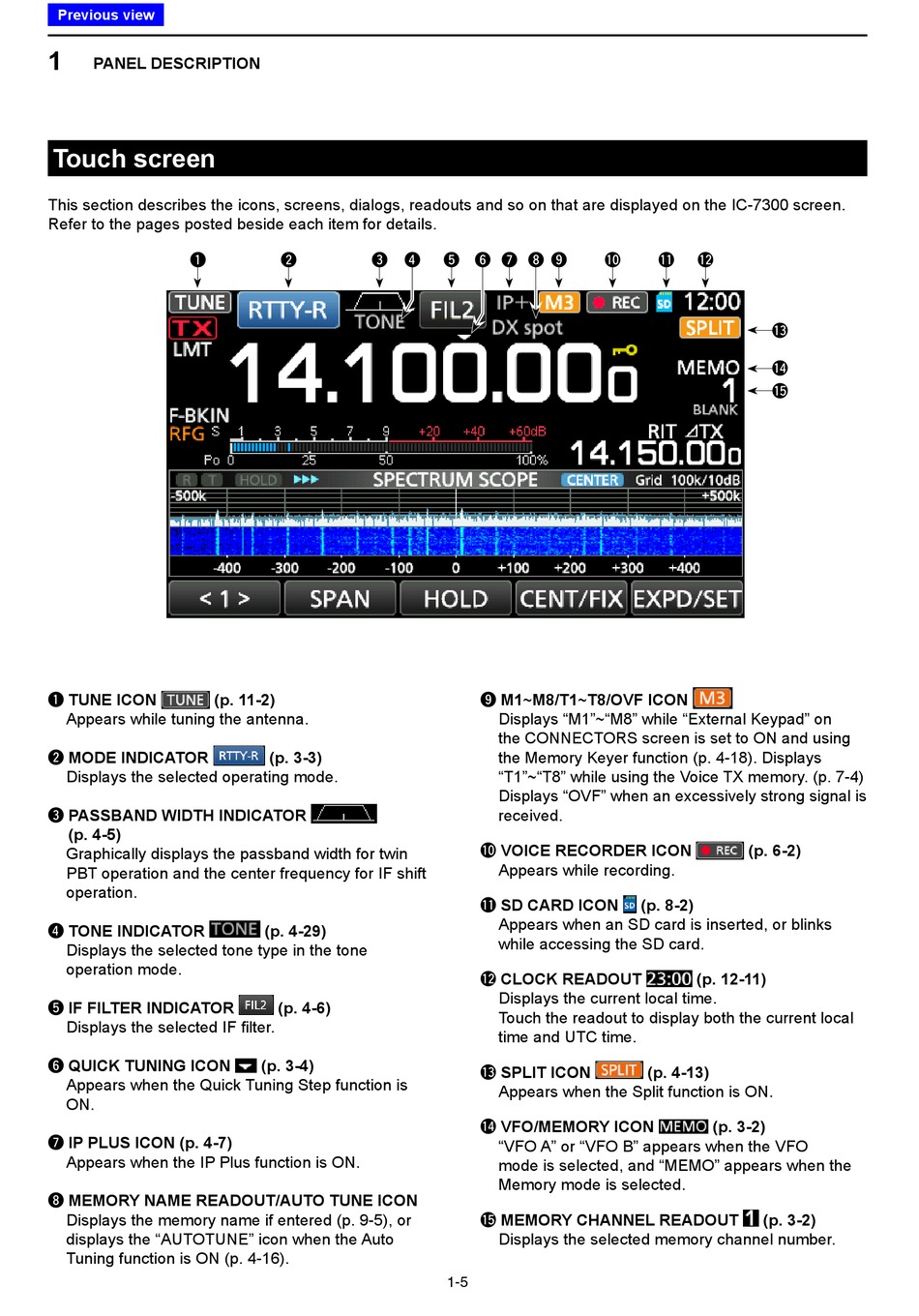

Touch screen

This section describes the icons, screens, dialogs, readouts and so on that are displayed on the IC-7300 screen.
Refer to the pages posted beside each item for details.
q
q TUNE ICON (p. 11-2)
Appears while tuning the antenna.
w MODE INDICATOR
Displays the selected operating mode.
e PASSBAND WIDTH INDICATOR
(p. 4-5)
Graphically displays the passband width for twin
PBT operation and the center frequency for IF shift
operation.
r TONE INDICATOR
Displays the selected tone type in the tone
operation mode.
t IF FILTER INDICATOR
D isplays the selected IF filter.
y QUICK TUNING ICON
Appears when the Quick Tuning Step function is
ON.
u IP PLUS ICON (p. 4-7)
Appears when the IP Plus function is ON.
i MEMORY NAME READOUT/AUTO TUNE ICON
Displays the memory name if entered (p. 9-5), or
displays the "AUTOTUNE" icon when the Auto
Tuning function is ON (p. 4-16).
w e r
(p. 3-3)
(p. 4-29)
(p. 4-6)
(p. 3-4)
t y u i o !0
o M1~M8/T1~T8/OVF ICON
Displays "M1"~"M8" while "External Keypad" on
the CONNECTORS screen is set to ON and using
the Memory Keyer function (p. 4-18). Displays
"T1"~"T8" while using the Voice TX memory. (p. 7-4)
Displays "OVF" when an excessively strong signal is
received.
!0 VOICE RECORDER ICON
Appears while recording.
!1 SD CARD ICON
Appears when an SD card is inserted, or blinks
while accessing the SD card.
!2 CLOCK READOUT
Displays the current local time.
Touch the readout to display both the current local
time and UTC time.
!3 SPLIT ICON
Appears when the Split function is ON.
!4 VFO/MEMORY ICON
"VFO A" or "VFO B" appears when the VFO
mode is selected, and "MEMO" appears when the
Memory mode is selected.
!5 MEMORY CHANNEL READOUT
Displays the selected memory channel number.
1-5
!1 !2
!3
!4
!5
(p. 6-2)
(p. 8-2)
(p. 12-11)
(p. 4-13)
(p. 3-2)
(p. 3-2)
