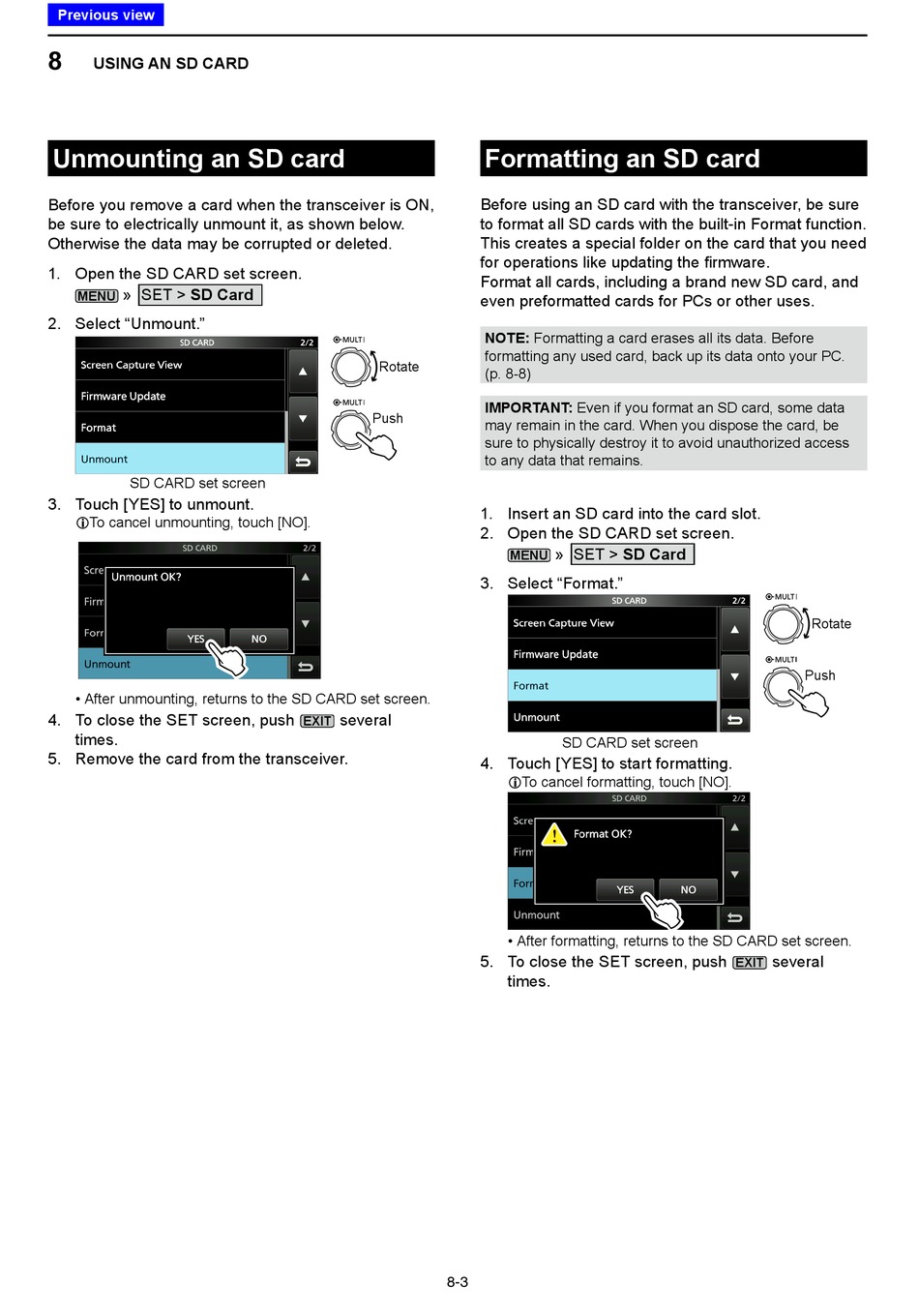

USING AN SD CARD

Unmounting an SD card

Before you remove a card when the transceiver is ON,
be sure to electrically unmount it, as shown below.
Otherwise the data may be corrupted or deleted.
1. Open the SD CARD set screen.
» SET > SD Card
MENU
2. Select "Unmount."
SD CARD set screen
3. Touch [YES] to unmount.
LTo cancel unmounting, touch [NO].
• After unmounting, returns to the SD CARD set screen.
4. To close the SET screen, push
times.
5. Remove the card from the transceiver.
Rotate
Push
several
EXIT
8-3

Formatting an SD card

Before using an SD card with the transceiver, be sure
to format all SD cards with the built-in Format function.
This creates a special folder on the card that you need
for operations like updating the firmware.
Format all cards, including a brand new SD card, and
even preformatted cards for PCs or other uses.
NOTE: Formatting a card erases all its data. Before
formatting any used card, back up its data onto your PC.
(p. 8-8)
IMPORTANT: Even if you format an SD card, some data
may remain in the card. When you dispose the card, be
sure to physically destroy it to avoid unauthorized access
to any data that remains.
1. Insert an SD card into the card slot.
2. Open the SD CARD set screen.
» SET > SD Card
MENU
3. Select "Format."
SD CARD set screen
4. Touch [YES] to start formatting.
LTo cancel formatting, touch [NO].
• After formatting, returns to the SD CARD set screen.
5. To close the SET screen, push
times.
Rotate
Push
several
EXIT
