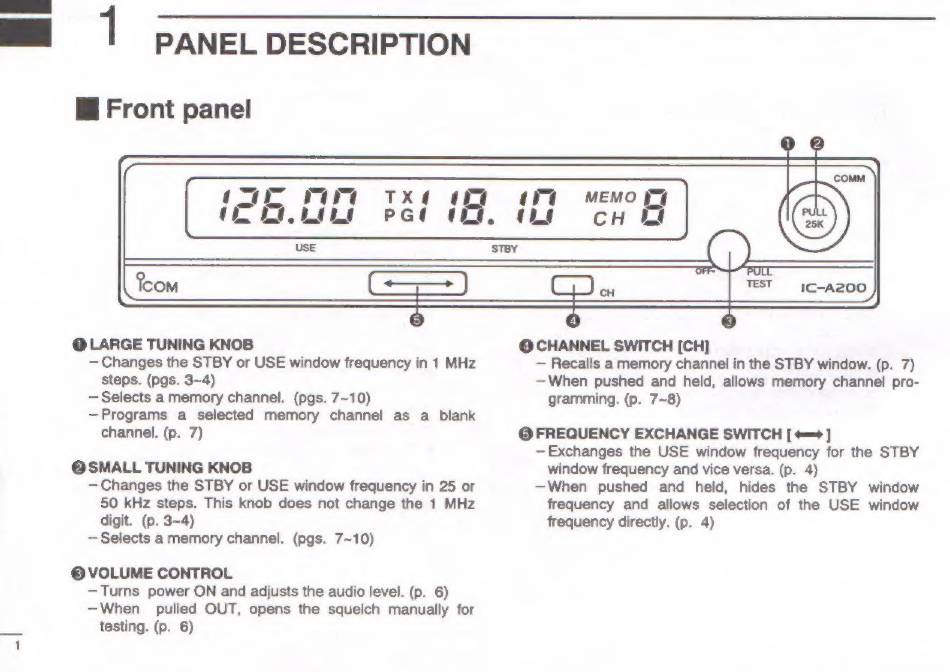

PANEL DESCRIPTION
i Front panel
MEMO J]
CH
@ LARGE TUNING KNOB
— Changes the STBY or USE window frequency in 1 MHz
steps. (pgs. 3~4)
— Selects a memory channel. (pgs. 7~10)
—Programs a selected memory channel as a blank
channel. (p. 7)
@SMALL TUNING KNOB
— Changes the STBY or USE window frequency in 25 or
50 kHz steps. This knob does not change the 1 MHz
digit. (p, 3~4)
— Selects a memory channel. (pgs. 7~10)
© VOLUME CONTROL
—Turns power ON and adjusts the audio level. (p. 6)
—When pulled OUT, opens the squelch manually for
testing. (p. 6)
@ CHANNEL SWITCH [CH]
— Recalls a memory channel in the STBY window. (p. 7)
—When pushed and held, allows memory channel pro-
gramming. (p. 7~8)
@ FREQUENCY EXCHANGE SWITCH [==]
—Exchanges the USE window frequency for the STBY
window frequency and vice versa. (p. 4)
—When pushed and held, hides the STBY window
frequency and allows selection of the USE window
frequency directly. (p. 4)
