12
SET MODE
» SET > Tone Control/TBW
MENU

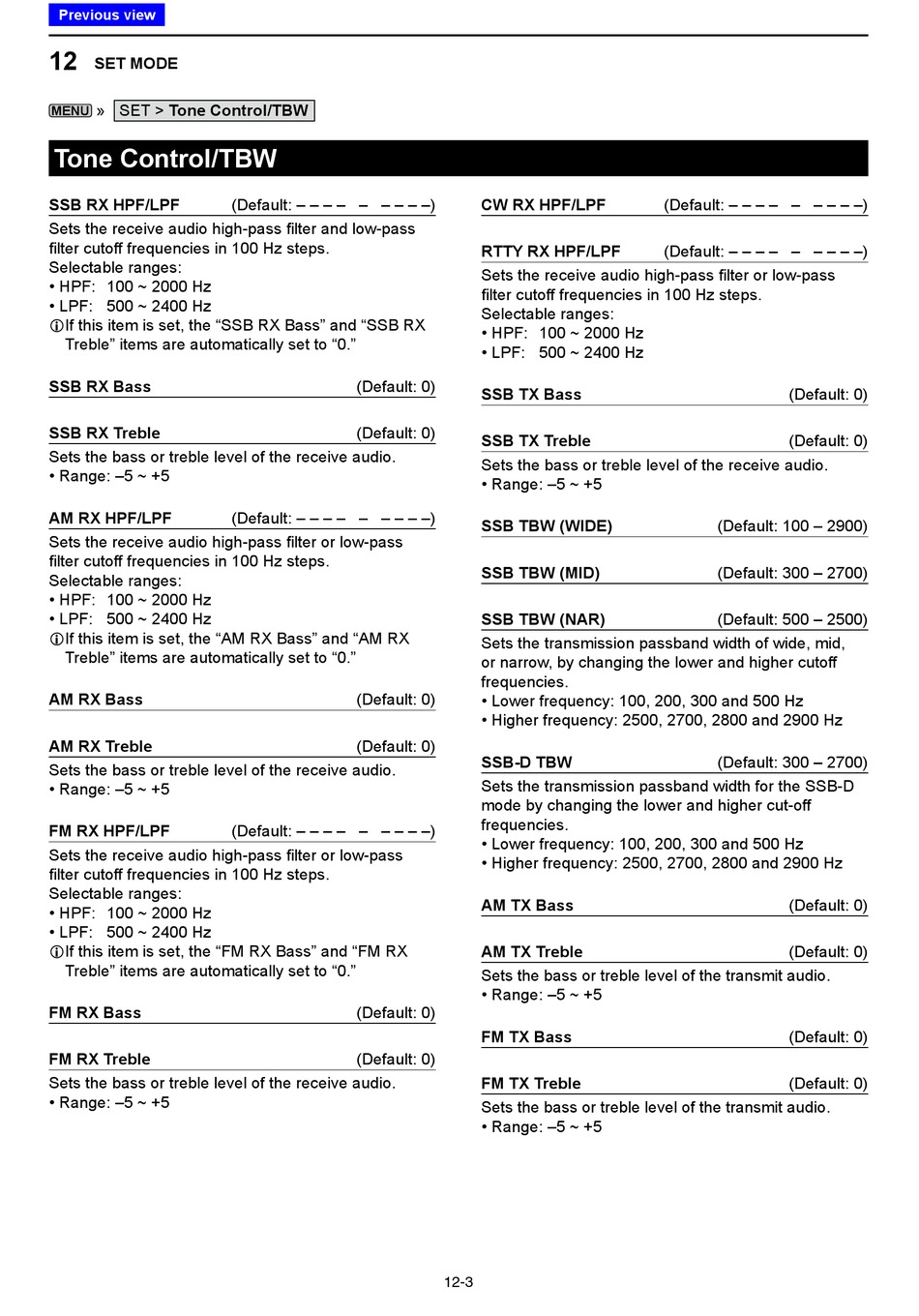

Tone Control/TBW

SSB RX HPF/LPF
Sets the receive audio high-pass filter and low-pass
filter cutoff frequencies in 100 Hz steps.
Selectable ranges:
• HPF: 100 ~ 2000 Hz
• LPF: 500 ~ 2400 Hz
L If this item is set, the "SSB RX Bass" and "SSB RX
Treble" items are automatically set to "0."
SSB RX Bmss
SSB RX Treble
Sets the bass or treble level of the receive audio.
• Range: –5 ~ +5
AM RX HPF/LPF
Sets the receive audio high-pass filter or low-pass
filter cutoff frequencies in 100 Hz steps.
Selectable ranges:
• HPF: 100 ~ 2000 Hz
• LPF: 500 ~ 2400 Hz
L If this item is set, the "AM RX Bass" and "AM RX
Treble" items are automatically set to "0."
AM RX Bmss
AM RX Treble
Sets the bass or treble level of the receive audio.
• Range: –5 ~ +5
FM RX HPF/LPF
Sets the receive audio high-pass filter or low-pass
filter cutoff frequencies in 100 Hz steps.
Selectable ranges:
• HPF: 100 ~ 2000 Hz
• LPF: 500 ~ 2400 Hz
L If this item is set, the "FM RX Bass" and "FM RX
Treble" items are automatically set to "0."
FM RX Bmss
FM RX Treble
Sets the bass or treble level of the receive audio.
• Range: –5 ~ +5
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
CW RX HPF/LPF
RTTY RX HPF/LPF
Sets the receive audio high-pass filter or low-pass
filter cutoff frequencies in 100 Hz steps.
Selectable ranges:
• HPF: 100 ~ 2000 Hz
• LPF: 500 ~ 2400 Hz
SSB TX Bmss
SSB TX Treble
Sets the bass or treble level of the receive audio.
• Range: –5 ~ +5
SSB TBW (WIDE)
SSB TBW (MID)
SSB TBW (NAR)
Sets the transmission passband width of wide, mid,
or narrow, by changing the lower and higher cutoff
frequencies.
• Lower frequency: 100, 200, 300 and 500 Hz
• Higher frequency: 2500, 2700, 2800 and 2900 Hz
SSB-D TBW
Sets the transmission passband width for the SSB-D
mode by changing the lower and higher cut-off
frequencies.
• Lower frequency: 100, 200, 300 and 500 Hz
• Higher frequency: 2500, 2700, 2800 and 2900 Hz
AM TX Bmss
AM TX Treble
Sets the bass or treble level of the transmit audio.
• Range: –5 ~ +5
FM TX Bmss
FM TX Treble
Sets the bass or treble level of the transmit audio.
• Range: –5 ~ +5
12-3
(Default: – – – – – – – – –)
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
(Default: 100 – 2900)
(Default: 300 – 2700)
(Default: 500 – 2500)
(Default: 300 – 2700)
(Default: 0)
(Default: 0)
(Default: 0)
(Default: 0)
