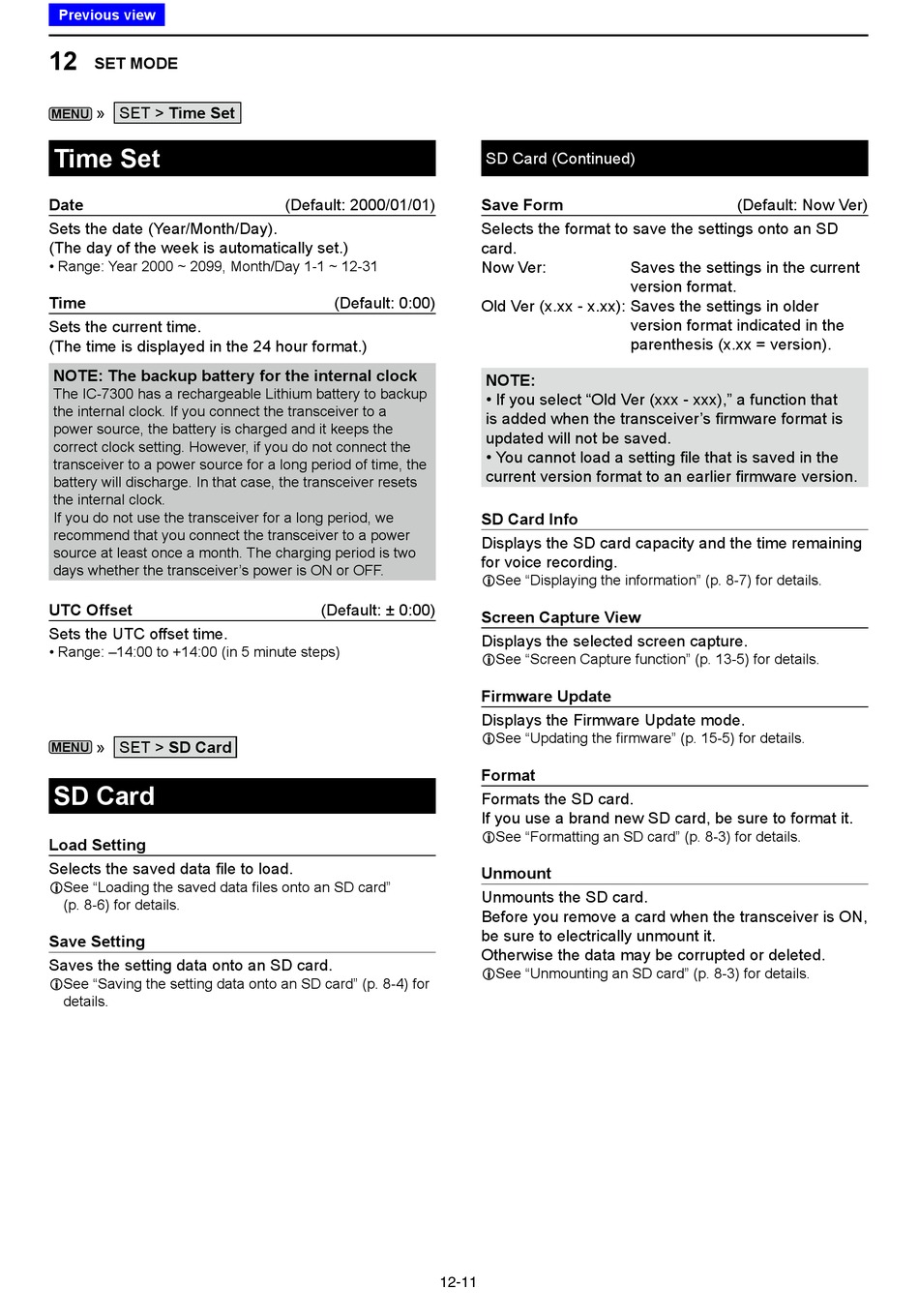

Time Set; Sd Card - Icom IC-7300 HF Plus Full Manual

Previous view
12
SET MODE
» SET > Time Set
MENU

Time Set

Dmte
Sets the date (Year/Month/Day).
(The day of the week is automatically set.)
• Range: Year 2000 ~ 2099, Month/Day 1-1 ~ 12-31
Time
Sets the current time.
(The time is displayed in the 24 hour format.)
NOTE: The bmckup bmttery nor the internml clock
The IC-7300 has a rechargeable Lithium battery to backup
the internal clock. If you connect the transceiver to a
power source, the battery is charged and it keeps the
correct clock setting. However, if you do not connect the
transceiver to a power source for a long period of time, the
battery will discharge. In that case, the transceiver resets
the internal clock.
If you do not use the transceiver for a long period, we
recommend that you connect the transceiver to a power
source at least once a month. The charging period is two
days whether the transceiver's power is ON or OFF.
UTC Onnset
Sets the UTC offset time.
• Range: –14:00 to +14:00 (in 5 minute steps)
» SET > SD Cmrd
MENU
SD Cmrd
Lomd Setting
Selects the saved data file to load.
L See "Loading the saved data files onto an SD card"
(p. 8-6) for details.
Smve Setting
Saves the setting data onto an SD card.
L See "Saving the setting data onto an SD card" (p. 8-4) for
details.
(Default: 2000/01/01)
(Default: 0:00)
(Default: ± 0:00)
12-11
SD Card (Continued)
Smve Form
Selects the format to save the settings onto an SD
card.
Now Ver: Saves the settings in the current
version format.
Old Ver (x.xx - x.xx): Saves the settings in older
version format indicated in the
parenthesis (x.xx = version).
NOTE:
• If you select "Old Ver (xxx - xxx)," a function that
is added when the transceiver's firmware format is
updated will not be saved.
• You cannot load a setting file that is saved in the
current version format to an earlier firmware version.
SD Cmrd Inno
Displays the SD card capacity and the time remaining
for voice recording.
L See "Displaying the information" (p. 8-7) for details.
Screen Cmpture View
Displays the selected screen capture.
L See "Screen Capture function" (p. 13-5) for details.
Firmwmre Updmte
Displays the Firmware Update mode.
L See "Updating the firmware" (p. 15-5) for details.
Formmt
Formats the SD card.
If you use a brand new SD card, be sure to format it.
L See "Formatting an SD card" (p. 8-3) for details.
Unmount
Unmounts the SD card.
Before you remove a card when the transceiver is ON,
be sure to electrically unmount it.
Otherwise the data may be corrupted or deleted.
L See "Unmounting an SD card" (p. 8-3) for details.
(Default: Now Ver)
