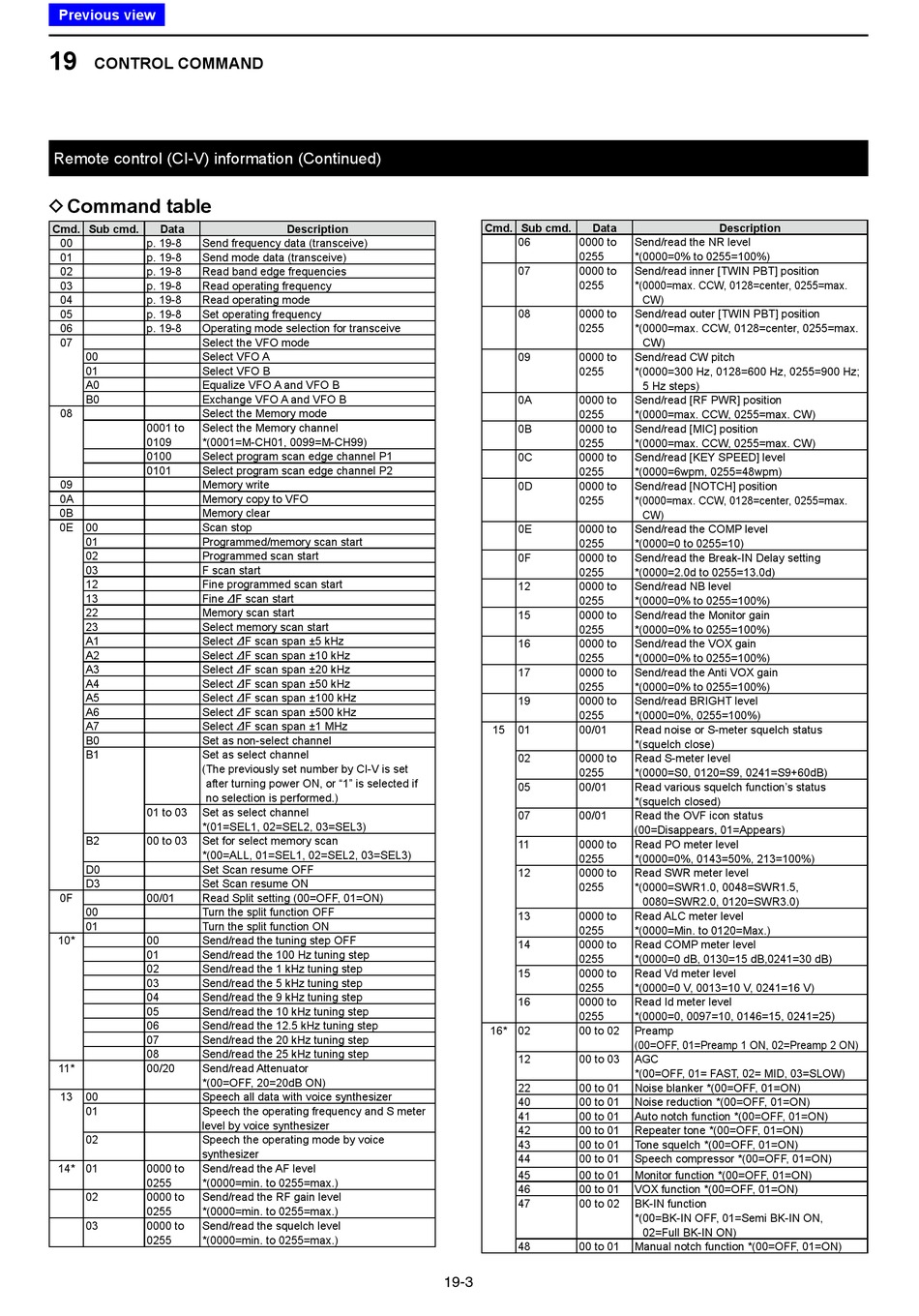

19
CONTROL COMMAND
Remote control (CI-V) information (Continued)
D Command table
Cmd. Sub cmd. Data
00 p. 19-8 Send frequency data (transceive)
01 p. 19-8 Send mode data (transceive)
02 p. 19-8 Read band edge frequencies
03 p. 19-8 Read operating frequency
04 p. 19-8 Read operating mode
05 p. 19-8 Set operating frequency
06 p. 19-8 Operating mode selection for transceive
07 Select the VFO mode
00 Select VFO A
01 Select VFO B
A0 Equalize VFO A and VFO B
B0 Exchange VFO A and VFO B
08 Select the Memory mode
0001 to Select the Memory channel
0109 *(0001=M-CH01, 0099=M-CH99)
0100 Select program scan edge channel P1
0101 Select program scan edge channel P2
09 Memory write
0A Memory copy to VFO
0B Memory clear
0E 00 Scan stop
01 Programmed/memory scan start
02 Programmed scan start
03 F scan start
12 Fine programmed scan start
13 Fine ∂F scan start
22 Memory scan start
23 Select memory scan start
A1 Select ∂F scan span ±5 kHz
A2 Select ∂F scan span ±10 kHz
A3 Select ∂F scan span ±20 kHz
A4 Select ∂F scan span ±50 kHz
A5 Select ∂F scan span ±100 kHz
A6 Select ∂F scan span ±500 kHz
A7 Select ∂F scan span ±1 MHz
B0 Set as non-select channel
B1 Set as select channel
( The previously set number by CI-V is set
after turning power ON, or "1" is selected if
no selection is performed.)
01 to 03 Set as select channel
*(01=SEL1, 02=SEL2, 03=SEL3)
B2 00 to 03 Set for select memory scan
*(00=ALL, 01=SEL1, 02=SEL2, 03=SEL3)
D0 Set Scan resume OFF
D3 Set Scan resume ON
0F 00/01 Read Split setting (00=OFF, 01=ON)
00 Turn the split function OFF
01 Turn the split function ON
10* 00 Send/read the tuning step OFF
01 Send/read the 100 Hz tuning step
02 Send/read the 1 kHz tuning step
03 Send/read the 5 kHz tuning step
04 Send/read the 9 kHz tuning step
05 Send/read the 10 kHz tuning step
06 Send/read the 12.5 kHz tuning step
07 Send/read the 20 kHz tuning step
08 Send/read the 25 kHz tuning step
11* 00/20 Send/read Attenuator
*(00=OFF, 20=20dB ON)
13 00 Speech all data with voice synthesizer
01 Speech the operating frequency and S meter
level by voice synthesizer
02 Speech the operating mode by voice
synthesizer
14* 01 0000 to Send/read the AF level
0255 *(0000=min. to 0255=max.)
02 0000 to Send/read the RF gain level
0255 *(0000=min. to 0255=max.)
03 0000 to Send/read the squelch level
0255 *(0000=min. to 0255=max.)
Description
19-3
Cmd. Sub cmd. Data
06 0000 to Send/read the NR level
0255 *(0000=0% to 0255=100%)
07 0000 to Send/read inner [TWIN PBT] position
0255 *( 0000=max. CCW, 0128=center, 0255=max.
CW)
08 0000 to Send/read outer [TWIN PBT] position
0255 *( 0000=max. CCW, 0128=center, 0255=max.
CW)
09 0000 to Send/read CW pitch
0255 *( 0000=300 Hz, 0128=600 Hz, 0255=900 Hz;
5 Hz steps)
0A 0000 to Send/read [RF PWR] position
0255 *(0000=max. CCW, 0255=max. CW)
0B 0000 to Send/read [MIC] position
0255 *(0000=max. CCW, 0255=max. CW)
0C 0000 to Send/read [KEY SPEED] level
0255 *(0000=6wpm, 0255=48wpm)
0D 0000 to Send/read [NOTCH] position
0255 *( 0000=max. CCW, 0128=center, 0255=max.
CW)
0E 0000 to Send/read the COMP level
0255 *(0000=0 to 0255=10)
0F 0000 to Send/read the Break-IN Delay setting
0255 *(0000=2.0d to 0255=13.0d)
12 0000 to Send/read NB level
0255 *(0000=0% to 0255=100%)
15 0000 to Send/read the Monitor gain
0255 *(0000=0% to 0255=100%)
16 0000 to Send/read the VOX gain
0255 *(0000=0% to 0255=100%)
17 0000 to Send/read the Anti VOX gain
0255 *(0000=0% to 0255=100%)
19 0000 to Send/read BRIGHT level
0255 *(0000=0%, 0255=100%)
15 01 00/01 Read noise or S-meter squelch status
*(squelch close)
02 0000 to Read S-meter level
0255 *(0000=S0, 0120=S9, 0241=S9+60dB)
05 00/01 Read various squelch function's status
*(squelch closed)
07 00/01 Read the OVF icon status
(00=Disappears, 01=Appears)
11 0000 to Read PO meter level
0255 *(0000=0%, 0143=50%, 213=100%)
12 0000 to Read SWR meter level
0255 *( 0000=SWR1.0, 0048=SWR1.5,
0080=SWR2.0, 0120=SWR3.0)
13 0000 to Read ALC meter level
0255 *(0000=Min. to 0120=Max.)
14 0000 to Read COMP meter level
0255 *(0000=0 dB, 0130=15 dB,0241=30 dB)
15 0000 to Read Vd meter level
0255 *(0000=0 V, 0013=10 V, 0241=16 V)
16 0000 to Read Id meter level
0255 *(0000=0, 0097=10, 0146=15, 0241=25)
16* 02 00 to 02 Preamp
( 00=OFF, 01=Preamp 1 ON, 02=Preamp 2 ON)
12 00 to 03 AGC
*(00=OFF, 01= FAST, 02= MID, 03=SLOW)
22 00 to 01 Noise blanker *(00=OFF, 01=ON)
40 00 to 01 Noise reduction *(00=OFF, 01=ON)
41 00 to 01 Auto notch function *(00=OFF, 01=ON)
42 00 to 01 Repeater tone *(00=OFF, 01=ON)
43 00 to 01 Tone squelch *(00=OFF, 01=ON)
44 00 to 01 Speech compressor *(00=OFF, 01=ON)
45 00 to 01 Monitor function *(00=OFF, 01=ON)
46 00 to 01 VOX function *(00=OFF, 01=ON)
47 00 to 02 BK-IN function
*( 00=BK-IN OFF, 01=Semi BK-IN ON,
02=Full BK-IN ON)
48 00 to 01 Manual notch function *(00=OFF, 01=ON)
Description
