14
MAINTENANCE

Cleaning

DO NOT use harsh solvents such as
benzine or alcohol when cleaning,
because they will damage the transceiver
surfaces.

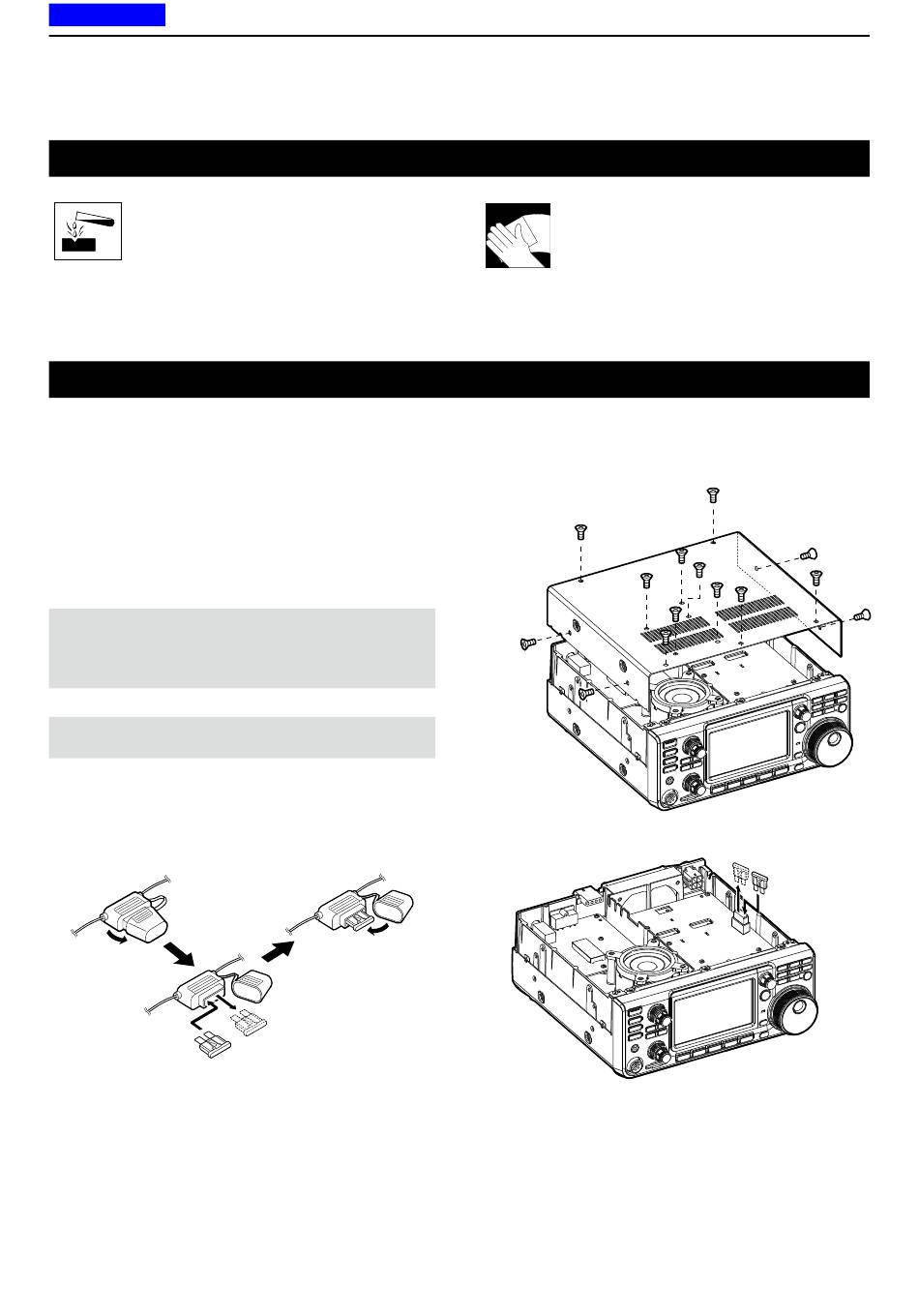

Replacing fuse

If a fuse blows, or the transceiver stops functioning,
find and repair the cause of the problem. Then replace
the damaged fuse with a new, adequately rated fuse.
The fuses are installed in the DC power cable and the
circuitry in the body, to protect the transceiver.
• DC power cable fuses .......................ATC 25 A /30 A*
• Circuitry fuse ................................................. ATC 5 A
* The fuse type differs, depending on the transceiver version.
R
WARNING!
• Disconnect the DC power cable from the transceiver
before replacing the fuse.
• NEVER use fuses that are not specified.
CAUTION: When you remove a fuse, use longnose pliers
to protect your fingers and the fuse holders.

D DC power cable fuses

See the following illustration to replace the DC power
cable fuses.
ATC 25 A/30 A fuse
If the transceiver becomes dusty or dirty,
wipe it clean with a dry, soft cloth.

D Circuitry fuse

1. Remove the 14 screws, then remove the cover.
2. Replace the circuitry fuse as shown below.
3. Replace the cover and the screws.
14-2
ATC 5 A fuse
