18

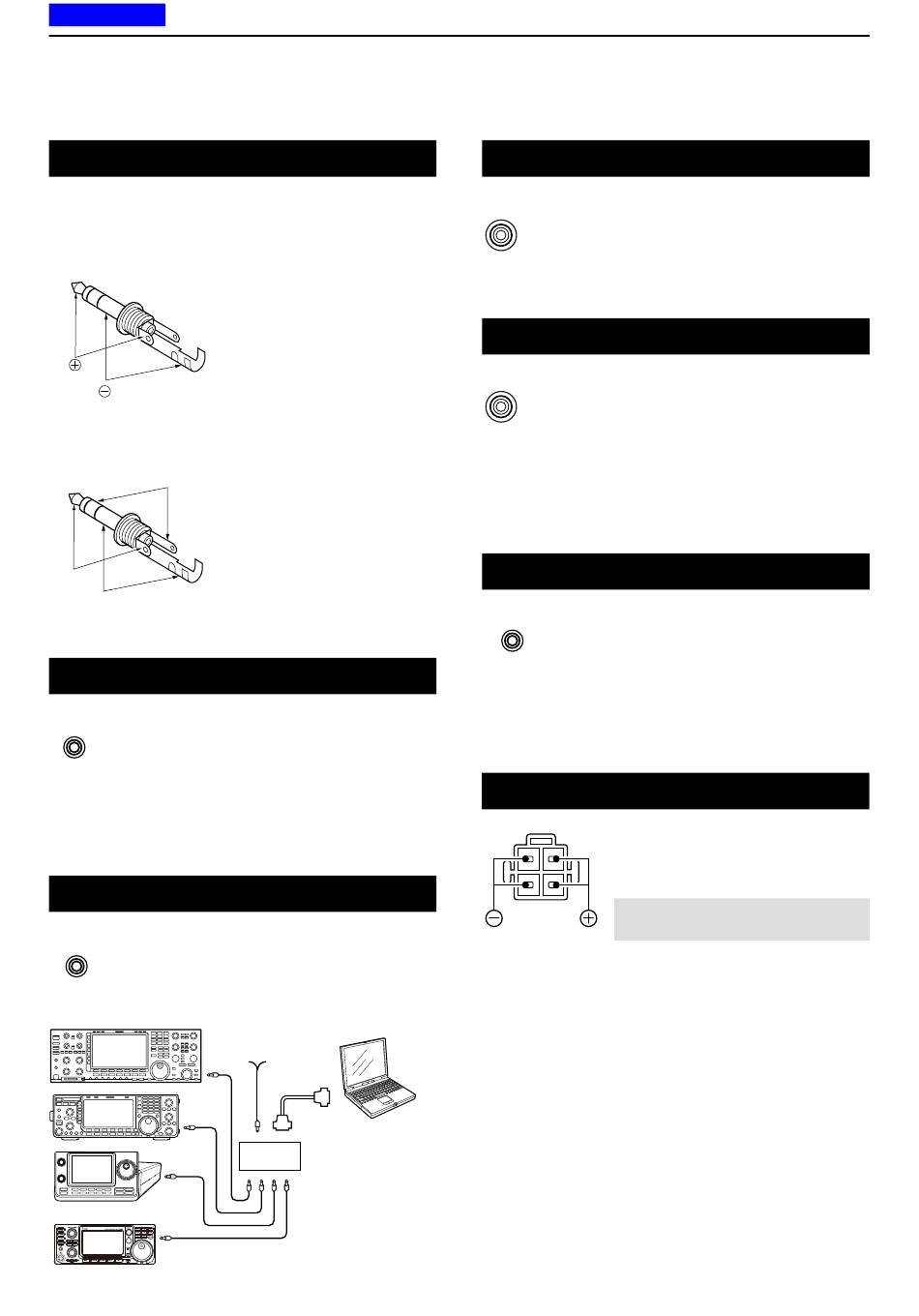

CONNECTOR INFORMATION
KEY jack
Connects to a CW straight key or a paddle:
6.35 mm (¼ in) (d)
When connecting a CW straight key.
When connecting a CW paddle and using the internal
electronic keyer.
dash
dot
com
EXT-SP jack
EXT-SP Connects to an external speaker:
3.5 mm (⅛ in) (d)
• Output impedance: 4 ~ 8 Ω
• Output level:
REMOTE jack
REMOTE Used for computer control and transceive
operation: 3.5 mm (⅛ in) (d)
The optional CT-17 is required when
connecting a PC to [REMOTE].
IC-7300
mini-plug cable
More than 2.5 W at
10% distortion into an
8 Ω load.
9–15 V DC
Cable
PC
( RS-232C
type)
ct-17
ALC jack
ALC Connects to the ALC output jack of a non-
Icom linear amplifier. (RCA Plug)
• Control voltage: –4 ~ 0 V
SEND jack
SEND
The terminal goes low when the transceiver
transmits. (RCA Plug)
This terminal is used to control an external
non-Icom linear amplifier.
T/R control voltage and current must be
less than 16 V DC and 0.5 A.
PHONES jack
Connects to standard stereo headphones:
PHONES
3.5 mm (⅛ in) (d)
• Output impedance: 8 ~ 16 Ω
• Output level:
DC power socket
Accepts the regulated DC power
for 13.8 V DC ±15% through the
supplied DC power cable.
Rear panel view
18-4
More than 5 mW into
an 8 Ω load.
RWARNING! NEVER reverse the
DC power cable polarity.
