ICOM – IC7300 – QUICK START OPERATING GUIDE
By K7HCP

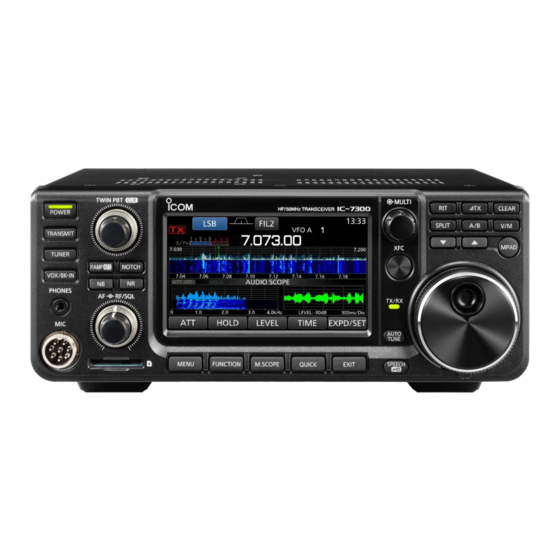

The ICOM IC-7300 is an HF + 6 meter, multi-mode, self-contained Software
Defined Radio (SDR) transceiver with knobs, buttons and a touch screen. It also
has a real-time spectrum display with pan adapter and water fall displays.
It stands alone and does not require attachment to a computer to function like
most SDR radios in the past.
However to operate this radio using digital mode computer software such as
WSJT-X (FT8) or DigiPan (PSK31) all that is required is a single USB cable with NO
other digital interface hardware required such as sound card interface device.
Advertisement
Related Manuals for Icom IC7300
Summary of Contents for Icom IC7300

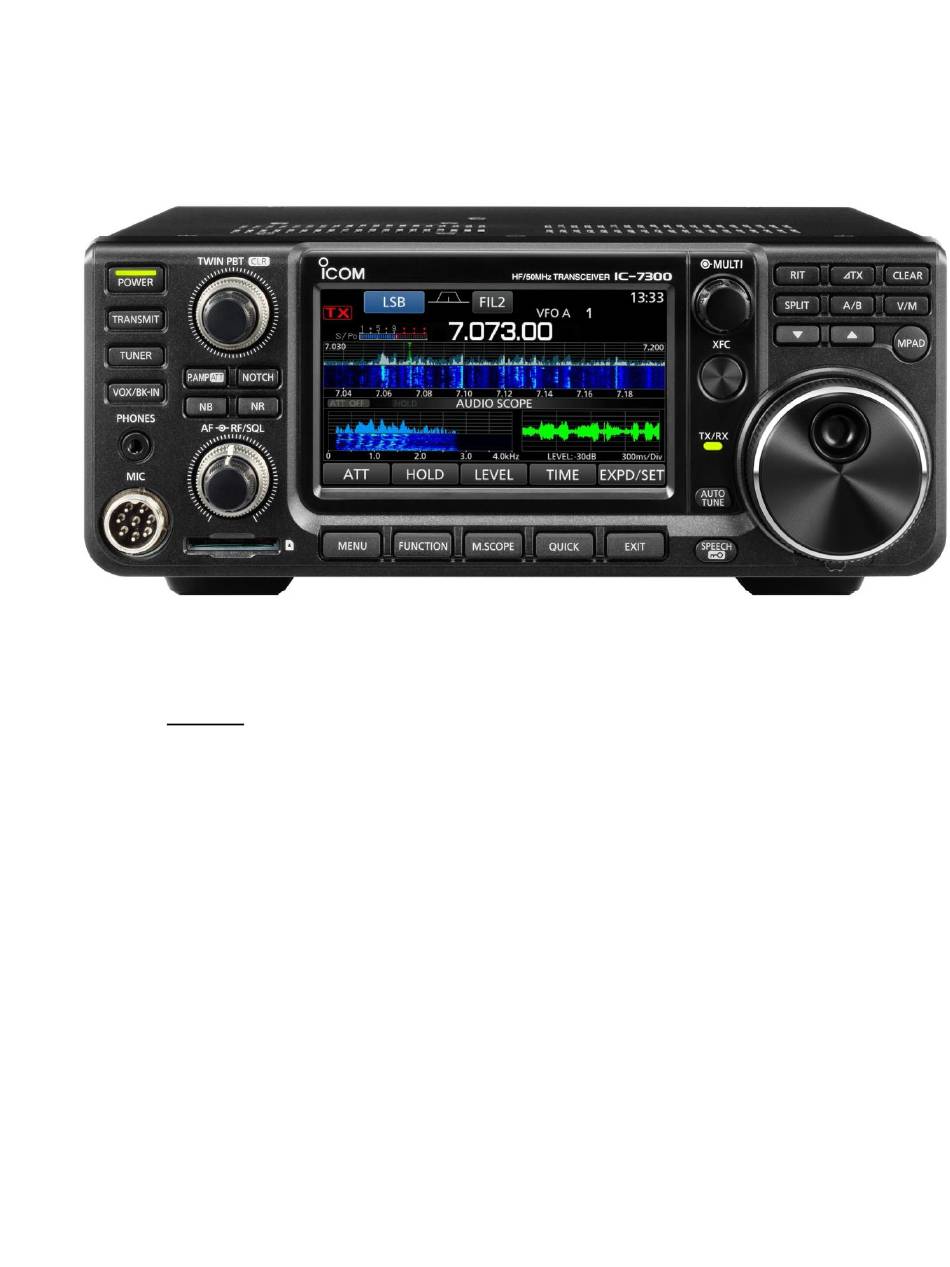

- Page 1 ICOM – IC7300 – QUICK START OPERATING GUIDE By K7HCP The ICOM IC-7300 is an HF + 6 meter, multi-mode, self-contained Software Defined Radio (SDR) transceiver with knobs, buttons and a touch screen. It also has a real-time spectrum display with pan adapter and water fall displays.
- Page 2 GETTING STARTED: Press the POWER button Turn the AF gain to 9 o-clock Turn the RF gain/Sql to 12 o-clock Turn the MAIN DIAL (the big knob) to change frequency To change Bands: Touch the MHz frequency display area of the touch screen (touch the “7” of 7.073) To change Mode: Touch the Mode area displayed on the touch screen (touch the “LSB”) To change Filters:...
