Edp; Table 19 X82 - Edp Pinout Description - Congatec COM Express conga-MEVAL Manual

5.6.2

eDP

The conga-MEVAL provides eDP interface on connector X82. The connector supplies 3.3 V or 5 V to eDP panels. Use jumper X122 to select the
eDP panel power.
The connector also supplies 5 V or 12 V to backlight inverter (maximum output current of 1 A). Use jumper X34 to select eDP backlight power.
For eDP functionality on X82, set jumper X87 to position 1-2.

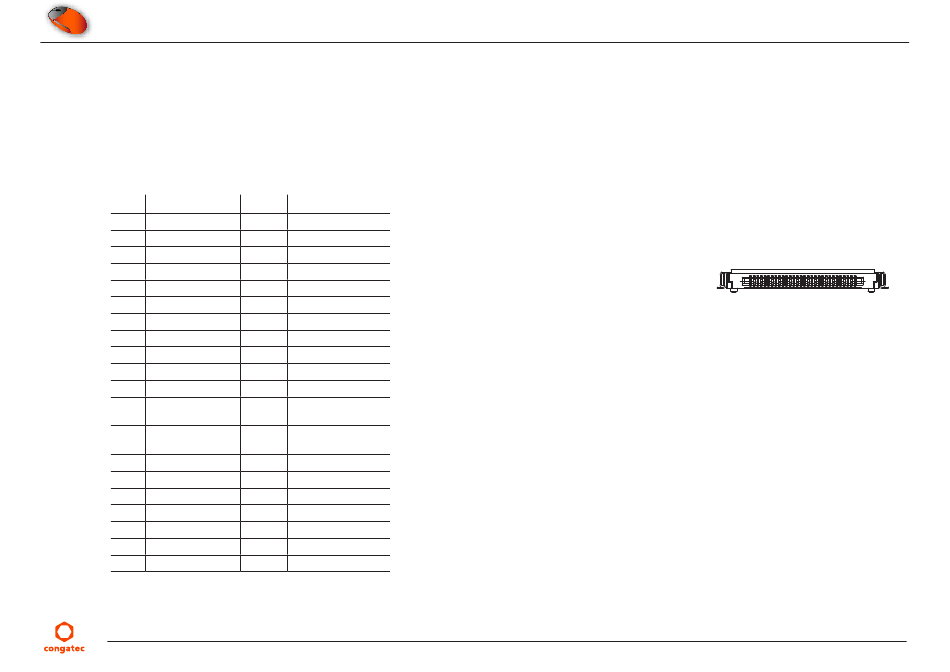

Table 19 X82 - eDP Pinout Description
Pin Signal
1 N.C.
2 GND
3 eDP_TX3-
4 eDP_TX3+
5 GND
6 eDP_TX2-
7 eDP_TX2+
8 GND
9 eDP_TX1-
10 eDP_TX1+
11 GND
12 eDP_TX0-
13 eDP_TX0+
14 GND
15 eDP]_AUX+
16 eDP_AUX-
17 GND
18 PANEL_PWR
19 PANEL_PWR
20 PANEL_PWR
Copyright © 2022 congatec GmbH
Pin Signal
21 PANEL_PWR
22 N.C.
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD
28 GND
29 GND
30 GND
31 GND
32 eDP_LVDS_BKLT_
EN
33 eDP_LVDS_BKLT_
CTRL
34 N.C.
35 N.C.
36 BKLT_PWR
37 BKLT_PWR
38 BKLT_PWR
39 BKLT_PWR
40 N.C.
CET0m10
X82
