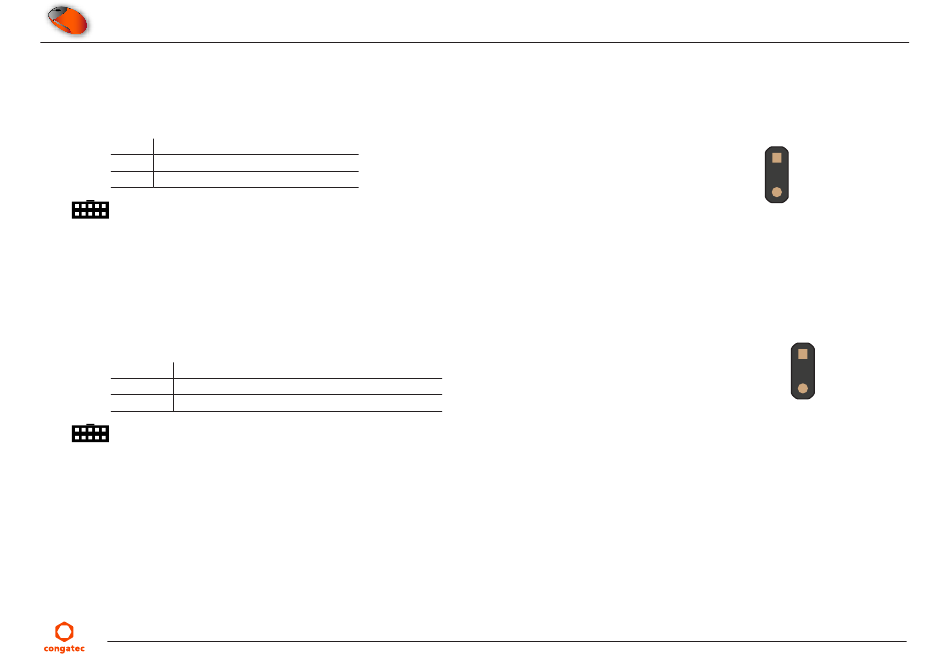

6.5

External Power LED

The conga-MEVAL provides pin header X54 for connecting external power LED.
Table 58 X54 - External Power LED
Pin Description
1 Anode (+5 V runtime, 470 ohm resistor)
2 Catnode (ground)
Connector Type
X54: 2-pin, 2.54 mm female pin header
6.6

Wireless Disable

The conga-MEVAL provides jumper header X103 for switching the mini PCIe wireless device on or off.
Table 59 X103 - Mini PCIe Wireless Disable Signal
Jumper Configuration
1-2 Disable mini PCIe wireless communication
N.C Enable mini PCIe wireless communication (default)
Connector Type
X103: 2.54 mm grid jumper header
Copyright © 2022 congatec GmbH CET0m10
X54
1
2
X103
1
2
