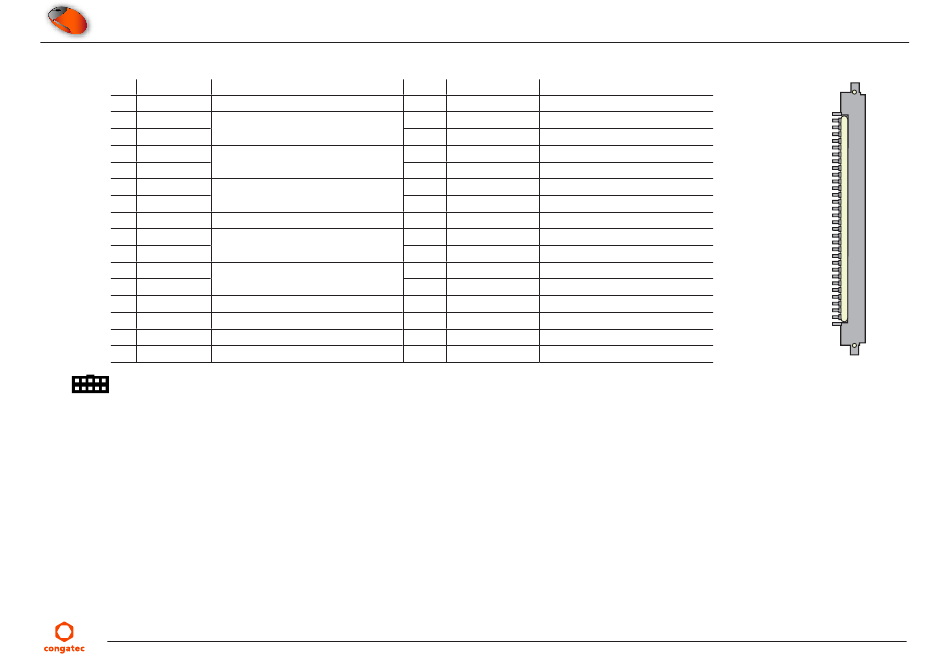

Table 25 CN6 - LVDS Connector (Bottom side)
Pin Signal Description
1 GND Ground
2 LVDS_A0- LVDS Channel A differential data pair 0
3 LVDS_A0+
4 LVDS_A1- LVDS Channel A differential data pair 1
5 LVDS_A1+
6 LVDS_A2- LVDS Channel A differential data pair 2
7 LVDS_A2+
8 GND Ground
9 LVDS_A_CLK- LVDS Channel A differential clock pair
10 LVDS_A_CLK+
11 LVDS_A3- LVDS Channel A differential data pair 3
12 LVDS_A3+
13 N.C Not connected
14 N.C Not connected
15 GND Ground
16 N.C Not connected
Connector Type
X87: 2.54 mm grid jumper
X65: 34-pin, 2 mm female grid
CN6: JILI30
Copyright © 2022 congatec GmbH
Pin Signal Description
17 N.C Not connected
18 GND Ground
19 N.C Not connected
20 N.C Not connected
21 N.C Not connected
22 N.C Not connected
23 N.C Not connected
24 N.C Not connected
25 GND Ground
26 LVDS_I2C_DAT I²C data line for LVDS display
27 LVDS_VDD_EN LVDS panel power enable
28 LVDS_I2C_CLK I²C clock output for LVDS display
29 VDD_LCD LCD power supply
30 VDD_LCD LCD power supply
31 VDD_LCD LCD power supply
32 GND Ground
CET0m10
CN6
