5.10.1

Audio Jacks

The conga-MEVAL supports the audio outputs described in the table below.

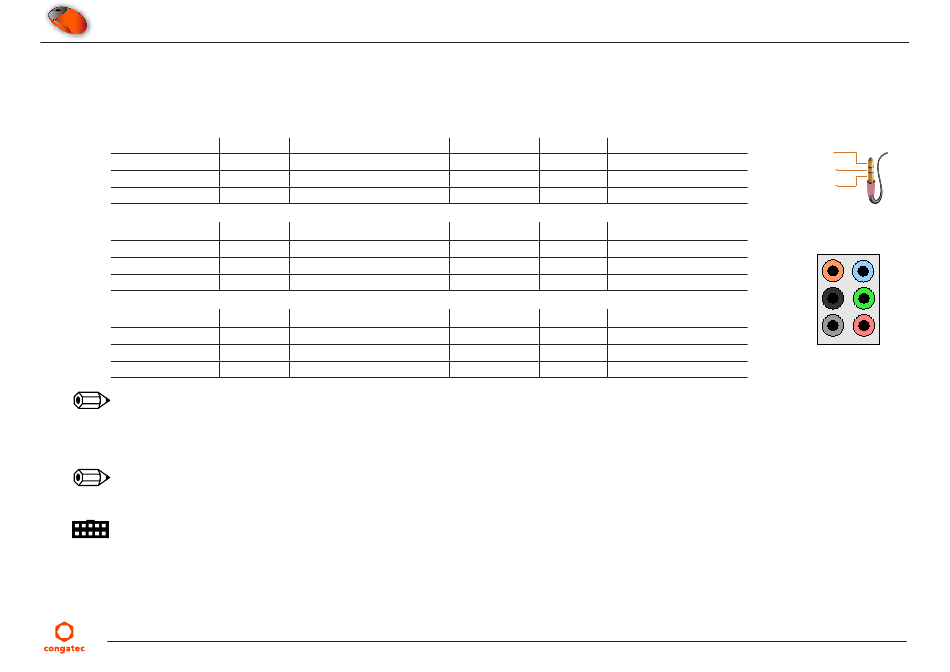

Table 35 CN2 Pinout Description
Jack 1 (Orange) 1
Tip
Ring
Sleeve
Jack 2 (Black)
Tip
Ring
Sleeve
Jack 3 (Grey)
Tip
Ring
Sleeve
Note
1. The optional orange jack is not supported by default (assembly option)
Hardware revision C.x and earlier do not support microphone input on jack 6 (pink)
2.
Note
The Windows OS driver is available in the product section (under accessories) of the congatec website at www.congatec.com.
Connector Type
CN2: Six 3-pin, 3.5 mm audio jacks
Copyright © 2022 congatec GmbH
Signal Description
MIC_L Microphone - left channel
MIC_Bias Microphone bias voltage
A_GND Analog ground
Signal Description
LINEOUT_L2 Line output 2 - left channel
LINEOUT_R2 Line output 2 - right channel
A_GND Analog ground
Signal Description
HPOUT_L Headphone output - left channel
HPOUT_R Headphone utput - right channel
HPREF Headphone ground reference
Jack 4 (Blue) Signal Description
Tip LINEIN_L Line input 1 left
Ring LINEIN_R Line Input 1 right
Sleeve A_GND Analog ground
Jack 5 (Lime) Signal Description
Tip LINEOUT_L1 Line output 1 - left channel
Ring LINEOUT_R1 Line output 1 - right channel
Sleeve A_GND Analog ground
Jack 6 (Pink) Signal Description
2
Tip MIC_L Microphone - left channel
Ring MIC_R Microphone - right channel
Sleeve A_GND Analog ground
CET0m10
Jack Pins
Tip
Ring
Sleeve
CN2
1 4
2 5
3 6
