5.4.1

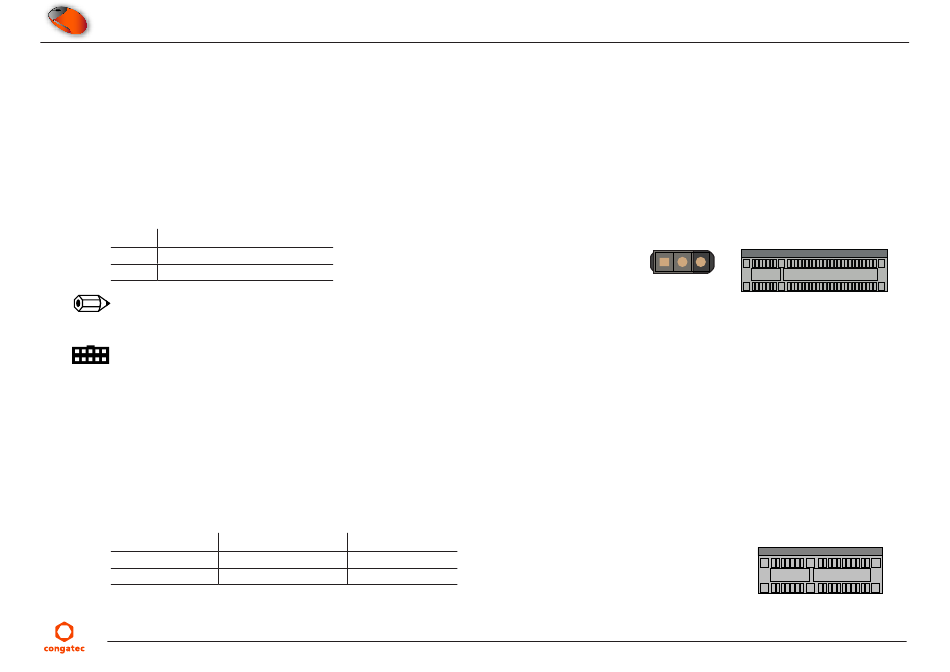

PCIe x4 Slot

The conga-MEVAL provides a standard PCIe x4 slot connector X74 (Slot 0). This slot, which is routed to the module's PCIe lanes 0–3, shares:
• PCIe lane 1 with connector X8 (Slot 1)
• PCIe lane 2 with connector X15 (mPCIe slot)
• PCIe lane 3 with connector X84 (Slot 2)
PCIe Slot 0 supports one PCIe lane (x1 link) by default. To support x4 link operation, set jumper X75 as described in the table below:
Table 14 X75 - PCIe x4 Slot Configuration
Pin Description
1-2 x1 PCIe link (default)
2-3 x4 PCIe link
Note
The COM Express module must support the selected PCIe configuration.
Connector Type
X74: PCIe card
X75: 2.54 mm grid jumper
5.4.2

PCIe x1 Slot

The conga-MEVAL provides two standard PCIe x1 slots. The table below shows how the signals are routed to the connectors:
Table 15 PCIe x1 Lane Routing
Slot Number
Slot 1
Slot 2
Copyright © 2022 congatec GmbH
PCIe Lane Connector
PCIe 1 X8
PCIe 3 X84
X75
1 2
CET0m10
X74
3
X8, X84
