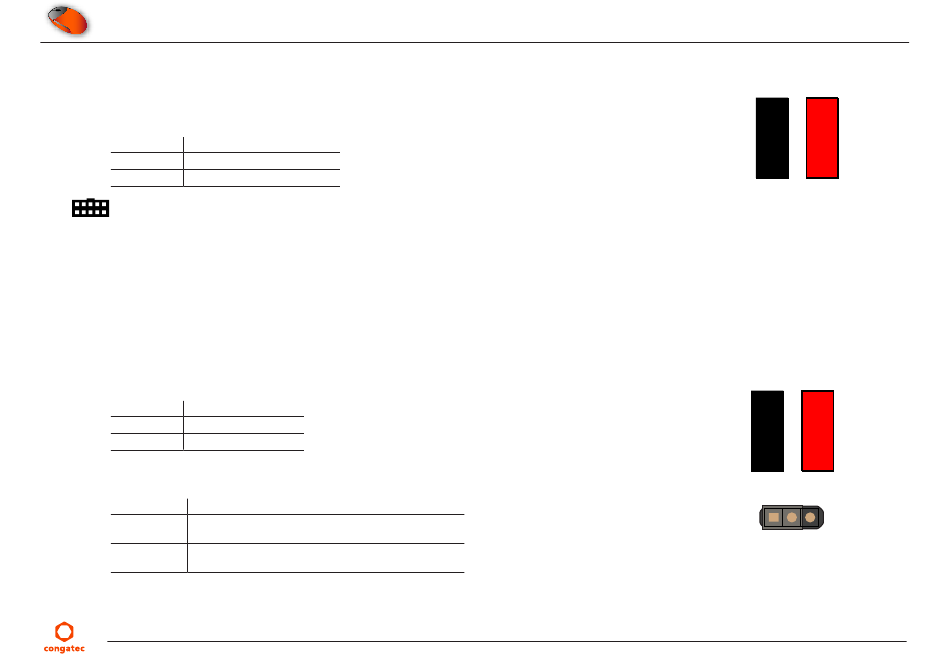

DC Banana Jack

The conga-MEVAL provides M22 and M23 for 12 V DC power supply.
Table 8 M22/M23 - DC Banana Jack
Connector Description
M22 Ground
M23 +12 VDC (11,4 V – 12,6 V)
Connector Type
M22/M23: 4 mm diameter banana plug
5.2.3

Optional DC Banana Jack

The conga_MEVAL offers M29 and M30 optionally for supplying separate variable power to the module. The input voltage varies between
4.75 V and 20 V.
Jumper X76 controls the source of the COM Express module's input voltage when using the optional DC banana jack.
Table 9 M29/M30 - Optional DC Banana Jack
Connector Description
M29 Ground
M30 +4.75 - 20 V
Table 10 X76 - Voltage Regulator Control
Pin Description
1-2 Force COM Express module to run on the on-carrier 12 V
supply (default)
2-3 Force COM Express module to run on external 4.75 - 20 V
supply
