5.6.3

LVDS

The conga-MEVAL provides LVDS connectors CN6 and X65. Connector CN6 supplies 3.3 V or 5 V LVDS panel power. The power/backlight
connector X35 supplies 5 V or 12 V backlight power (maximum output current of 1 A) to CN6 and X65, as well as 3.3 V or 5 V panel power to X65.
Use jumper X33 to select the LVDS panel power and jumper X34 to select the LVDS backlight power. For LVDS functionality on CN6 or X65,
set jumper X87 to position 2-3.

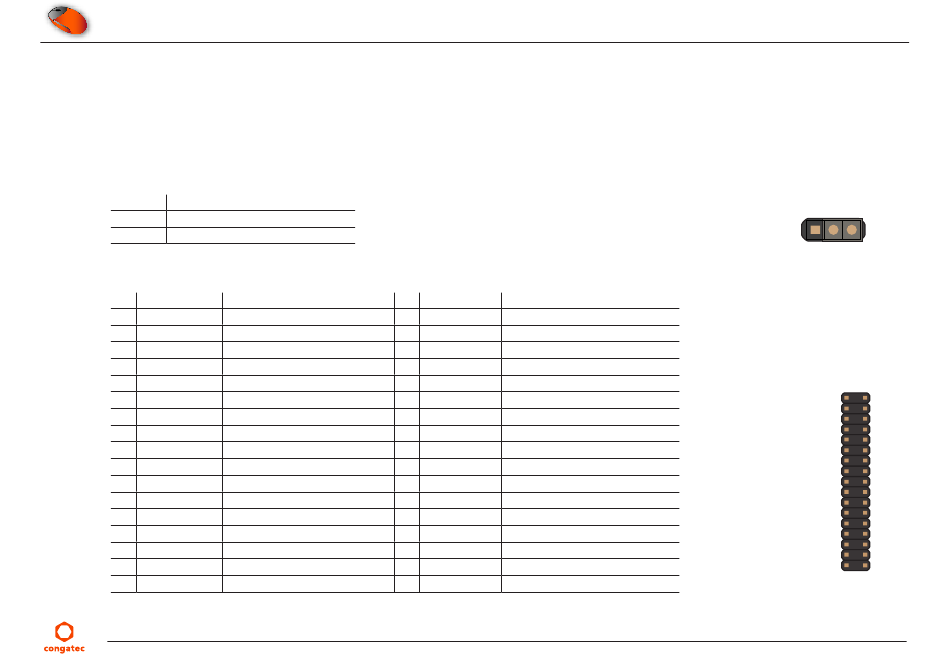

Table 23 X87 - eDP/LVDS Selection
Pin Configuration
1-2 Select eDP
2-3 Select LVDS (default)
Table 24 X65 - LVDS Connector (Top side)
Pin Signal
1 LVDS_I2C_DAT
3 N.C
5 GND
7 LVDS_A0+
9 LVDS_A1-
11 LVDS_BKLT_EN
13 LVDS_A2-
15 LVDS_A_CK-
17 N.C
19 LVDS_A3-
21 N.C
23 GND
25 N.C
27 N.C
29 GND
31 N.C
33 N.C
Copyright © 2022 congatec GmbH
Description Pin Signal
I²C data line for LVDS display 2
Not Connected 4
Power Ground 6
LVDS Channel A differential pairs 8
LVDS Channel A differential pairs 10
LVDS panel backlight enable 12
LVDS Channel A differential pairs 14
LVDS Channel A differential clock 16
Not Connected 18
LVDS Channel A differential pairs 20
Not Connected 22
Power Ground 24
Not Connected 26
Not Connected 28
Power Ground 30
Not Connected 32
Not Connected 34
Description
LVDS_I2C_CK I²C clock output for LVDS display
N.C Not Connected
LVDS_A0- LVDS Channel A differential pairs
LVDS_VDD_EN LVDS panel power enable
LVDS_A1+ LVDS Channel A differential pairs
LVDS_A2+ LVDS Channel A differential pairs
N.C. Not Connected
LVDS_A_CK+ LVDS Channel A differential clock
LVDS_A3+ LVDS Channel A differential pairs
GND Ground
N.C Not Connected
N.C Not Connected
GND Power Ground
N.C Not Connected
N.C Not Connected
N.C Not Connected
N.C Not Connected
CET0m10
X87
1 2 3
X65
