eDP Connector

The conga-IA5 provides an eDP connector (X29). In order to use it, change the "Active LFP Configuration" in the BIOS setup menu to "eDP".

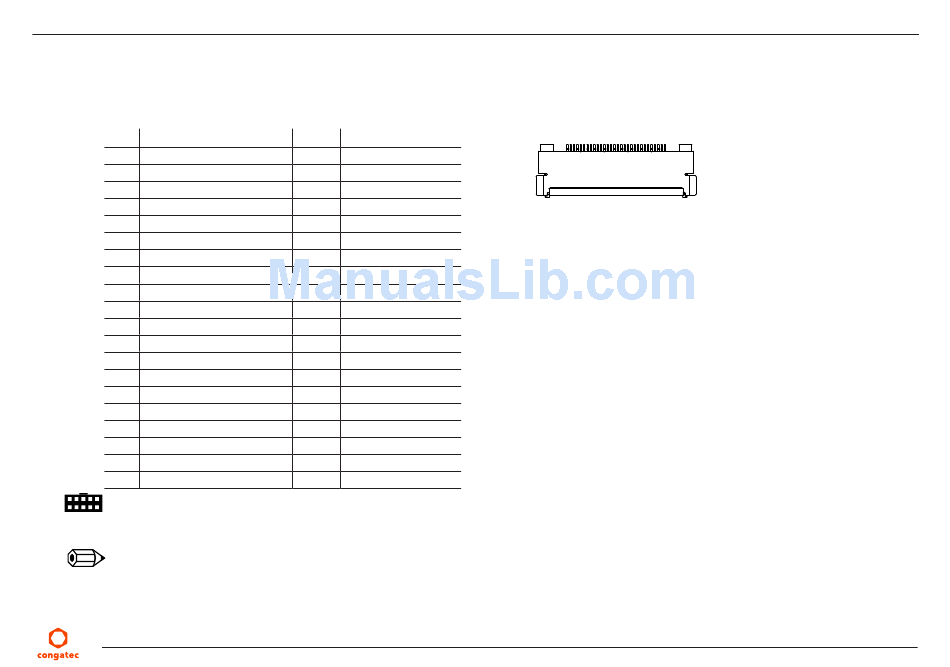

Table 33 X29 Pinout Description
Pin Signal
1 N.C
2 GND
3 eDP_TX3-
4 eDP_TX3+
5 GND
6 eDP_TX2-
7 eDP_TX2+
8 GND
9 eDP_TX1-
10 eDP_TX1+
11 GND
12 eDP_TX0-
13 eDP_TX0+
14 GND
15 eDP_AUX+
16 eDP_AUX-
17 GND
18 VCC_LCD
19 VCC_LCD
20 VCC_LCD
Connector Type
X29: 40 pins, 0.5mm pitch, (ACES 50203-04001-001)
Note
congatec offers cables and adapter for the eDP interface (see section 1.2.2 "Optional Accessories/Cables"). For more information, contact
the congatec technical solution department.
Copyright © 2017 congatec AG
Pin Signal
21 VCC_LCD
22 N.C
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD
28 GND
29 GND
30 GND
31 GND
32 eDP_LVDS_BKLT_EN
33 eDP_LVDS_BKLT_CTRL
34 N.C
35 N.C
36 N.C
37 BKLT_PWR
38 BKLT_PWR
39 BKLT_PWR
40 N.C
