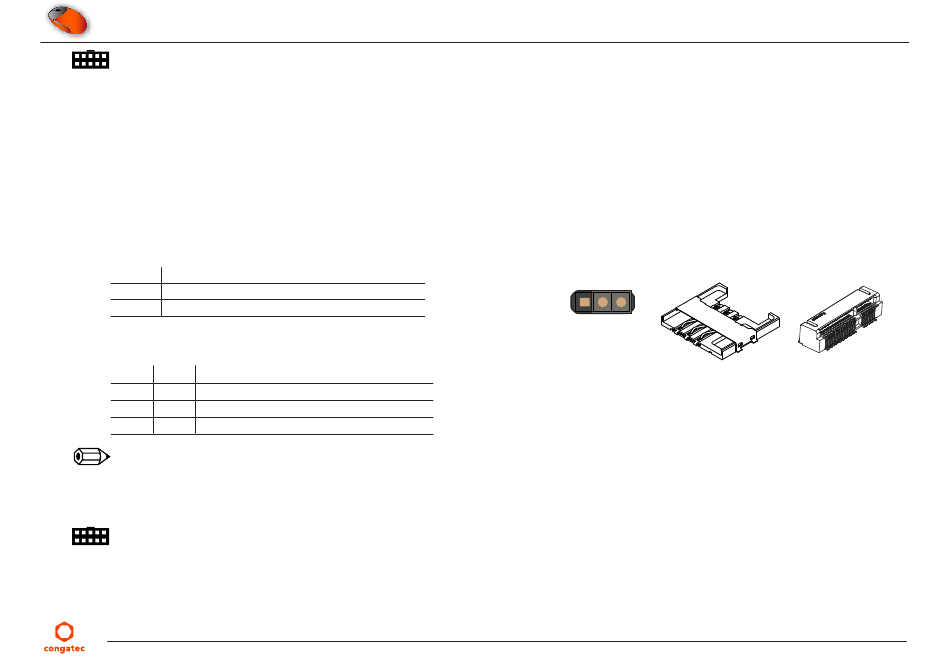

Mini PCIe Socket

The conga-MEVAL provides a standard mini PCIe socket X15. The module's PCIe lane 2 and USB port 5 signals are routed to this socket. This
socket shares the USB port 5 signals with the lower slot of USB connector X85. Use jumper X107 to select how the USB port 5 is routed.
The LEDs D4–D6 indicate activity of the card attached to the socket. The UIM interface of the mini PCIe socket is connected to a micro-SIM
card slot (X88).
Table 16 X107 - USB Port 5 Routing
Pin Description
1-2 USB port 5 auto switching (mPCIe card detection)
2-3 USB port 5 to mPCIe connector (default)
Table 17 D4-D6 - Mini PCIe LEDs Description
LED Color Description
D4 Green Wireless Wide Area Network
D5 Green Wireless Local Area Network
D6 Green Wireless Personal Area Network
Note
1. Set jumper X107 to postion 1-2 to route USB port 5 to USB connector X85.
2. X15 supports half and full card sizes
Connector Type
X15: mPCIe card
X107: 2.54 mm grid jumper
