Table 43 X105 - Super I/O Activation
Pin Configuration
1-2 Enable Super I/O (default)
2-3 Disable Super I/O
Note
For Super I/O or TPM functionality, the COM Express module must support the LPC signals above. Refer to the module's user's guide for
information about supported features.
Connector Type
CN7: 2.54 mm, 2 x 7-pin female header (board to board connection)
X104, X105: 2.54 mm grid jumper
5.16

Super I/O Configuration

The conga-MEVAL provides jumpers X78 and X79 for configuring the Super I/O index base address.
Table 44 X78 - SIO Upper Byte
Jumper Configuration
1-2 Upper byte = 00xx (default)
2-3 Upper byte = 16xx
Table 45 X79 - SIO Lower Byte
Jumper Configuration
1-2 Lower byte = xx4E
2-3 Lower byte = xx2E (default)
Connector Type
X78, X79: 2.54 mm grid jumper
Copyright © 2022 congatec GmbH CET0m10

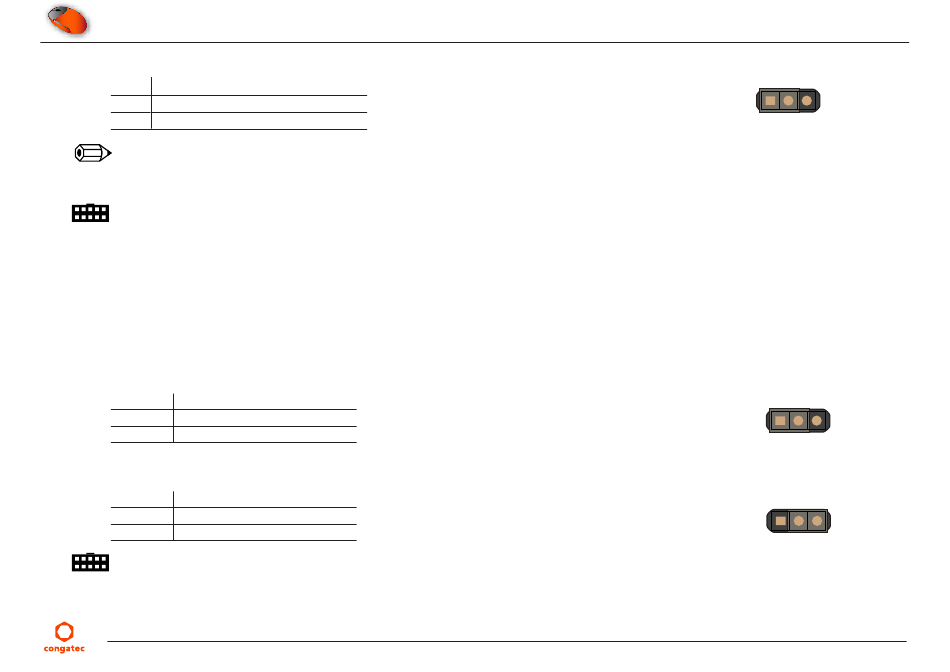

X105
1 2 3
X78
1 2 3
X79
1 2 3
