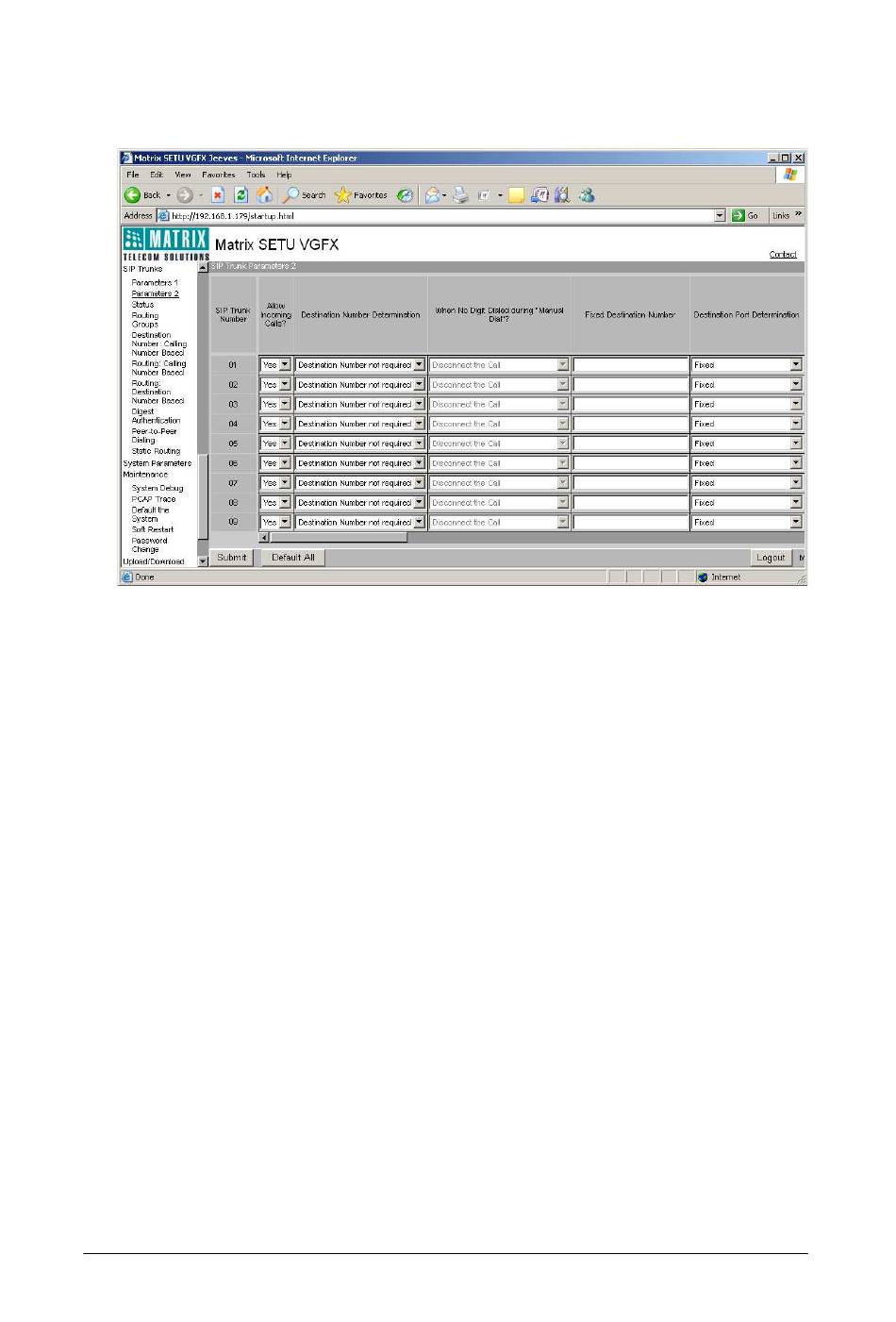

• If Destination Port Determination Method selected is "Fixed" then program
following parameters of Routing Groups (1, 2 and 3):
• Port/Group Type: Select desired port or group for routing the call originated
on SIP Trunk in this field. You can choose one of the following options:
•
•
•
•
•
•
•
•
•
Default = FXS Port
• Port/Group Number: Assign Port Number, if Port Type is selected in Port/
Group Type field. Assign Group Number, if Group Type is selected in Port
Group Type field. You may select from the following options:
•
•
•
•
•
•
Default = FXS Port number '1'
64
None
FXS Port
SIP Trunk
FXO Port
Mobile Port
FXS Group
FXO Group
SIP Group
Mobile Group
For FXS and FXO Port: 1-2
For SIP Trunk: 1-9
For Mobile Port: 1-4
For FXS and FXO Group: 1-8
For SIP Group: 1-9
For Mobile Group: 1-8
