  • Page 1 SIMADO GFX44 Quick Start...
  • Page 3 SIMADO GFX44 Multi-port Mobile-FXS Gateway with LCR Quick Start...
  • Page 4 Documentation Disclaimer Matrix Comsec reserves the right to change, at any time, without prior notice, the product design, specifications, components, as engineering and manufacturing may warrant. This is a general documentation for all models/configurations of the product. The product may not support some of the features/facilities described in this document.

  • Page 5: Table Of Contents

    Contents Know Your SIMADO GFX44 ................1 Overview ......................1 Applications ....................... 3 Installing SIMADO GFX44 ................4 Before You Start ....................4 Connecting SIMADO GFX44 ................5 Power On SIMADO GFX44 ................6 Configuring SIMADO GFX44 ................. 8 Test Calls ......................13...

  • Page 6: Know Your Simado Gfx44

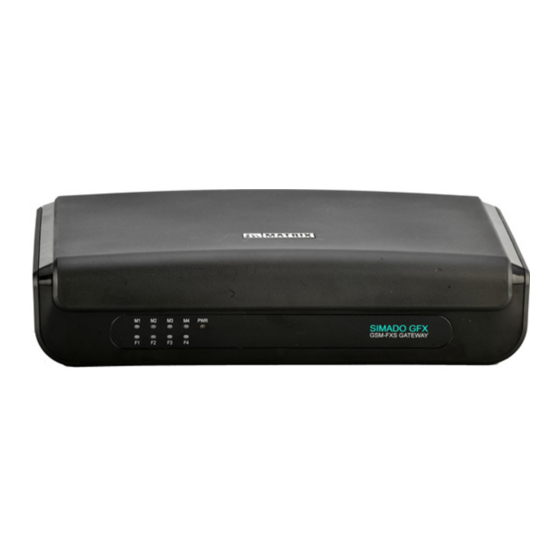

    SIMADO GFX44 is a compact Mobile-FXS Gateway to interface Mobile and PSTN networks. It offers 100 percent non-blocking, universal routing on all its ports. With the Least Cost Routing (LCR) feature of SIMADO GFX44, you can have your outgoing calls routed through the most cost effective port.
  • Page 7 LEDs SIMADO GFX44 has 9 LEDs, as illustrated below, for indication of port status and power. • Four LEDs for FXS Ports, labeled F1, F2, F3 and F4. • Four LEDs for Mobile Ports, labeled M1, M2, M3 and M4.

  • Page 8: Applications

    SIMADO GFX44 finds its applications in corporate offices, factories, call centers, hotels and such other establishments. SIMADO GFX44 can be used as a stand-alone device to make calls over GSM/UMTS networks. It can also be interfaced with a PBX as a gateway between GSM/UMTS and PSTN network for cost savings.

  • Page 9: Installing Simado Gfx44

    • Wall Mounting Template • A Warranty Card set • SIMADO GFX44 CD containing the System Manual, Quick Start and Jeeves Software • SIMADO GFX44 Quick Start (printed copy) If any of the above listed items is missing or damaged, please contact the source from where you have purchased the system.

  • Page 10: Connecting Simado Gfx44

    FXS3 FXS4 • When installing SIMADO GFX44, you will need to open the top cover and handle the internal parts. You must take appropriate electrostatic discharge prevention measures to prevent damage to the modules you handle. You may wear an electrostatic discharge preventive wrist strap or belt and use a grounding mat.

  • Page 11: Power On Simado Gfx44

    • Insert the SIM Card in the SIM Holder of SIMADO GFX44 with the contact side facing down. The SIM Holders are located on the GSM/UMTS modules as illustrated in the diagram below. GSM/UMTS Module GSM/UMTS Module Mobile 1 Mobile 2...
  • Page 12 68 ms ON-68 ms Off Speech Green Continuous ON Call Minutes* (Free 1000 ms ON-2000 ms Off minutes utilized) Applicable for Mobile Ports only, when Mobile Port is idle. Refer Call Minutes topic in the System Manual for details. Matrix SIMADO GFX44 Quick Start...

  • Page 13: Configuring Simado Gfx44

    SIMADO GFX44 enables you to configure the system through the windows based software, Jeeves. To configure the system using Jeeves, follow the steps given below: • Insert the 'Matrix SIMADO GFX44' CD provided to you along with the product in the CD Drive of your computer. It is an auto-run CD.
  • Page 14 • Click Start  Programs  Matrix  SIMADO GFX44 Jeeves VxRy. SIMADO GFX44 Jeeves Home page will open. There are three options on the home page of Jeeves. • File: In File, click New to open Main Menu of Jeeves. To open the configuration saved on your computer, click Open.
  • Page 15 Spanish, French, German, Portuguese and Russian. Select the language in which you want the Jeeves content to be displayed. • Help: In Help, you will be able to access, SIMADO GFX44 System Manual, SIMADO GFX44 Quick Start, and information About Jeeves.
  • Page 16 • Click the Login button. The Login to SIMADO GFX44 window opens. • In COM Port, select the COM Port on the Computer to which SIMADO GFX44 is connected. In the SE Password field, enter the default System Engineer (SE) password 1234.
  • Page 17 • The routing type for the Mobile Port must be set as either Answer-Fixed or Answer-Number Based. By default, it is set as Answer-Fixed. • The SIM Card installed in SIMADO GFX44 must be registered with the network. You can check this through LED indication.

  • Page 18: Test Calls

    Test Calls Making a Call • Lift the handset of the telephone instrument connected to the FXS Port of SIMADO GFX44. You will get the dial tone. • Dial the desired number. You will hear the RBT. • Talk when the called party answers the call.
  • Page 19 Matrix SIMADO GFX44 Quick Start...
  • Page 20 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. Ph:+91 265 2630555 E-mail: Support@MatrixComSec.com www.MatrixTeleSol.com...
