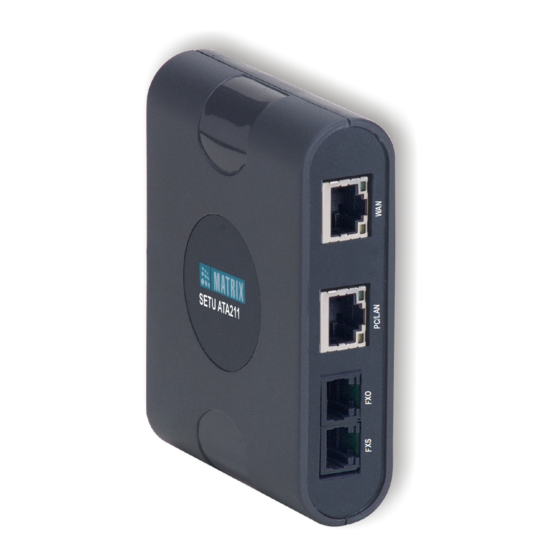

Matrix SETU ATA211 SIP-FXS-FXO System Manual
  1. Manuals
  2. Brands
  3. Matrix Manuals
  4. Gateway
  5. SETU ATA211 SIP-FXS-FXO
  6. System manual

Matrix SETU ATA211 SIP-FXS-FXO System Manual

Sip-fxs-fxo gateway
Hide thumbs Also See for SETU ATA211 SIP-FXS-FXO:
Table of Contents

Advertisement

Quick Links

SETU ATA211
System Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SETU ATA211 SIP-FXS-FXO and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix SETU ATA211 SIP-FXS-FXO

Summary of Contents for Matrix SETU ATA211 SIP-FXS-FXO

  • Page 1 SETU ATA211 System Manual...
  • Page 3 SETU ATA211 SIP-FXS-FXO Gateway System Manual...
  • Page 4 Neither Matrix Telecom nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the purchaser or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Telecom's operating and maintenance instructions.

  • Page 5: Table Of Contents

    Contents Introduction..............................1 Welcome! ................................1 About this System Manual ..........................1 How to Read this System Manual ........................2 Knowing SETU ATA211 ..........................5 The Overview ..............................5 Programming Options ............................8 Applications of SETU ATA211 .......................... 13 Getting Started .............................. 15 Protecting SETU ATA211 ..........................
  • Page 6 Supplementary Services ..........................121 System Parameters ............................123 Time Settings ..............................130 User Password ..............................133 WAN Port ................................ 134 Software Upgrade ............................143 Reinstate the Default Settings ........................145 Appendix ..............................147 Frequently Ask Questions (FAQs) ........................147 Acronyms ................................ 150 Features at a Glance ............................

  • Page 7: Introduction

    Phone Adaptor in as lucid manner as possible. Organization of this document This System Manual contains following topics: Introduction: Gives information about this system manual. Knowing SETU ATA211: Help you to know your SETU ATA211. Matrix SETU ATA211 V1 System Manual...

  • Page 8: How To Read This System Manual

    User: A person who uses SETU ATA211. User has limited access to the system • Caller/Calling party: A person who makes calls. • Callee/Called party: A person who receives calls. • Remote user/Remote party/Remote end: The person with whom the user interacts. Matrix SETU ATA211 V1 System Manual...
  • Page 9 Using this manual, you will be able to install, operate and make optimum use of SETU ATA211. In case you face any technical difficulties, you are advised to contact our dealers for help. All Matrix dealers are properly trained and ready to give you support whenever needed.
  • Page 10 Matrix SETU ATA211 V1 System Manual...

  • Page 11: Knowing Setu Ata211

    ATA211 also offers flexibility to make VoIP calls over the Internet and browse the Internet simultaneously using inbuilt router. ATA211 has 1 WAN port, 1 LAN port, 1 FXS port, 1 FXO port, a Power Socket and 5 LEDs. Matrix SETU ATA211 V1 System Manual...

  • Page 12: Power Socket

    Blinks slow 500ms ON, Indicates that FXS port is Ringing for IC Call or Number is being 500ms OFF dialed for OG call (After end of dialing). Continuously OFF Indicates that FXS port is in ON-Hook. Matrix SETU ATA211 V1 System Manual...
  • Page 13 Account3 also for proxy calling, registration status for SIP Account3 can only be known from the 'Status page' of Web Jeeves or issuing command from SLT. Refer appendices “System Commands” for display of status using command. Matrix SETU ATA211 V1 System Manual...

  • Page 14: Programming Options

    Enter the command 33-#* to display the WAN subnet mask on SLT. Enter the command 34-#* to display the LAN subnet mask on SLT. Enter the command 35-#* to display the Gateway address on SLT. Matrix SETU ATA211 V1 System Manual...
  • Page 15 Know the IP Address and Subnet Mask of the computer by following the steps given below:    For Windows XP, Go to Control panel, Select Network Connections Network connections    Right click on 'Local Area Connection' Properties TCP/IP Connection Properties. Matrix SETU ATA211 V1 System Manual...
  • Page 16 Click on 'Submit'. The system shall reboot and user will be required to log in again using the new IP Address. Once the necessary changes are made it is advisable to restore the earlier settings of the computer while removing the computer. Matrix SETU ATA211 V1 System Manual...
  • Page 17 Once the necessary changes are made it is advisable to restore the earlier settings of the computer. Please refer “Configuring SETU ATA211” for configuration of other parameters such as SIP Accounts, FXS port etc. Matrix SETU ATA211 V1 System Manual...

  • Page 18: User Password

    User and Admin both can access the pages of Web Jeeves as mentioned in topic 'Reinstate the Default Settings' for (refer chapter “Reinstate the Default Settings”). All remaining pages are accessible only by Admin. Matrix SETU ATA211 V1 System Manual...

  • Page 19: Applications Of Setu Ata211

    IP Network ATA211 Broadband Modem/Router Proxy PSTN SOHO Application - Small Office owners use ATA211 to make low-cost calls to their overseas customers, employees, suppliers, etc. IP Network Broadband ATA211 Modem/Router Proxy PSTN Matrix SETU ATA211 V1 System Manual...
  • Page 20 Peer-to-Peer Calls Application - Corporate Offices also use ATA211 to communicate between various branch offices free of cost. Location D Location A ATA211 ATA211 Broadband Modem/Router IP Network Location C Location B Broadband Modem/Router ATA211 ATA211 Hope, now you know your SETU ATA211! Matrix SETU ATA211 V1 System Manual...

  • Page 21: Getting Started

    Unplug the system from the wall outlet and contact the qualified service personnel under the following conditions: • When the power supply cord or plug is damaged or frayed. • If liquid has been spilled into the product. • If the product has been exposed to rain or water. Matrix SETU ATA211 V1 System Manual...
  • Page 22 • If the product has been dropped or the cabinet has been damaged. • If the product exhibits a distinct change in the performance. Matrix SETU ATA211 V1 System Manual...

  • Page 23: Installing Setu Ata211

    A typical home user has an Internet connection for surfing the net. He can purchase an ATA211 to make Voice calls over the Internet. The figure given below shows a typical connection made by the home user to surf the Internet before purchasing ATA211. Computer Broadband Modem/Router Matrix SETU ATA211 V1 System Manual...
  • Page 24 Open Web Jeeves of ATA211 by entering the LAN IP address of the ATA211 in the URL field and press 'Enter'. Login as 'Admin' into the Jeeves of ATA211 using the Admin password (default 1234). You will reach the Home page. Matrix SETU ATA211 V1 System Manual...
  • Page 25 While making overseas calls they can also browse the Net simultaneously. SOHO users generally have a typical set up in their offices as shown in the figure below: Broadband Modem/Router FXS1 FXS2 PSTN FXS3 FXSn Matrix SETU ATA211 V1 System Manual...
  • Page 26 ATA211 as the 'Gateway Address' of the computer. Also, program the DNS address in the computer as provided by the ISP. Open Web Jeeves of ATA211 by entering the LAN IP address of the ATA211 in the URL field and press 'Enter'. Matrix SETU ATA211 V1 System Manual...

  • Page 27: Business Application (In Corporate Office)

    In Offices, set-up before purchasing ATA211 is generally as shown in the figure below: Broadband Modem/Router FXS1 FXS2 PSTN FXS3 FXSn How to connect? After purchasing the ATA211, Corporate users should connect ATA211 as shown in the figure below: Matrix SETU ATA211 V1 System Manual...
  • Page 28 Program the Broadband modem's or Router's LAN port IP address as Gateway Address in the WAN port parameter page. For more details, please refer topic “WAN Port” in Configuring SETU ATA211. Matrix SETU ATA211 V1 System Manual...
  • Page 29 Connect the FXS port of the ATA211 to the FXO port of the PBX used by the organization. • Connect the FXO port of ATA211 to a line from PSTN. • Power the ATA211 by connecting the Power Adaptor to the Power jack. Matrix SETU ATA211 V1 System Manual...
  • Page 30 Residential Users: Suppose a family wants to talk frequently to their relatives staying overseas. They can use Peer-to-Peer application of ATA211. They need to make following set-up and configure the ATA211 as explained below. Matrix SETU ATA211 V1 System Manual...
  • Page 31 Select 'Enable DHCP', if you want IP address, Subnet mask and Gateway address to be assigned by DHCP server automatically. • Select 'Enable Static IP', if you want to assign IP address, Subnet Mask and Gateway address manually. Configure all the fields manually if you have selected this option. Matrix SETU ATA211 V1 System Manual...
  • Page 32 Click on 'WAN Port' link and configure required parameters in the respective fields as mentioned below: • Select 'Enable DHCP', if you want IP address, Subnet mask and Gateway address to be assigned by DHCP server automatically. Matrix SETU ATA211 V1 System Manual...
  • Page 33 Program the parameter 'SIP Id' for this SIP Account as '*' (for configuring it as P2P Account). • On 'SIP Accounts' configure the parameter 'Source Port IP Address' as 'Use IP Address fetched using STUN'. Program following parameters (for Location A): Matrix SETU ATA211 V1 System Manual...
  • Page 34 Click on 'Peer to Peer Call Table'. Program the number (say, 3001) assigned to the FXS port of the ATA211 located at Location B. • If the users are comfortable dialing IP addresses directly after lifting the handset, peer-to-peer table need not be programmed. Matrix SETU ATA211 V1 System Manual...
  • Page 35 If the users are comfortable dialing IP addresses directly after lifting the handset, Peer-to-Peer table need not be programmed. If you are stuck somewhere while configuring you SETU ATA211, you may default the system as mentioned in the topic '"Reinstate the Default Settings" and start configuration process again. Matrix SETU ATA211 V1 System Manual...
  • Page 36 If your SIP account does not get registered due to some reason, ATA can route the call through alternate route of 'FXO Port'. • To achieve this, ATA needs to be configured for 'Auto PSTN Fall Back' feature. • Refer chapter “FXO Port”. Matrix SETU ATA211 V1 System Manual...

  • Page 37: Checking The Status

    You can check the status of any of these parameters through Jeeves as mentioned below: Open the Web Jeeves of SETU ATA211 and click on 'Status' link. (both Admin and User can access this Web page). The Web page will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 38 'y' is the revision number of the current software. Kernal Date Displays the date, when the current Kernel in the system was compiled. It will be displayed in DD-MMM-YYYY format.( Refer Note1 below Table) e.g. 14-OCT-2009 Matrix SETU ATA211 V1 System Manual...
  • Page 39 When Proxy SIP Account is enabled, not registered and 'Send REGISTER?' flag is set to 'No' • When P2P Account is enabled (irrespective of 'Send REGISTER?' flag). Refer chapter “SIP Accounts” for more details of parameter 'Send REGISTER?'. Now your SETU ATA211 is ready for use! Matrix SETU ATA211 V1 System Manual...
  • Page 40 Matrix SETU ATA211 V1 System Manual...

  • Page 41: Using Setu Ata211

    Dial the number Talk For dialing number from SIP2:    Go OFF-Hook Dial #85 Dial the number Talk For dialing number from SIP3:    Go OFF-Hook Dial #86 Dial the number Talk Matrix SETU ATA211 V1 System Manual...
  • Page 42 Should be dialed by using '*'). To avoid delay of Inter Digit Wait timer before the ATA dials the number, you can dial '#' at the end of dialing digits for the number string while making calls. Matrix SETU ATA211 V1 System Manual...

  • Page 43: Receiving Calls

    By default, call will be routed to FXS port and you will get 'ring' on the phone connected to the FXS port. For changing routing type, refer chapters “SIP Accounts” “FXO Port” Configuring SETU ATA211. Matrix SETU ATA211 V1 System Manual...

  • Page 44: Managing Calls

    If you have made the first call on IP, it is possible to make following type of second call: • PSTN Call • IP Call If you have made the first call on PSTN, it is possible to make only following type of second call: • IP Call Matrix SETU ATA211 V1 System Manual...

  • Page 45: Call Transfer

    You can transfer the PSTN call to the transfer target on IP. • You can transfer the IP call to the transfer target on PSTN • You can transfer the IP call to the transfer target on IP Matrix SETU ATA211 V1 System Manual...

  • Page 46: Call Toggle

    3-Party Conference can be converted to Call Toggle by dialing Call Toggle access code. User will be connected to one of the parties and the other party goes on hold. While initiating the conference, the ATA211 supports only G.711 (Mu-law) Vocoder. Matrix SETU ATA211 V1 System Manual...

  • Page 47: Call Waiting

    Open the Web Jeeves and click on 'Supplementary Services' link. (Both Admin and User can access this Web page) The Web page will be shown below: Call Waiting: Check the box to set/cancel the feature. By default, it is 'set'. Matrix SETU ATA211 V1 System Manual...

  • Page 48: Making New Call

    You can use access code for Disconnecting the Call, only on FXO and FXS ports. If the access code is used on FXS or FXO port for the calls made from FXS/FXO to FXO or from FXS/FXO to SIP, the call will be released and user will get error tone. Matrix SETU ATA211 V1 System Manual...

  • Page 49: Call Features

    You can set different destination numbers for CF-Busy, CF-No Reply and CF-Unconditional. This feature can be enabled/disabled through Web Jeeves as well as by issuing commands from FXS port. Using Web Jeeves Open the Web Jeeves and click on 'Supplementary Services' link. Matrix SETU ATA211 V1 System Manual...
  • Page 50 NO then the outgoing calls will be sent as Anonymous calls. By default, it is set as 'Yes' for all SIP Accounts. Please note that this feature is applicable only for SIP Calls. Matrix SETU ATA211 V1 System Manual...

  • Page 51: Dnd (Do Not Disturb)

    IC calls on FXS port will be rejected by ATA211, but OG calls can be made as usual. DND feature can be enabled/disabled through Web Jeeves as well as by issuing commands from FXS port. Ensure that this feature is allowed from Class of Service in 'FXS Port' web page. Matrix SETU ATA211 V1 System Manual...

  • Page 52: Making Call Using Auto Pstn Fall Back

    If FXO port becomes free within 45sec, the number will be out dialed on FXO port. Else the user will get error tone. This feature is applicable for FXS port only. Matrix SETU ATA211 V1 System Manual...

  • Page 53: Peer To Peer Calls

    FXO port of the PBX at each branch office as shown in the figure. The Peer-to-Peer table should be programmed at each location with the number which is to be dialed and destination IP address of the gateway at other locations, to be called. Matrix SETU ATA211 V1 System Manual...

  • Page 54: How To Program

    FXS2 FXS2 FXS3 FXS3 FXSn FXSn How to program? Open the Web Jeeves and click on the link 'Peer-to-Peer Call Table'. (Only Admin can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 55 There are some applications where user needs to dial a fixed number string before dialing the actual number. The ATA can be configured to take care for dialing the fixed number string every time when the actual number is dialed through SIP account or FXO. Matrix SETU ATA211 V1 System Manual...
  • Page 56 • However, in the real scenarios, caller only wants to dial the complete number viz. SIP-ID of ATA and called extension in one stage instead in two stages. Matrix SETU ATA211 V1 System Manual...
  • Page 57 Dialed Number List and Substitute Number List). The ATA211 will consider character '~' as Wait for Answer and character '^' as Pause when they are programmed in the Substitute number List and will provide suitable delay. Matrix SETU ATA211 V1 System Manual...
  • Page 58 (Refer chapter “SIP Accounts” to program DTMF ON Time and DTMF OFF Time for SIP and refer chapter “FXO Port” to program DTMF ON Time and DTMF OFF Time for FXO) Matrix SETU ATA211 V1 System Manual...
  • Page 59 In the above scenario, if you want some delay after call gets mature and before ATA211 sends the remaining DTMF digits, program '22~^' in Substitute Number List instead '22~' only. • Similar programming is required to be done in each ATA211 connected at other sites. Matrix SETU ATA211 V1 System Manual...

  • Page 60: Multiple Gateway Application

    Open the Web Jeeves and click on the link 'Static Routing Table'. (Only Admin can access this Webpage). The Webpage will be as shown below: • Total 5 entries can be programmed in Static Routing Table. • Each entry has three parameters viz. Destination Address, Subnet Mask and Gateway Address. Matrix SETU ATA211 V1 System Manual...
  • Page 61 24 will be routed to default gateway. • Similar programming is required in ATA211 at location B to enable calling from location B to location A. Hope, you know how to use SETU ATA211 now! Matrix SETU ATA211 V1 System Manual...
  • Page 62 Matrix SETU ATA211 V1 System Manual...

  • Page 63: Configuring Setu Ata211

    ATA211, the password has been changed. Now, if you forget the password, you will be required to default the password. This can be done by following: • Default the Admin Password using Access Code. Matrix SETU ATA211 V1 System Manual...
  • Page 64 If Admin wants to default the Admin password, using Jeeves, he can do so by clicking on the link for 'Default the ATA211'. • Refer chapter “Reinstate the Default Settings”. Relevant Topics: “User Password” “Reinstate the Default Settings” “System Parameters” Matrix SETU ATA211 V1 System Manual...

  • Page 65: Auto Configuration

    ATA supports programming of the TFTP server address manually or using the address provided by DHCP server. If you are using DHCP server in your LAN and DHCP server provides the TFTP server address, do not configure the TFTP server address manually; else Auto Configuration feature will not work. Matrix SETU ATA211 V1 System Manual...
  • Page 66 ATA as X/Y, where X is the number of files downloaded from TFTP Server and Y is the total number of configuration files supported by ATA. Refer chapter “Checking the Status” in chapter 'Getting Started'. Matrix SETU ATA211 V1 System Manual...
  • Page 67 Relevant Topics: “WAN Port” “Checking the Status” Matrix SETU ATA211 V1 System Manual...

  • Page 68: Automatic Number Translation

    Assign these List numbers to program the ANT feature in web page 'SIP Accounts' and enable 'ANT'. Thus, '001 479 29785434' will be replaced by '1 479 29785434' when the number is dialed out by ATA. This is called 'Automatic Number Translation' (ANT). Matrix SETU ATA211 V1 System Manual...
  • Page 69 By default all the Number List are Blank. Refer chapter “SIP Accounts” for ANT on SIP Account and chapter “FXO Port” for ANT on FXO port. Relevant Topics: “SIP Accounts” “FXO Port” “Using SETU ATA211” Matrix SETU ATA211 V1 System Manual...

  • Page 70: Called Party Number Table

    ATA will consider it as end of dialing and call will be made through corresponding destination route. • The received number is a valid number only if number of digits received is equal to or more than the 'minimum digits' programmed for that number prefix. Matrix SETU ATA211 V1 System Manual...
  • Page 71 12 or more digits, starting from '00' will be routed from 'FXO'. For e.g. if the received number is ISD number with prefix '00', it will be routed from 'FXS' port. How to program? Open the Web Jeeves and click on 'Called Party Number Table' link. (Only Admin can access this Webpage). Matrix SETU ATA211 V1 System Manual...
  • Page 72 IC calls for No match number will be rejected. Default = FXS. • For Index02 to Index10: You can select the option for the route from: FXS/FXO. Default = FXO. Relevant Topics: “SIP Accounts” “Dialed Number Table” Matrix SETU ATA211 V1 System Manual...

  • Page 73: Daylight Savings Time Adjustments

    Open the Web Jeeves and click on 'Daylight Saving Time Adjustments' link. (Only Admin can access this Webpage). The Web page will be as shown below: Forward Time Adjustments: • Type: Select the type from following options: • None: Program this option for a country where DST is not applicable. Matrix SETU ATA211 V1 System Manual...
  • Page 74 01:00 hours GMT at the start of DST and set back by one hour at 01:00 hours GMT when DST ends. • Go to the option 'Forward Time Adjustments' to advance the time when DST starts. Matrix SETU ATA211 V1 System Manual...
  • Page 75 Select 'Sunday' as the 'Day' • Select 'October' as the 'Month' • Change Time 'from': Hour: 02, Minute: 00 • Change Time 'to'; Hour: 01, Minute: 00 DST Adjustment in a European Union member country. Matrix SETU ATA211 V1 System Manual...
  • Page 76 Rosh Hashanah and Yom Kippur. The dates of the two festivals vary each year. In the year 2008, the last Friday before the 2nd April is March 28, Rosh Hashanah and Yom Kippur fall on September 29 and October 8, Matrix SETU ATA211 V1 System Manual...
  • Page 77 This flexibility is particularly useful for setting DST of countries where the start of DST is defined by date and month, e.g. March 11, but the end of DST is defined by Day and Month, e.g. the last Sunday of October (as observed in Cuba). Relevant Topic: “Time Settings” Matrix SETU ATA211 V1 System Manual...

  • Page 78: Debug

    If Debug flag is 'Enable', syslog client will send debug to 'syslog server address' and the 'Debug Level' which is enabled, can be viewed on the syslog server. The Server address and port number are to be programmed if Debug is enabled. Matrix SETU ATA211 V1 System Manual...
  • Page 79 Program the listening port of the Syslog Server from 1024-65535, 514. By default it is '514'. Debug Levels Select the parameter for which debug-log is required. The list of levels is as mentioned in this chapter. By default, all are enabled. Matrix SETU ATA211 V1 System Manual...

  • Page 80: Dialed Number Table

    • The dialed number is a valid number only if dialed number of digits is equal to or more than the 'minimum digits' programmed for that number prefix. Matrix SETU ATA211 V1 System Manual...
  • Page 81 If dialed number string does not match with entries in Dialed Number Table, and if the call was made from 'FXS' Port, the call will be routed to the programmed destination route 'FXO', which is programmed in the Table. Matrix SETU ATA211 V1 System Manual...
  • Page 82 Default = 24 for all Index. • Destination Route: Select the port on which ATA should route a call when the programmed number prefix is dialed. The options, for the route are FXS/FXO/SIP1/SIP2/SIP3. Default = SIP1 for all Index. Matrix SETU ATA211 V1 System Manual...
  • Page 83 FXO port. Route the call through': Configure destination route for the numbers dialed from FXS port and no match is found in table for the dialed number. Select the destination route from: None/FXS/SIP1/SIP2/SIP3. Default = SIP1. Relevant Topics: “SIP Accounts” “Called Party Number Table” “FXO Port” Matrix SETU ATA211 V1 System Manual...

  • Page 84: Digest Authentication

    ATA211, by selecting the option 'digest' for the parameter; 'Authentication Type'. • In the web page 'Digest Authentication', program the parameters; 'User ID' and 'User Password' of the IP device from which incoming call is to be allowed. Matrix SETU ATA211 V1 System Manual...
  • Page 85 User Password: Program the 'User Password' of caller IP device which is to be allowed to make IC call on ATA211 on the SIP Account. This can be programmed using maximum of 16 characters with ASCII characters. Default = Blank. Relevant Topic: “SIP Accounts” Matrix SETU ATA211 V1 System Manual...

  • Page 86: Fxs Port

    Hence some of the parameters of the FXS port will be required to be configured as explained in this chapter. How to program? Open the Web Jeeves and click on 'FXS Port' link. (Only Admin can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...

  • Page 87: Fxs Port Name

    A name can be assigned to FXS Port of ATA211. This name will be displayed on the SLT of the called party if the instrument of the called party supports display name functionality (and the received call is not anonymous call). FXS Port Name can be of maximum 16 characters. Default = Blank. Matrix SETU ATA211 V1 System Manual...

  • Page 88: Outgoing Calls

    ATA211 supports CLI types: None, DTMF, FSK- Bellcore and FSK-ITU (V.23). Select the type of CLI supported by your phone instrument. Select 'None' if CLI display is not required to be displayed on the phone. Default = FSK-ITU (V23). Matrix SETU ATA211 V1 System Manual...

  • Page 89: Answer Signaling Type

    But the Polarity of the FXS port battery voltage will not be changed. You will get Error tone after disconnect signal is generated on the FXS port. Default = 500msec. Matrix SETU ATA211 V1 System Manual...

  • Page 90: Flash Timer

    Echo Canceller if this is set as 'Yes'. By default it is 'Yes'. • Tail Length: Program this parameter if Echo Cancellation is enabled. Select tail length depending on the length of the echo. Matrix SETU ATA211 V1 System Manual...
  • Page 91 Valid range of tail length is 8 to 32 msec. By default, it is 32 msec. Relevant Topics: “Dialed Number Table” “Making Calls” “Making call using Auto PSTN Fall Back” “Managing Calls” “Call Features” “PIN Authentication” Matrix SETU ATA211 V1 System Manual...

  • Page 92: Fxo Port

    This port can also be interfaced with FXS port of the PBX for some applications by configuring desired parameters as explained in this chapter. How to program? Open the Web Jeeves and click on 'FXO Port' link. (Only Admin can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 93 Matrix SETU ATA211 V1 System Manual...

  • Page 94: Dial Type

    'OFF time' for the 'Ring cadence'. However, if Ring cadence -off time in ATA211, is programmed for lesser period, the 'ring' on FXS port will be stopped earlier. Matrix SETU ATA211 V1 System Manual...
  • Page 95 Forced Maturity Timer: Program this timer if 'None' is selected for Answer Supervision Type. Program the timer value on expiry of which, the call will be considered as matured. The range is from 00 to 99 sec. Default = 15 sec. Matrix SETU ATA211 V1 System Manual...

  • Page 96: Disconnect Signaling Detection

    Open Loop Disconnect Timer: Program this if 'Open Loop Disconnect' option is selected for disconnect signaling type. Program the time, for which open loop disconnect pulse detection should be considered as 'disconnect signaling' by the ATA211. Range is 001 to 999msec. Default = 200msec. Disconnect Tone Detection Matrix SETU ATA211 V1 System Manual...
  • Page 97 The ATA detects the calling party number which is displayed on the LCD of the telephone instrument connected to the FXS port. Different type of signaling is used by different exchange for sending the calling party number. • To detect this CLI number, ATA211 supports programmable signaling type. Matrix SETU ATA211 V1 System Manual...

  • Page 98: Pin Authentication

    This is a call routing feature, used to define the destination route for the incoming call to ATA211. For example, call on FXO port can be routed to the SIP or it can be routed to FXS port. Matrix SETU ATA211 V1 System Manual...
  • Page 99 This feature allows to route the incoming call on FXO port to another port only after the gateway has answered the call, within ring timer (caller will get dial tone of the FXO port). Matrix SETU ATA211 V1 System Manual...
  • Page 100 Range is from 01 to 99 seconds. Default = 45 sec. AC Impedance Generally, different communication equipment connected to FXO port of the ATA, has different AC impedance. ATA211 supports programmable AC impedance for interfacing with other equipment, with following values: 600  • Matrix SETU ATA211 V1 System Manual...

  • Page 101: Volume Control

    Valid range of tail length is 8 to 32 msec. Default = 32 msec. Relevant Topics: “Making Calls” “Using SETU ATA211” “Automatic Number Translation” “SIP Accounts” “PIN Authentication” “Speed Dialing” “Dialed Number Table” Matrix SETU ATA211 V1 System Manual...

  • Page 102: Lan Port

    The subnet can be changed from this web page 'LAN Port' and also using the command through conventional phone. • MAC Address: The MAC address is unique for each ATA211. The system will restart when you change either IP Address or subnet mask of LAN port of ATA211. Matrix SETU ATA211 V1 System Manual...

  • Page 103: Pcap Trace

    Configure Filter Settings = port 5060 Where, 5060 is the SIP Port number for which the traces are to be captured. To capture packets which are transmitted from the system i.e. from IP address, 192.168.1.191: Matrix SETU ATA211 V1 System Manual...
  • Page 104 PC or some other PC by giving the path. • Now, you can open the trace file using 'Ethereal' or 'Wire Shark' or some other software which supports to open this trace file. Relevant Topic: “Debug” Matrix SETU ATA211 V1 System Manual...

  • Page 105: Peer-To-Peer Call Table

    Total 500 entries can be programmed in the Peer-to-Peer table. Each entry should be programmed using following parameters viz. Name, Number and Destination Address. • Name: The 'Name' is configured to identify the specific contact. Enter maximum of 16 characters. The ASCII characters are allowed. By default it is blank. Matrix SETU ATA211 V1 System Manual...
  • Page 106 Destination Address: Enter the IP address or the domain name of the party which is to be called. Enter a string of maximum 40 characters. The ASCII characters are allowed. By default this field is blank. Relevant Topics: “Call Features” “Making Calls” “SIP Accounts” Matrix SETU ATA211 V1 System Manual...

  • Page 107: Pin Authentication

    If the caller gets authenticated, he will get dial tone/feature tone. Now, the caller should dial the desired number. • Refer topic “Call Progress Tone Generation (CPTG)” in chapter "System Parameter" for more details regarding tones. Matrix SETU ATA211 V1 System Manual...
  • Page 108 Proceed with steps mentioned in 'PIN Authentication on FXO port' above. How to program? Open the Web Jeeves and click on 'PIN Authentication' link. (Only Admin can access this webpage).The Web page will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 109 Refer chapters “FXO Port” “FXS Port” “SIP Accounts” to enable this feature on relevant port. Relevant Topics: “SIP Accounts” “Digest Authentication” “FXS Port” “FXO Port” “System Parameters” “Making Calls” “Using SETU ATA211” “Automatic Number Translation” Matrix SETU ATA211 V1 System Manual...

  • Page 110: Sip Accounts

    This type of call is generally made by the user who has their own private VPN or leased line connected to the different branch offices. How to program? Open the Web Jeeves and click on 'SIP Accounts' link. (Only Admin can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 111 Matrix SETU ATA211 V1 System Manual...
  • Page 112 SIP Accounts parameters are configured for maximum of three SIP Accounts as per your requirement, as explained follow: Matrix SETU ATA211 V1 System Manual...

  • Page 113: Sip Id

    ATA. To achieve this, the flag is provided as 'Yes' or 'No' for 'Send REGISTER?'. • If the flag is set as 'Yes' the ATA will send the REGISTER message to Registrar proxy or Outbound proxy as applicable, when SIP Account is enabled and configured with relevant information. Matrix SETU ATA211 V1 System Manual...

  • Page 114: Authentication User-Id

    This is the Authentication Id for authentication of the SIP account. Max. 40 characters can be programmed. The ASCII characters are allowed. This is relevant when SIP User ID and Authentication User ID are not same. Default = Blank. Matrix SETU ATA211 V1 System Manual...

  • Page 115: Outbound Proxy-Enable/Disable

    You can select either of the options mentioned below for each SIP Account: • Use WAN port IP Address • Use IP Address fetched using STUN • Use Router's Public IP Address Default = Use WAN Port IP Address. Matrix SETU ATA211 V1 System Manual...
  • Page 116 If 'Route to FXS' option is set, the IC call will be placed on FXS port and the conventional Phone connected to FXS will 'ring' for Ring Timer (Default = 45 sec). The IC call will be rejected after the expiry of ring timer. Matrix SETU ATA211 V1 System Manual...
  • Page 117 This routing type will be required when FXS port of ATA211 is connected to the one of the FXO port of PBX or when FXO port of ATA211 is connected to PSTN OR to the FXS port of PBX. Matrix SETU ATA211 V1 System Manual...
  • Page 118 'Collect number and route to FXO'. Refer chapter “PIN Authentication”. • If 'Digest' is selected, the Authentication will be enabled for all IC call on SIP account. Refer chapter “Digest Authentication” for configuring the Digest Authentication Table. Matrix SETU ATA211 V1 System Manual...

  • Page 119: Anonymous Call Rejection

    However, if the ATA does not receive the CLI on FXO or the number is not configured on FXS port or if the flag for 'Send Caller ID?' is set to 'No', the call will be considered as Anonymous. Matrix SETU ATA211 V1 System Manual...

  • Page 120: Vocoder Preference

    However, if DTMF Option is selected as 'SIP INFO', only DTMF ON Time will be applicable. DTMF OFF Time will be fixed viz. 500 msec. These timers are used for multi-stage dialing application. Refer chapter “Using SETU ATA211”. Matrix SETU ATA211 V1 System Manual...

  • Page 121: Call Hold Method

    If the FAX, sent using T.38 and is rejected, then ATA211 will use Pass Through option for sending the FAX (as a Fall Back Mechanism). Relevant Topics: “Automatic Number Translation” “Call Features” “Called Party Number Table” “Digest Authentication” “Using SETU ATA211” “FXO Port” Matrix SETU ATA211 V1 System Manual...

  • Page 122: Speed Dialing

    For FXO port: Index Number is as per Speed Dial Table-FXO For SIP: Index Number is as per Speed Dial Table-SIP ATA will dial the number from the destination port configured in relevant Index dialed. Matrix SETU ATA211 V1 System Manual...
  • Page 123 Open the Web Jeeves and click on 'Speed Dialing' link. (Both Admin and User can access this Webpage). Click on 'FXS' link. The web page will be as shown below: Click on 'FXO' link. The web page will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 124 Program the destination route as (FXO, SIP1, SIP2 or SIP3) corresponding to each number. Default = SIP1. Speed Dial Table-FXO: • Program the Numbers to be dialed from FXO port in this Table using Max. 40 characters allowed. All ASCII characters allowed. Default = Blank. Matrix SETU ATA211 V1 System Manual...
  • Page 125 Program the Name using Max 16 characters allowed. All ASCII characters allowed. Default = Blank. • The destination route is fixed as (FXO) port only, for the numbers to be dialed using SIP Account. Default = FXO. Relevant Topic: “SIP Accounts” Matrix SETU ATA211 V1 System Manual...

  • Page 126: Static Routing Table

    Subnet Mask: It is the mask to be applied on destination address. It can be of maximum 15 characters. • Gateway Address: It is the IP address of LAN interface of your router from where you want to route the call for specific destination. Relevant Topic: “Using SETU ATA211” Matrix SETU ATA211 V1 System Manual...

  • Page 127: Supplementary Services

    (destination address) in the corresponding field, on which you want the call to be forwarded. By default, all types of CF are disabled. • Call Forward-Unconditional • Call Forward-When Busy • Call Forward-When No Reply Matrix SETU ATA211 V1 System Manual...
  • Page 128 Select the option 'Set' to enable DND. If DND is disabled, all incoming calls will be allowed by the ATA. By default, 'DND' is disabled. Relevant Topics: “Call Features” “Class of Service” “Managing Calls” Matrix SETU ATA211 V1 System Manual...

  • Page 129: System Parameters

    System Parameters will allow the administrator to change the various system configurations. How to program? Open the Web Jeeves and click on 'System Parameter' link. (Only Admin can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...

  • Page 130: System Name

    Enter the system name here. This will allow Admin to identify the particular ATA unit when multiple ATA's are connected in LAN network. Name can be of maximum 24 characters. All ASCII characters are allowed. By default, System Name is Matrix Setu ATA211. Call Progress Tone Generation (CPTG) To select Call Progress Tones, select the country in which ATA211 is installed.
  • Page 131 Singapore cont. 425*24 1on 1off 0.4on 2.0off 0.75off 0.25off 0.4on 0.2off 0.25on South Africa 400*33 cont. 400*33 0.5on 0.5off 1on 1off 0.4on 2.0off 0.25off 0.25on Spain cont. 1.5on 3.0off 0.2on 0.2off 1on 1off 0.25off Matrix SETU ATA211 V1 System Manual...
  • Page 132 'Ring', refer 'Table-2'. Table 2: (Ring Cadences) CADENCE (In Seconds) Frequency Code Country (Hz) T1ON T1OFF T2ON T2OFF Australia Belgium Brazil China Egypt France Germany 0.79 Greece India Israel Italy Japan Korea Malaysia New Zealand Matrix SETU ATA211 V1 System Manual...

  • Page 133: First Digit Wait Timer

    To achieve this, the ATA supports 'Port Release Timer' to release the FXS/FXO/SIP. On expiry of port release timer, any type of call will be released. This Timer is applicable for each call made through FXS/FXO/SIP of ATA211. Matrix SETU ATA211 V1 System Manual...

  • Page 134: Voice Activity Detection

    User is allowed to access through Jeeves. Parameters which are not accessible by 'User' do not get defaulted. However, this parameter, provides flexibility to default even the Admin password also, when the 'User' defaults the ATA. Matrix SETU ATA211 V1 System Manual...
  • Page 135 This flag is also applicable when the user uses the Access Code to default the Password. Refer chapters “Admin Password” “User Password”. Relevant Topics: “Digest Authentication” “Using SETU ATA211” “FXS Port” “FXO Port” “Admin Password” “User Password” Matrix SETU ATA211 V1 System Manual...

  • Page 136: Time Settings

    How to Program? Open the Web Jeeves and click on 'Time Settings' link. (Only Admin can access this Webpage). The Web page will be as shown below. For Selecting NTP Time Server refer following Webpage: Matrix SETU ATA211 V1 System Manual...

  • Page 137: Time Server

    You can set the NTP server address manually, by entering the IP address/domain of any other time server. Select the blank NTP address box and enter the IP address/domain manually. By default, it is blank. For Getting date and time according to Time Zone refer Webpage as shown below: Matrix SETU ATA211 V1 System Manual...

  • Page 138: Time Zone

    Time Zone you have selected. The date is displayed in Date-Month-Year (DD-MM-YYYY) format, while the current time is displayed in Hour:Minute:Seconds (HH:MM:SS) format. When ATA211 gets defaulted, time parameters will not be set to default values. Relevant Topics: “Daylight Savings Time Adjustments” Matrix SETU ATA211 V1 System Manual...

  • Page 139: User Password

    After login as 'User', if the user defaults the ATA1S using Webpage 'Reinstate the Default Settings', the system will default the 'User' password. Refer chapter “Reinstate the Default Settings”. Relevant Topic: “Reinstate the Default Settings” Matrix SETU ATA211 V1 System Manual...

  • Page 140: Wan Port

    ATA211 can be connected to the Ethernet port of the broadband modem/router or to one of the Ethernet port of LAN switch. How to program? Open the Web Jeeves and click on 'WAN Port' link. (Both Admin and User can access this Webpage). The Webpage will be as shown below: Matrix SETU ATA211 V1 System Manual...
  • Page 141 Matrix SETU ATA211 V1 System Manual...

  • Page 142: Dns Setting

    Obtain Automatically. By default 'Static' is selected. Select 'Static' if you want to program DNS manually. Select 'Obtain Automatically' if you want DNS address and Domain name to be assigned by DHCP/ PPPoE server, automatically. Matrix SETU ATA211 V1 System Manual...

  • Page 143: Router's Public Ip Address

    SIP INVITE Timer: It is the time for which ATA211 waits for a response from the called party after sending INVITE message. This timer starts after sending INVITE message to the called party and stops on receipt Matrix SETU ATA211 V1 System Manual...
  • Page 144 Enable: Enable STUN (Simple Traversal of UDP through NAT) if ATA211 is located behind the NAT router. STUN server facilitates traversing through most NATs, except symmetric NATs. If your router has Symmetric NAT, do not use STUN. Matrix SETU ATA211 V1 System Manual...

  • Page 145: Vlan/Cos (Layer)

    Jeeves from WAN Port for further configuration. Hence using this command, you can first disable L2 VLAN/CoS and then access Jeeves. Both Admin and User can issue the command from SLT to enable/ disable L2 VLAN/ CoS as explained below: Matrix SETU ATA211 V1 System Manual...
  • Page 146 RTP CoS: It signifies the 'L2 CoS (priority) bits' which should be added in Layer2 VLAN header of all RTP packets generated by the system when VLAN feature is enabled. The range for 'RTP CoS' is 0-7. Program the CoS bits for all the RTP packets relayed from LAN to WAN as '0'. Matrix SETU ATA211 V1 System Manual...
  • Page 147 RTP Listening Port: RTP Listening port defines the port on which the ATA listens for RTP packets. The ATA also uses this port as source port in RTP packets while sending RTP to remote peer. The range of RTP Listening Port is 1024-65526. By default, it is 8000. Matrix SETU ATA211 V1 System Manual...
  • Page 148 Relevant Topics: “SIP Accounts” “Static Routing Table” “Checking the Status” Matrix SETU ATA211 V1 System Manual...
