Port Parameters-FXO

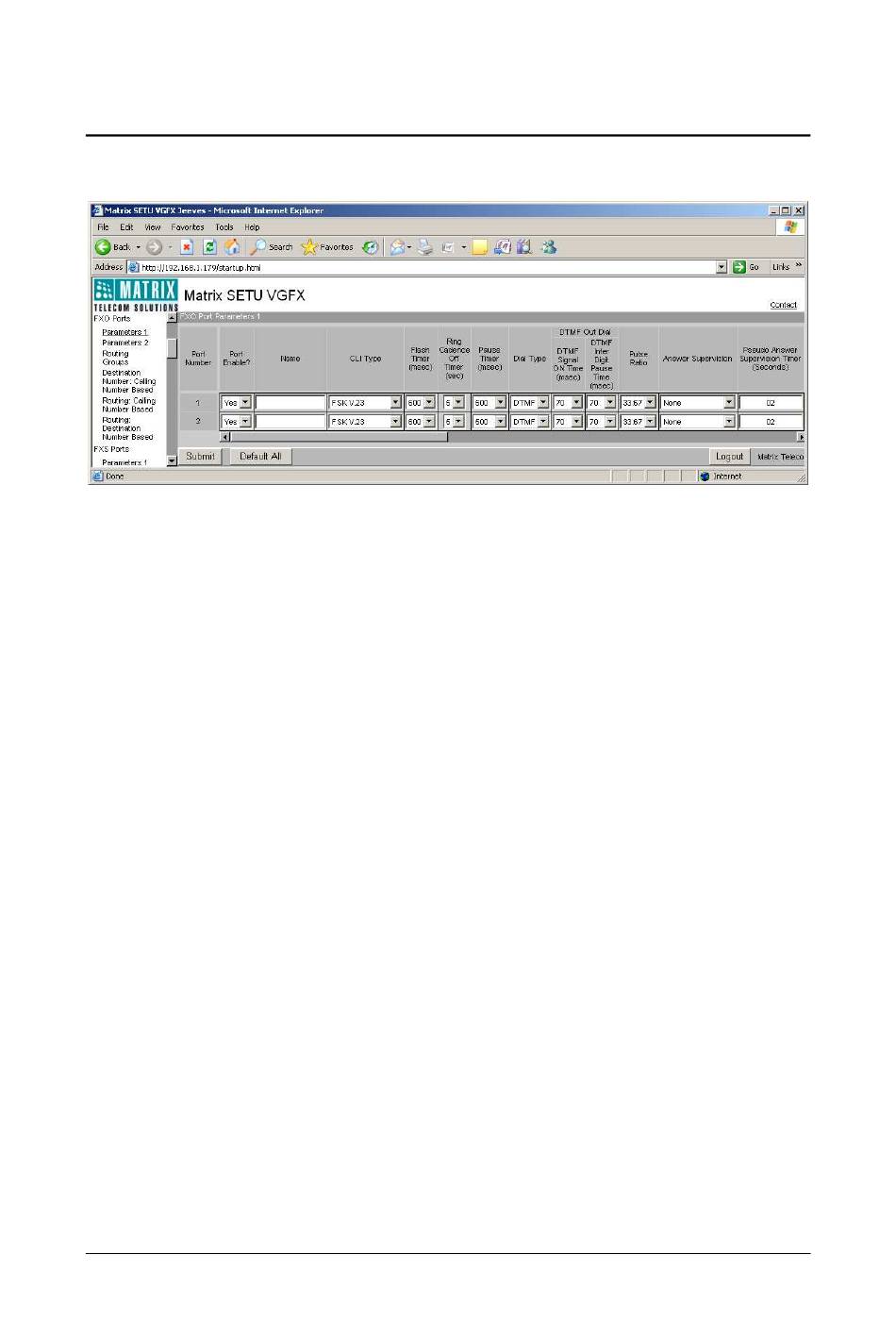

Click on 'FXO Port Parameters 1' link and program the following parameters:
• Port Enable?: You will be able to receive and make calls using FXO Port only if
the status of the FXO Port is enabled.
Valid options: Yes/No
Default = Yes
• Calling Line Identification (CLI) Type: Select CLI type supported by your
telephone exchange in this field. SETU VGFX is capable of detecting following
type of signaling on its FXO Port:
• None
• Any ETSI DTMF format
• Any FSK V.23 format
• Any FSK Bellcore format
• 1st Ring, ETSI DTMF, 2nd Ring
• Polarity Reversal, ETSI DTMF, 1st Ring
• 1st Ring, FSK, 2nd Ring
• RP-AS, FSK, 1st Ring
• Polarity Reversal, DT-AS, FSK, 1st Ring
• Any DTMF Format (without Start/Stop Code)
Default = Any FSK V.23 format
CLI type 'None' is selected when the exchange does not support any type of CLI
or user does not want to detect the CLI. Detecting CLI takes time and thus the
routing of call gets delayed by 2-3 seconds, this delay can be avoided by using
CLI type = 'None'.
Matrix SETU VGFX Quick Start 25
