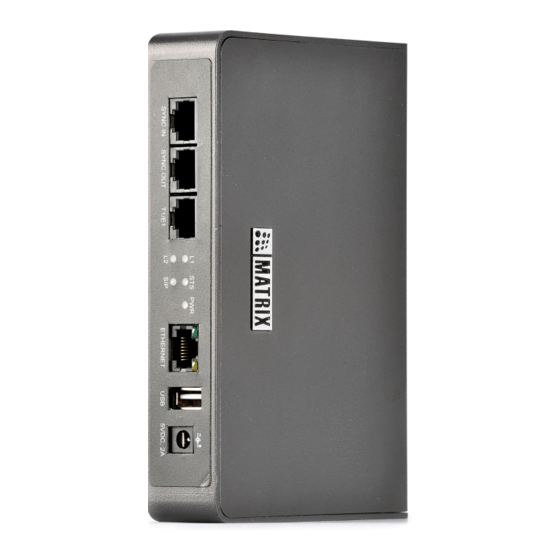

Matrix SETU VTEP Quick Start Manual

An out-n-out voip to ti/ei gateway
Hide thumbs

Advertisement

Quick Links

Download this manual
SETU VTEP
Quick Start

Advertisement

loading
Need help?

Need help?

Do you have a question about the SETU VTEP and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix SETU VTEP

Summary of Contents for Matrix SETU VTEP

  • Page 1 SETU VTEP Quick Start...
  • Page 3 SETU VTEP An Out-n-Out VoIP to T1/E1 Gateway Quick Start...
  • Page 4 Documentation Disclaimer Matrix Comsec reserves the right to change, at any time, without prior notice, the product design, specifications, components, as engineering and manufacturing may warrant. This is a general documentation for all models/configurations of the product. The product may not support some of the features/facilities described in this document.

  • Page 5: Table Of Contents

    Contents Know Your SETU VTEP ....................1 Overview ..........................1 Installing SETU VTEP ...................... 3 Before you Start .........................3 Getting Started ........................3 Connecting SETU VTEP ......................4 Power On SETU VTEP ......................8 Accessing Jeeves ......................9 Table of Contents...
  • Page 6 Table of Contents...

  • Page 7: Know Your Setu Vtep

    Know Your SETU VTEP Thank you for choosing the Matrix SETU VTEP . Please read the instructions in this Quick Start to install and operate SETU VTEP . This Quick Start is meant to help you install SETU VTEP and access its User Interface for configuration.
  • Page 8 Blinks to indicate health of the system. Indicates the status of layer 1 of the T1/E1 line. Indicates the status of layer 2 of the T1/E1 line. Indicates the status of the SIP Trunk to which the LED is assigned. Matrix SETU VTEP Quick Start...

  • Page 9: Installing Setu Vtep

    Ensure proper electrical earth and telecom earth for the safety of the product and persons handling it. Getting Started Package Contents • Unpack the SETU VTEP and check the package contents. The product package must have the following items: • SETU VTEP unit • A Power Adapter •...

  • Page 10: Connecting Setu Vtep

    IP network, which may be Public Internet or a LAN. If connecting to the Public IP Network, • Plug one end of the RJ45 Ethernet cable into the Ethernet Port of SETU VTEP and the other end into the Broadband Router/Modem.
  • Page 11 If connecting to a Private Network (Behind a NAT Router), • Plug one end of the RJ45 Ethernet cable into the Ethernet Port of SETU VTEP and the other end into the LAN Switch/Hub. Connecting to the ISDN Network • By default, the T1/E1 Port is set for E1 Line connectivity.
  • Page 12 Termination Unit manufacturers use these connectors. But you are advised to read the installation guide of the HDSL Network Termination Unit you are using. • You may use PRI Cross cable depending on the pin out of the DTE Interface of the terminal. Matrix SETU VTEP Quick Start...
  • Page 13 See the figure below for connecting the SYNC IN and SYNC OUT ports for Network Clock synchronization. The T1/E1 Line from the Public ISDN Network is connected to the SYNC IN port of SETU VTEP and the same line emerges from SYNC OUT port and is terminated on the T1/E1 (TE) port of the PBX.

  • Page 14: Power On Setu Vtep

    Here, the T1/E1 port of the ISDN PBX is the ‘Terminal’ and the T1/E1 Port of the SETU VTEP to which it is connected is the ‘Network'. So, the Orientation Type of the T1/E1 Port of the SETU VTEP must be configured as Network.

  • Page 15: Accessing Jeeves

    Computer To connect a standalone computer, • Plug one end of the Ethernet cable supplied into the Ethernet Port of SETU VTEP . Plug the other end into the LAN port of the computer. • Make sure the IP Address of the computer and the Ethernet Port of SETU VTEP do not conflict, and that both are in the same Subnet.
  • Page 16 • Enter the default IP address 192.168.1.100 of the Ethernet Port of SETU VTEP in the address bar of the browser. • You will be redirected to the HTTPS protocol for security reasons. • Click the https://192.168.1.100 link. • The Login page will open.
  • Page 17 As this password is meant for restricting access to the SE mode, we strongly recommend you to: • Keep the password secret. • Select a complex password that cannot be easily guessed. • Change the password regularly. See Login Password topic in the System Manual for instructions. Matrix SETU VTEP Quick Start...
  • Page 18 • You may now configure the Basic Settings of SETU VTEP . You may use the configuration Wizard or selectively configure the Basic Settings pages, whichever works best for you. Refer the SETU VTEP System Manual for detailed instructions. Matrix SETU VTEP Quick Start...
  • Page 19 Matrix SETU VTEP Quick Start...
  • Page 20 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. M: +91 85111 73344 E-mail: Customer.Care@MatrixComSec.com www.MatrixTeleSol.com...
