  • Page 1 SETU VFXTH Quick Start...

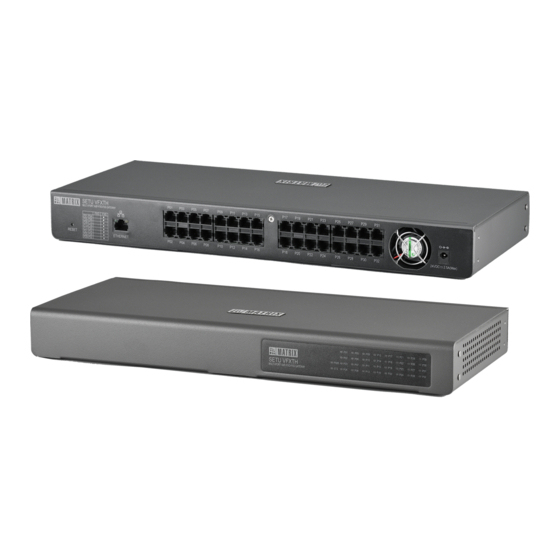

  • Page 2 SETU VFXTH Multi-Port SIP based VoIP to FXO-FXS Gateway Quick Start...
  • Page 3 Documentation Disclaimer Matrix Comsec reserves the right to change, at any time, without prior notice, the product design, specifications, components, as engineering and manufacturing may warrant. This is a general documentation for all models/configurations of the product. The product may not support some of the features/facilities described in this document.

  • Page 4: Table Of Contents

    Contents Know Your SETU VFXTH ................1 Overview ......................1 Ports and Connectors ..................2 LEDs ........................3 Installing SETU VFXTH .................. 4 Before You Start ....................4 Getting Started ....................4 Connecting SETU VFXTH ................. 5 Powering ON SETU VFXTH ................7 How to Access Jeeves ...................

  • Page 5: Know Your Setu Vfxth

    Know Your SETU VFXTH Thank you for choosing the Matrix SETU VFXTH. Please read the instructions in this Quick Start to install and operate your SETU VFXTH properly. This Quick Start is meant to help you install and configure the basic parameters of the system. For advanced configuration and feature description, please refer the System Manual.

  • Page 6: Ports And Connectors

    To connect 24VDC, 2.5A power adapter. 2.5A(Max) a. If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808) then P01 to P08 (FXO Ports) will be used to connect PSTN lines or a PBX and P09 to P16 (FXS Ports) will be used to connect telephone instruments or a Fax Machine or a PBX.

  • Page 7: Leds

    Power LED. Turns on when power is supplied. Single color SETU VFXTH is easy to install and operate. The built-in web server, JEEVES, allows you to configure the system parameters and features On-site as well as from a remote location.

  • Page 8: Installing Setu Vfxth

    Battery: SETU VFXTH contains 3.3V DC Manganese Lithium Battery (ML 2032- Rechargable) of diameter 20 (-0.2)mm and height 3.2 (-0.3)mm. Battery should be replaced only by authorized dealers of Matrix. There is a risk of explosion if the Battery is replaced in an incorrect manner. Please dispose-off used Batteries.

  • Page 9: Connecting Setu Vfxth

    Computers Router If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808) then P01 to P08 (FXO Ports) will be used to connect PSTN lines or a PBX and P09 to P16 (FXS Ports) will be used to connect telephone instruments or a Fax Machine or a PBX.
  • Page 10 LAN Switch/ SETU VFXTH Computer If connecting to a Private Network (Behind a NAT Router), • Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other end into the LAN Switch/Hub. LAN Switch/ Ethernet...

  • Page 11: Powering On Setu Vfxth

    Powering ON SETU VFXTH • Connect the power adapter to SETU VFXTH. • Plug in the power adapter of SETU VFXTH into the power outlet. • Switch on power supply and wait for the Reset Cycle to complete. Reset Cycle The Reset Cycle (Power-ON Self Test) takes about 2 minutes to finish.

  • Page 12: How To Access Jeeves

    • Plug one end of the Ethernet cable supplied with the system into the Ethernet Port of SETU VFXTH. Plug the other end into the LAN port of the computer. • Make sure the IP Address of the computer and the Ethernet Port of SETU VFXTH do not conflict, and that both are in the same Subnet.
  • Page 13 • In Login Password, enter 1234, the default SE Password. • Click the Login button. Before you start configuring the system, if you wish to view or download the SETU VFXTH System Manual/User Card, you can scan the QR Code present on the login page of Jeeves.
  • Page 14 Keep the password secret. • Select a complex password that cannot be easily guessed. • Change the password regularly. See Login Password topic in the System Manual for instructions. On successful login, the Home page opens. Matrix SETU VFXTH Quick Start...
  • Page 15 Status allows you to view the system details and status of all the SIP Trunks, FXO Port, Ethernet Port and system’s firmware. • You may now configure the Basic Settings of SETU VFXTH. Matrix SETU VFXTH Quick Start...

  • Page 16: Configuring Setu Vfxth

    : expands a link on the page to display all the parameters under the link. • Collapse : collapses a link, hides all the parameters under a link on the page. • Settings : enables you to configure / edit the settings of a parameter further. Matrix SETU VFXTH Quick Start...

  • Page 17: Using Selective Configuration

    Expand: expands a link to display all parameters under the link. Collapse: collapses a link; hides all parameters under the link. Settings: enables you to configure / edit the settings of a parameter further. Matrix SETU VFXTH Quick Start...
  • Page 18 • Set the parameters on the page to the desired values and click the Submit button to save. You may use the Wizard or selectively configure the Basic Settings pages, whichever works best for you. Read the SETU VFXTH System Manual for detailed instructions. Matrix SETU VFXTH Quick Start...
  • Page 19 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. Ph: (+91)1800-258-7747 E-mail: Customer.Care@MatrixComSec.com www.MatrixTeleSol.com...
