Destination Number Determination Method

Routing mechanism in SETU VGFX involves two things: Destination Number
Determination Method and Destination Port Determination Method. SETU VGFX
supports following methods of determining destination number on different ports:
• Number Not Required: In this method, destination number is not required. The
call originated on a Source Port is simply routed to a fixed port programmed for
that port. No specific number is to be dialed in this method.
• Fixed Destination Number: In this method, a call received on the Source Port
is routed to a fixed destination number programmed for that port.
• Based on Calling Number: In this method, a call is routed to a specific number
depending upon the calling party's number i.e. SETU VGFX will route the call to
the destination number programmed for the calling party in the Calling Number
Based table.
• Based on Called Number: In this method, a call is routed to the destination
number depending on the called party number received in the SIP ID of Request
URI of the INVITE message or SETUP message of BRI/T1E1 Port.
• Manual Dial: In this method, the caller is given freedom to dial his desired
number. CLI display on the LCD of the telephone connected to the destination
port would be as per the programming done in 'CLI number on FXS port'. (PIN
authentication can also be applied on the Source Port, if desired.)
To program Destination Number Determination Method for FXO Ports:

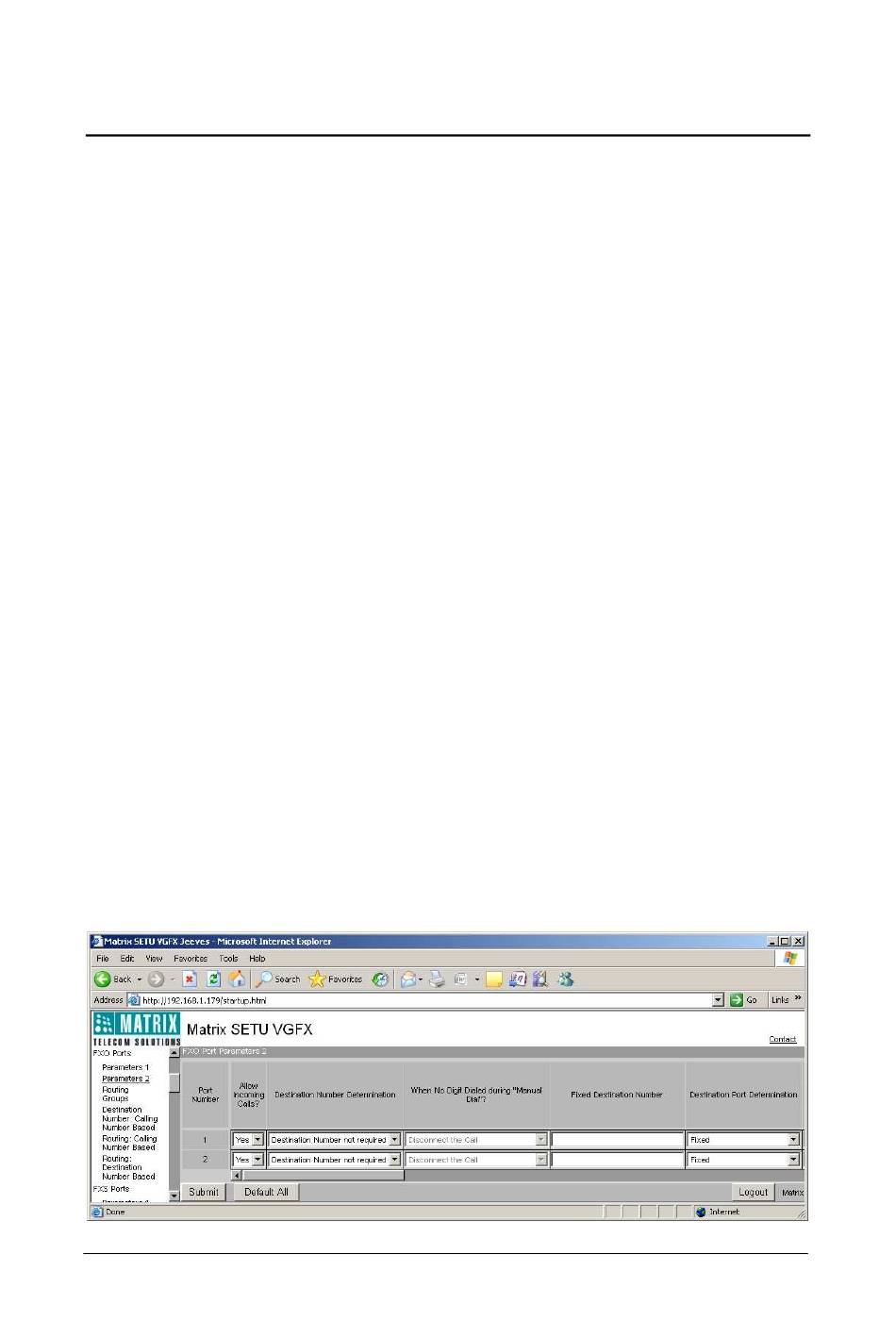

Click on 'FXO Port Parameters2' link and select Destination Number
Determination Method for each FXO Port.
42 Matrix SETU VGFX Quick Start
