  • Page 1 SETU VGFX Quick Start...
  • Page 3 SETU V SETU V SETU V SETU V GFX SETU V VoIP-GSM-FXS-FXO Gateway Quick Start...

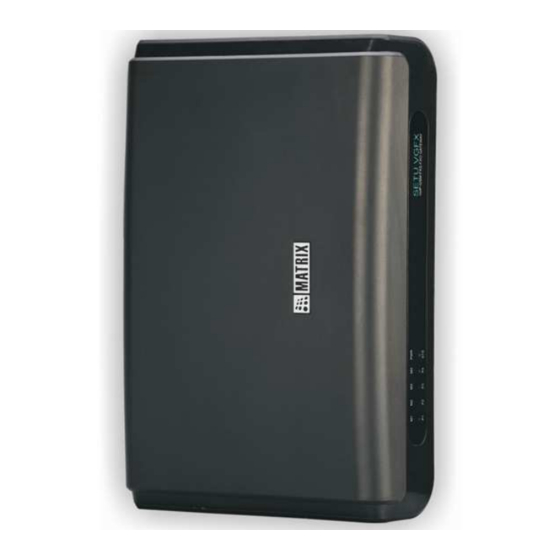

  • Page 4 'SETU VGFX V1 System Manual' provided to you on the CD-ROM. Know your SETU VGFX SETU VGFX has 1 WAN Port, 2 FXO Ports, 2 FXS Ports, 4 Mobile Ports, 9 SIP Trunks, Antenna Connecter, a Power Socket and 10 LEDs.

  • Page 5: Before You Start

    A Warranty Card Set Make sure that all the above mentioned components are present when you open the Sales Kit of SETU VGFX. In case any of the part is missing or damaged, contact the source from where you have purchased your VGFX.
  • Page 6 Precautions and Safety Instructions under 'Protecting SETU VGFX' topic in the System Manual) Mounting SETU VGFX on wall: SETU VGFX should be installed at the airy, dust free and moisture free place. • Select a suitable place on the wall for mounting SETU VGFX.
  • Page 7 Connect Ethernet (WAN) Port of SETU VGFX to the LAN Switch/Network of the Enterprise. • Connect PSTN line to the FXO Port of SETU VGFX or connect FXO Ports of SETU VGFX to the FXS Ports of the PBX. •...
  • Page 8 Switching ON SETU VGFX After connecting SETU VGFX as shown above, switch ON the power supply. At Power ON, Power LED will turn ON (Continuous Red). Initialization process will start and LED sequence of all other LEDs during initialization process is...
  • Page 9 System LED (STS) will display the following error/events/status: System Status LED Status Comment VoPP Program Down Red On Continuously VoPP Program download Load Fail. fail Gateway started GREEN Blink Gateway Started successfully and 1sec On-1sec Off Successfully. NW_Up_SIP_Up_CDR Network link is Up. SIP stack is Up CDR buffer is not full NW_Down_SIP_...
  • Page 10 FXS/FXO and Mobile Port. Accessing Web Jeeves: Programming of SETU VGFX can be done using Web JEEVES only. It does not support programming of VGFX using telephone instrument except few Network Port Parameters. To access Web JEEVES, Network Port Parameters should be programmed first using conventional phone.
  • Page 11 After programming VGFX in above mentioned sequence, you will be able to make and receive calls. • Open Web browser of the computer connected to VGFX. • Enter IP Address of SETU VGFX in the URL field and press 'Enter' key. Login Page of SETU VGFX will appear on the screen.
  • Page 12 • Enter default SE password (1234) in the 'Password' field and click on 'Login' button. Home page of Web JEEVES will open up.

  • Page 13: Step 2: Date And Time

    Step 1: SIM PIN SIM PIN is a security feature used by the GSM network. This feature is used to protect the SIM card inserted in the system from mis-use. • If this feature is enabled, the network will ask the user to enter SIM PIN at every Power On.
  • Page 14 • Current Date: Enter current date in DD-MM-YYYY format. Valid range for date = 01 to 31 Valid range for month = January to December Valid range for year = 2008 to 2099 • Current Time: Enter current time in HH-MM-SS format. Valid range for hour = 00 to 23 Valid range for minutes = 00 to 59 Valid range for seconds = 00 to 59...

  • Page 15: Step 3: Call Progress Tones

    • If 'Countrywise option' is selected then the combo box for selecting the country becomes editable. Select the country in which SETU VGFX is installed. By default, INDIA is selected. • If 'Customized option' is selected then countrywise combo box becomes uneditable and CPTG table will become editable.

  • Page 16: Step4: Ring Type

    • Frequency2: Program frequency2 for each tone. Range of frequency 2 is 20-1400 Hz for all tones. • Operator parameter has three options: No: If 'No' is programmed then Frequency 2 is not applicable. * (Modulation): If '*' (Modulation) is programmed then Frequency 1 and Frequency 2 is used as modulation i.e.

  • Page 17: Step5: Mobile Network Selection

    • In 'Ring Type' field, select the country in which SETU VGFX is installed. • Ring cadence value will change in Ring Cadence table automatically as per the country programmed in Ring Type field. Ring Cadence table is un-editable. (Refer 'Ring Type' feature in System Manual for details)
  • Page 18 • Network Operator Code: If mode programmed for network selection is 'Manual' then program network operator code and set the priority for network operators with which the SIM can get registered. Maximum Length = 8 digits Default = Blank. In Manual mode for network selection, SIM Card will be registered only with the network that is supported by the network operator of the SIM Card used in the system.
  • Page 19 • Port Enable?: Enable the status of the SIP Trunk. You will be able to receive incoming calls and make outgoing calls only if the SIP Trunk is enabled. • Valid options: Yes/No Default = No • SIP ID: Enter the SIP ID provided by the ITSP in this field. •...
  • Page 20 • Registrar Servers' Address: Enter SIP registrar server address provided by ITSP in this field. It can be an IP address or domain. • Maximum Length = 40 characters • All ASCII characters allowed Default = Blank • Registrar Servers' Port: Enter registrar server listening port provided by ITSP in this field.
  • Page 21 • Use Symmetric RTP?: This parameter is applicable only for peer to peer calls. Select 'Yes' if SETU VGFX is located on public IP and calls are made and received from the SIP client located behind the NAT router. •...
  • Page 22 Step8: Destination Number Determination Method: Routing mechanism in VGFX involves two things: Destination Number Determination Method and Destination Port Determination Method. VGFX supports following method for Destination Number Determination Method: Number Not Required In this method, destination number would be blank. Call will not be answered till the destination port is answered.
  • Page 23 Programming Destination Number Determination Method: • Click on 'Mobile Port Parameters2' link and select Destination Number Determination Method. Similarly, open 'FXS Port Parameters 2', 'FXO Port Parameters 2' and 'SIP Trunk Parameters 2' and select Destination Number Determination Method for FXS Ports, FXO Ports and SIP Trunks respectively. Step9: Destination Port Determination Method: Routing mechanism in VGFX involves two things: Destination Number Determination Method and Destination Port Determination Method.

  • Page 24: Step10: Network Port Parameters

    Programming Destination Port Determination Method: • Click on 'Mobile Port Parameters2' link and select Destination Port Determination Method. Similarly, open 'FXS Port Parameters 2', 'FXO Port Parameters 2' and 'SIP Trunk Parameters 2' and program Destination Port Determination Method for FXS Ports, FXO Ports and SIP Trunks respectively. Step10: Network Port Parameters Click on 'Network Port Parameters' and program following parameters:...
  • Page 25 • Connection Type: Select the type of connection provided by service provider in this field. • Valid options: Static/DHCP/PPPoE Default = Static When DHCP is selected as the connection type then PPPoE parameters, IP parameters and DNS Settings parameters would become uneditable. •...
  • Page 26 • Static IP Parameters: Program IP address, Subnet Mask and Gateway Address manually in the following fields if connection type selected is Static. IP Address: Enter IP Address in this field. • Maximum Length = 15 characters • Valid Range = 000 to 255 for first three octets and 000 to 254 for last octet Default = 192.168.001.176 Subnet Mask: Enter Subnet Mask Address in this field.
  • Page 27 • Valid range = From 1024 to 65526 Default = 8000 SETU VGFX will reboot as soon as you submit the page after changing any of the Network Port parameters and you will logout of the Web JEEVES. • If SETU VGFX is connected directly to the Computer for configuring the system then remove the Ethernet Cable from the Computer and connect it to the Broadband Modem switch.

  • Page 28: Step 11: Reinstate The Default Settings

    Step 11: Reinstate the Default Settings SETU VGFX enables the user to default VGFX and assign default values to all programmable parameters by using 'System Default' feature. This feature will set all parameters to factory set values except the following features:...

  • Page 29: Step13: Checking The Status

    You can program LEDs for showing status of maximum 8 SIP Trunks simultaneously. Programming of LEDs is done using Web JEEVES as shown below: • Open Web JEEVES of SETU VGFX. (Refer 'Accessing Web JEEVES' topic) • Click on 'System Port LED' link.
  • Page 30 Through Web JEEVES: Open Web JEEVES of SETU VGFX and click on the 'SIP Trunk Status' link to check status of SIP Trunks. Following page will be displayed: Following is a brief description of the parameters displayed on the 'SIP Trunk Status' page.
  • Page 31 Network Status: You can check Network Status through Web JEEVES only. Open Web JEEVES of SETU VGFX and click on the 'Network Status' link. Following page will be displayed: Brief description of the parameters displayed on the 'Network Status' page is as follows: IP Address: This field displays IP address currently assigned to VGFX.

  • Page 32: Test Call

    Now you can make and receive calls either from a cell phone or from analog phone connected to VGFX follow the steps given below to make a test call: Making a Call • Pick up the handset of telephone instrument connected to SETU VGFX. You will get dial tone. • Dial the desired number.
  • Page 33 Appendices Features at Glance Feature Description Feature Code To Enter Programming Mode #19-User Password (Default Password = 1234) To Exit Programming Mode 00#* To Set Hotline #151-1 To Cancel Hotline #151-0 To Enable Call Waiting #16-1 To Disable Call Waiting #16-0 To Set DND #18-1...
  • Page 34 @ Dial # as end of dialing if end of dialing digit is programmed or wait till expiry of inter digit wait timer. System Commands Description System Commands To Program Network IP Address 11-IP Address-#* To Program Network Subnet Mask 12-Subnet Mask-#* To Program the Connection Type 10-Code-#*...
