Page 1 SETU VFXTH System Manual...
Page 2 SETU VFXTH Multi-Port SIP based VoIP to FXO-FXS Gateway System Manual...
Page 3 Neither Matrix Comsec nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the purchaser or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec's operating and maintenance instructions.
Page 4: Table Of Contents
Contents Introduction..............................1 Welcome ................................1 About this System Manual ..........................1 Know Your SETU VFXTH ..........................4 Overview of SETU VFXTH ..........................4 Applications of SETU VFXTH ..........................6 Installing SETU VFXTH........................... 9 Before You Start ..............................9 Getting Started ..............................10 Connecting SETU VFXTH ..........................
Page 5 Certificate Manager ............................183 Call Detail Record ............................194 Features............................... 199 Call Hold ................................199 Making a Second Call ............................. 201 Call Toggle ..............................202 Call Transfer - Attended ..........................203 Call Transfer - Blind ............................204 Call Forward ..............................206 Conference ..............................
Page 6: Introduction
You may also refer to the SETU VFXTH Quick Start for quick installation. For instructions on using the features, you may refer the SETU VFXTH User Card. To view or download these documents, scan the QR Code printed on the Product Label/Packaging Label.
Page 7 Note: It indicates something that requires your special attention or to remind you of something you need to do when you are using the SETU VFXTH. Tip: It indicates a helpful hint giving you an alternative way to operate the SETU VFXTH or carry out a procedure more efficiently.
Page 8 Destination/Terminating Port: The port on which a call terminates. Using this System Manual, we hope, you will be able to install, operate and make optimum use of the SETU VFXTH. However, if you encounter any technical problems, please contact your dealer/reseller or Matrix Customer Care.
Page 9: Know Your Setu Vfxth

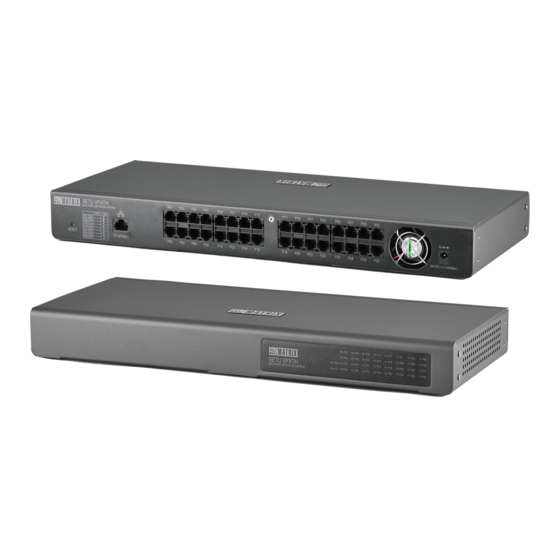

CHAPTER 2 Overview of SETU VFXTH SETU VFXTH is a gateway that provides voice services over IP network using SIP protocol. It is an effective and flexible solution for accessing internet based telephone services and corporate intranet systems across established LAN.
Page 10 To connect 24VDC, 2.5A power adapter. a. If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808) then P01 to P08 (FXO Ports) will be used to con- nect PSTN lines or a PBX and P09 to P16 (FXS Ports) will be used to connect telephone instruments or a Fax Machine or a PBX.
Page 11: Applications Of Setu Vfxth
Applications of SETU VFXTH Case 1: Standalone Case 2: Infront of PBX 2. All Application diagrams are made using SETU VFXTH0808. Matrix SETU VFXTH System Manual...
Page 12 Case 3: Behind the PBX Case 4: Analog Extension of PBX over IP (Remote Extension) Matrix SETU VFXTH System Manual...
Page 13 Case 5: PSTN Call over IP (Long Distance converted to Local Call) Case 6: Peer-to-Peer Calling Matrix SETU VFXTH System Manual...
Page 14: Installing Setu Vfxth
Installing SETU VFXTH CHAPTER 3 Before You Start Before you begin to install and set up the hardware of SETU VFXTH, make sure you have the items listed below ready: • A suitable location to install SETU VFXTH. • Necessary telecom wiring for the lines and devices to be connected to the FXS and FXO Ports.
Page 15: Getting Started
Battery SETU VFXTH contains a 3VDC/18mAh (Li-Al) alloy-Manganese Dioxide Coin Battery (ML 1220 - Rechargeable) of diameter 12.5mm and height 2.0mm. The Battery should be replaced only by authorized dealers of Matrix. End Users must not attempt to replace it.
Page 16: Connecting Setu Vfxth
Private Network. If connecting to the Public IP Network, • Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other end into the DSL modem / Router. Matrix SETU VFXTH System Manual...
Page 17 SETU VFXTH Computer If connecting to a Private Network (Behind a NAT Router), • Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other end into the LAN Switch/Hub. LAN Switch/ Ethernet Router/...
Page 18 CDR buffer is full. 500 ms on - 500ms off - Network link is up. 500 ms on - 500ms off - SIP stack is up. 500 ms on - 1500ms off (3 Blinks) CDR buffer is full. Matrix SETU VFXTH System Manual...
Page 19 LED of the port from which you entered the programming mode will glow continuously Green. After exiting the programming mode, the LED will turn Red again (displaying Off-hook event). When the Reset Cycle is completed, you may configure the system using the embedded web server, Jeeves. Matrix SETU VFXTH System Manual...
Page 20: Configuring Setu Vfxth
LAN at a later stage, after you have finished installation and configuration of the system. To connect a standalone computer, • Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH. Plug the other end into the LAN Port of the computer. Ethernet Computer SETU VFXTH •...
Page 21 • Click the Login button. Before you start configuring the system, if you wish to view or download the SETU VFXTH Quick Start/ User Card, you can scan the QR Code present on the login page of Jeeves. Matrix SETU VFXTH System Manual...
Page 22 As this password is meant for restricting access to the SE mode, we strongly recommend you to: • Keep the password secret. • Select a complex password that cannot be easily guessed. • Change the password regularly. See “Login Password” for instructions. On successful login, the Home page of Jeeves opens. Matrix SETU VFXTH System Manual...
Page 23 You may now configure the Basic Settings of SETU VFXTH. If you need to change the IP Address and the Subnet Mask of the Ethernet Port of SETU VFXTH, you may do so by dialing System Commands from the telephone connected to the FXS Port. It is also possible to view the current IP Address and Subnet Mask of the Ethernet Port by dialing System Commands from the telephone connected to the FXS Port.
Page 24: Test Calls
Ensure that the Routing Group configured for calls received on the SIP Trunk is 'FXS Port'. When remote caller calls SIP Trunk of SETU VFXTH, the call is routed to the FXS Port and the telephone instrument connected to that FXS Port starts ringing.
Page 25: Basic Settings
Basic Settings CHAPTER 4 The Basic Settings enable you to configure SETU VFXTH for basic functions. You will be able to operate and use the system efficiently, when you configure Basic Settings. To configure Basic Settings, • Click the Basic Settings link.
Page 26 Settings : Enables you to configure / edit the settings of a parameter further or to edit an entry or a record. • Default: Assigns factory set values to all the parameters on the page. Matrix SETU VFXTH System Manual...
Page 27 Click the Default button to assign factory set values to all the parameters on the page. • Click the Add button to add a new record. • Click the Delete button to delete a record. • Click the Close button to exit a window. Matrix SETU VFXTH System Manual...
Page 28: Region
Click Region. • In the Region list, click the name of the country where SETU VFXTH is installed. Default: India. When you change Region, an alert message will appear on the screen “Changing Region shall assign default values to all parameters of the system. Do you want to continue?” Click OK. All country specific parameters will be assigned default values.
Page 29 In the Language list, click the language in which you want the pages of the GUI, Jeeves, to be presented. SETU VFXTH can display the pages of the GUI, Jeeves, in English, Italian, Spanish, French, German, and Portuguese. Default: English.
Page 30 Operator: Operator parameter has three options: 1) No: If 'No' is programmed then Frequency2 is not applicable. 2) * (Modulation): If '*' (Modulation) is programmed then Frequency1 and Frequency2 are used as modulation i.e. F1 * F2. Matrix SETU VFXTH System Manual...
Page 31 OK. SETU VFXTH will restart and your changes will be saved. Ring Type • If required, you may change the Ring Type set automatically by SETU VFXTH for the Region you have selected. Default: 08 (India). • To change the Ring Type, click Settings...
Page 32 Message Wait Notification type as Ring on the FXS Port, a Short, Fast ring is played to indicate the arrival of a new message. If required, you may change the Message Wait Ring Type. By default, it is set to 16 for all Regions. Matrix SETU VFXTH System Manual...
Page 33 • To change the Message Wait Ring Type, click Settings The Ring Type table opens. SETU VFXTH supports 16 different Ring Types. • Note the Ring Type number that you want to assign. • Close the window to return to the Region page.
Page 34 Country Code • If required you may change the Country Code, set automatically by SETU VFXTH for the Region you have selected. Default: 91 (India). If you have kept Remove Country Code from CLI received check box enabled in the System Parameters, the system will remove the Country Code configured here from the CLI received on the source port.
Page 35: Network Parameters
IP Address: Enter the IP Address you obtained from your Network Administrator for the Ethernet Port of SETU VFXTH in this field. Make sure the IP Address does not conflict with that of any other device on the LAN. Default: 192.168.1.100 •...
Page 36 PPPoE: If your network uses PPPoE addressing, the PPPoE server will automatically assign an IP Address, Subnet Mask and Gateway Address to the Ethernet Port of SETU VFXTH. You need to enter the following information provided by your Internet Service Provider: •...
Page 37 IP address in the Dynamic DNS server. When the Ethernet Port of SETU VFXTH is assigned a dynamic IP, its new IP Address needs to be updated regularly with the various devices or networks which utilise the Ethernet Port settings to function. Dynamic DNS resolves this by mapping a domain name to the Ethernet Port IP Address, which SETU VFXTH can update in the Dynamic DNS Server.
Page 38 Select the VLAN/CoS check box to enable VLAN ID tagging on all packets generated by the system. Default: Disabled. • Enter the VLAN ID that you have assigned to the VLAN in which the SETU VFXTH is connected. The valid range for this is 0-4094. Default: 1. •...
Page 39 The IP Address will be restored to default value, 192.168.1.100 • If you press the Reset button for less than four seconds, SETU VFXTH will restart. • Along with the IP Address, a few other parameters will also be set to default. See “Restoring Default...
Page 40: Fxs Port
FXS Port SETU VFXTH supports sixteen FXS Ports. You can connect a PBX or any standard telephone instruments to the FXS Ports. SETU VFXTH also supports Thermal Shutdown. If the thermal temperature of the system increases above the threshold level, •...
Page 41 Click General. • Select the appropriate CLI Type, according to the CLI Type supported by the telephone instrument/PBX connected to the FXS Port. SETU VFXTH supports three signaling protocols for CLI on the FXS Port: • DTMF • FSK BellCore •...
Page 42 Wait”. Default: LED Lamp Whenever a new message arrives in the Mailbox of the SIP Trunk, SETU VFXTH gives notification to this (destination) FXS Port according to the type of Message Wait Notification you have selected here. To know more about this feature and the Notification options, see “Message Wait Indication on SIP...
Page 43 Calling Number check box. Default: Disabled. • In the Use Automatic Number Translation Table, select the ANT Table number you have configured for the Calling Numbers. Default: Table 5. If you have not configured the Automatic Number Translation Table, Matrix SETU VFXTH System Manual...
Page 44 ANT Table. • Click Submit to save the ANT Table and close the window. • Return to ANT parameter and assign the ANT Table you configured. • Click Submit to apply List. Matrix SETU VFXTH System Manual...
Page 45 Read further for instructions on selecting and configuring each of these destination port determination methods. If the destination number to be dialed out is an IP Address, SETU VFXTH will not check the Destination Port Determination Method. Instead, it will route the call using the SIP Trunk / Group programmed for IP Dialing.
Page 46 • Click Settings The Destination Port/Group for FXS Port window opens. • To change the default Routing Group and to create the Fallback Routing Group, under Edit, click Settings Matrix SETU VFXTH System Manual...
Page 47 In the in - order box, select the order in which the system should hunt for a free member FXS Port to route the call. Select Ascending to start hunting from the first to the last member FXS Port. Select Descending to start hunting from the last to the first member FXS Port. Default: Ascending. Matrix SETU VFXTH System Manual...
Page 48 (called party number) dialed by the caller. To apply this method, do the following: • In the Select Destination Port for routing calls box, click On the basis of Destination Number. • Click Settings Matrix SETU VFXTH System Manual...
Page 49 The FXS Port - Destination Port Determination - Destination Number Based table opens. • To add a new entry, click the Add button. The Add Entry window opens. You can add upto 100 entries. Matrix SETU VFXTH System Manual...
Page 50 “Group”. • Similarly, you can create group of sequential and not-sequential FXO Ports and SIP Trunks as members. • You may create the Fallback Routing Group. To do this, • Select the Apply check box. Matrix SETU VFXTH System Manual...
Page 51 The entry you added appears in the FXS Port - Destination Port Determination - Destination Number Based window. To edit the Routing Group and/or the Fallback Routing Group, do the following: • Under Edit, click Settings • The Edit Entry window opens. Matrix SETU VFXTH System Manual...
Page 52 In the If no match found in the Destination Number Table box, click the desired option for routing the call. You may select from the following options. • Route calls to Fixed Port • Disconnect Call Default: Route calls to Fixed Port. Matrix SETU VFXTH System Manual...
Page 53 FXS Port. By default, List Number 6 is assigned to the FXS Port. To apply Allowed - Denied Logic on the FXS Port, do the following: • Click the Allowed - Denied Logic check box. Default: Disabled. Matrix SETU VFXTH System Manual...
Page 54 Click Submit to save the entries and close the window. You may configure a different Number List as Allowed and Denied List. To know more about this feature, see “Allowed - Denied Logic” under “Number Lists”. Matrix SETU VFXTH System Manual...
Page 55 Valid range: 01–24 digits. Default: 24 digits. When the caller dials a number, the system will match it with the above end-of-dialing indications and accept the one that matches first. Matrix SETU VFXTH System Manual...
Page 56 PBX—that supports supplementary services that require dialing of Flash, like Call Hold, Call Transfer, Call Waiting, you must select the Subscriber Type for SETU VFXTH according to the extent of feature access you want on the FXS Port connected to the system.
Page 57 • In the AC Impedance list, select the appropriate impedance option according to the AC Impedance supported by the device connected to the FXS Port of SETU VFXTH. The device may be a phone or a PBX. You may select from the following impedance options: 600 ...
Page 58 To cancel the feature clear the check box of the feature. • By default all the features are disabled. 6. Class of Service (CoS) defines the set features of SETU VFXTH that the phone connected to the FXS Port is to be allowed access to. Matrix SETU VFXTH System Manual...
Page 59 Port box, select the number of the port you want to copy the settings To. • Click OK and close the window. • Once you have copied the settings, you can again edit the specific parameters of the FXS Port you copied the settings to. Matrix SETU VFXTH System Manual...
Page 60: Fxo Port
FXO Port SETU VFXTH supports sixteen FXO Ports, • interfaced with the analog trunk from CO and used to route incoming calls to FXS Port and SIP Trunks. - or - • interfaced with FXS Port of the PBX. To configure the parameters of the FXO Port, •...
Page 61 Supervision Timer. The range of this timer is from 00 to 99 seconds. Default: 2 seconds. • Battery Reversal: If this option is selected, SETU VFXTH will consider the call as matured only if reversal of polarity is detected on the FXO Port. Pseudo Answer Supervision Timer will not be applicable in this case.
Page 62 • Disconnect Tone 3 • Disconnect Tone 4 • Ring Back Tone • Error Tone 1 • Error Tone 2 • Busy Tone • Confirmation Tone • Feature Tone • Routing Tone • Intrusion Tone Matrix SETU VFXTH System Manual...
Page 63 Configure the Pause Timer to add delay, while a call is being made from the FXO Port. After the FXO Port goes Off-hook, SETU VFXTH adds some delay before dialing out the number. During this time, no digit is dialed by the system on the FXO Port. This is used when the exchange takes some time to detect that the FXO Port is Off-hook.
Page 64 Default: without any Destination Number If the destination number to be dialed out is an IP Address, SETU VFXTH will not check the Destination Port Determination Method. Instead, it will route the call using the SIP Trunk / Group programmed for IP Dialing.
Page 65 Calling Party Number Based Table. Whenever there is an incoming call on the FXO Port, SETU VFXTH will match the Calling Party Number with the entries of the Calling Party Number Based Table. If a match is found, the call will be routed to the destination number configured for that Calling Party Number.
Page 66 Configure the Calling Number Based table for the FXO Port. You can enter up to 500 Calling Party Numbers and their corresponding Destination Numbers in this table. • In the Calling Number column, enter the calling party numbers. The Calling numbers may consist of a maximum of 24 characters. Default: Blank. Matrix SETU VFXTH System Manual...
Page 67 To enable PIN Authentication for incoming calls on this port, select the Prompt caller to enter PIN check box. If you enable this check box, you must also configure the PIN Authentication Table. To know more about this feature and for detail instructions, see “PIN Authentication” under Advanced Settings. Matrix SETU VFXTH System Manual...
Page 68 Fixed Destination Number, see “Route to the Fixed Destination Number”. • after Answering the Call and Collecting the Digits, see “Route After Answering the Call and Collecting Digits”. Default: after Answering the Call and Collecting the Digits. Matrix SETU VFXTH System Manual...
Page 69 Calling Party Number Default: Fixed If the destination number to be dialed out is an IP Address, SETU VFXTH will not check the Destination Port Determination Method. Instead, it will route the call using the SIP Trunk / Group programmed for IP Dialing.
Page 70 Select Ascending to start hunting from the first to the last member FXS Port. Select Descending to start hunting from the last to the first member FXS Port. Default: Ascending. • To create a group of not-sequential FXS Ports as members, • Select a FXS Group. Matrix SETU VFXTH System Manual...
Page 71 In this method, incoming calls on the source port are routed to the destination port on the basis of the destination number (called party number) dialed by the caller. To apply this method, do the following: • In Select Destination Port for routing calls, click On the basis of Destination Number. • Click Settings Matrix SETU VFXTH System Manual...
Page 72 If the dialed number string is less than the configured minimum length, the call will be rejected. • In the Maximum Digits field, enter the maximum number of digits of the destination number the caller must dial for the system to route the call. Maximum length range: 01 to 24. Default:16. Matrix SETU VFXTH System Manual...
Page 73 (No Match Found). To change the default Routing Group and to create the Fallback Routing Group for the No Match Found numbers entry, Matrix SETU VFXTH System Manual...
Page 74 On the basis of Calling Party Number In this method, incoming calls on the FXO Port are routed to a specific port, as per the calling party's number. To apply this method, do the following: Matrix SETU VFXTH System Manual...
Page 75 • In Select Destination Port for routing calls, click On the basis of Calling Party Number. • Click Settings The FXO Port - Destination Port Determination - Calling Number Based table window opens. Matrix SETU VFXTH System Manual...
Page 76 Port to route the call. Select Ascending to start hunting from the first to the last member FXS Port. Select Descending to start hunting from the last to the first member FXS Port. Default: Ascending. Matrix SETU VFXTH System Manual...
Page 77 By default SIP Trunk 1-1(Ascending) is assigned as the Routing Group, for routing calls from numbers that do not match with any of the destination numbers you configured (No Match Found). To change the default Routing Group and to create the Fallback Routing Group for No Match Found numbers entry, Matrix SETU VFXTH System Manual...
Page 78 To delete an entry, select the check box and click Delete button. • Close the window if you have finished adding/editing entries. You can also configure the Calling Number Based Table from Advanced Settings. See “Destination Port Determination” under Advanced Settings. Matrix SETU VFXTH System Manual...
Page 79 FXO Port. By default, List Number 2 is assigned to the FXO Port. To apply Allowed - Denied Logic on the FXO Port, • Click the Allowed - Denied Logic check box. • To configure the Allowed Number List, click Settings Matrix SETU VFXTH System Manual...
Page 80 Called Number check box. Default: Disabled. • In the Use Automatic Number Translation Table, select the ANT Table number you have configured for the FXO Port. By default, Table 1 is assigned to the FXO Port. Matrix SETU VFXTH System Manual...
Page 81 By connecting the Source Port with the Destination Port immediately after the number is dialed, the caller can know the state of the call; if the called party is busy, not responding, not reachable or is rejecting the call. • Click Submit to save. Matrix SETU VFXTH System Manual...
Page 82 • In the CO Line Type field, select a line type that most closely models the line connecting SETU VFXTH to the Central Office. You may select a specific EIA line model from the eight options (EIA-0 to EIA-7) or a specific wire gauge and length (2000 ft.
Page 83 In countries where Low voltage is required, use lower TIP/RING voltage. Adjust the values of the Tip Ring Voltage to match your country requirements from the following options: • • • 3.35 • Default:3.5 volts. • Set the Ringer Impedance—High or Synthesized—for the FXO Port according to your country-specific requirement. Matrix SETU VFXTH System Manual...
Page 84 Port box, select the number of the port you want to copy the settings To. • Click the OK button and close the window. • Once you have copied the settings, you can again edit the specific parameters of the FXO Port you copied the settings to. Matrix SETU VFXTH System Manual...
Page 85: Sip Trunks
SIP Trunks SETU VFXTH supports thirty-two SIP Trunks. You can register all SIP Trunks with the same ITSP or with different ITSPs. These SIP Trunks may be configured as Proxy or Non-Proxy i.e. Peer-to-Peer. To configure a SIP Trunk, •...
Page 86 Select Peer-to-Peer, if you want to use the trunk for Peer-to-Peer (non-proxy) calls. • To configure SIP Trunk Mode as Proxy, do the following: • Select Proxy. You will be presented with the related registrar settings. Matrix SETU VFXTH System Manual...
Page 87 To add ‘rinstance’ in REGISTER message, keep the Add ‘rinstance’ in REGISTER check box selected. ‘rinstance’ is any random value which can be used by the SETU VFXTH to fetch its own contact binding, that is, to know the Registration Expiry Timer assigned by the server.
Page 88 “Digest Authentication” for more details. • Keep the Check SIP ID for Incoming SIP Message check box enabled, if you want SETU VFXTH to validate the SIP ID during an incoming call. Default: Enabled. • Keep the Check Proxy Address for Incoming SIP Message check box enabled, if you want SETU VFXTH to validate the Proxy Address during an incoming call.
Page 89 If you enable Send OPTIONS message as Heartbeat, you must configure the Heartbeat Interval. • Set the Heartbeat Interval (Seconds). It is the time period after which SETU VFXTH will send the OPTIONS message to the Proxy Server to check its availability. Valid range of Heartbeat Interval is from 10 to 999 seconds.
Page 90 • Set the No Response Timer. It is the time for which SETU VFXTH will wait for the response from the server for any request. If no valid response is received before the expiry of this timer, SETU VFXTH will fallback to alternate Registrar/Outbound Proxy Server or Routing Group/Fallback Routing Group for further processing of the call.
Page 91 In the Authentication ID field, enter the ID of your preference as Authentication ID. Default: Blank. • In the Authentication Password, enter a password of your choice as Authentication Password for the Authentication ID you have assigned. Default: Blank. • To configure the Peer-to-Peer Number strings, click Settings Matrix SETU VFXTH System Manual...
Page 92 Enter a name in the Name field to identify the number string you configured. It may be the name of your contact or any name you want to assign to the number string. The name may consist of 12 characters (maximum). Default: Blank. Matrix SETU VFXTH System Manual...
Page 93 Port received in the INVITE message (Source IP address from the Network layer and Source Port from the Transport layer) with the entries configured in the Trusted IP Address table. If a match is found, the call will be routed to the desired destination. Else the call will be rejected. Matrix SETU VFXTH System Manual...
Page 94 If you set Allowed IP Address for Incoming SIP Message to As per Trusted IP Address table or As per Peer to Peer table, you may also enable the Digest Authentication. Incoming calls on this SIP Trunk will be allowed only after the callers authenticate themselves with their User ID and Password. Default: Disabled. Matrix SETU VFXTH System Manual...
Page 95 Vocoders are voice codecs used to compress the data in RTP packets for optimum use of bandwidth and for ensuring voice quality. The Vocoders supported by SETU VFXTH appear in the Selected Codecs list in the following order of preference: G.
Page 96 SDP body with the remote peer. Default: Disabled. • Select the Send VAD check box, if you want SETU VFXTH to send VAD = no in the SDP for any offer and answer. Default: Disabled. SETU VFXTH will send VAD = no only if G.711 ( Law) or G.711 (A - Law) codec is present in the SDP offer or answer.
Page 97 Trunk check box. Default: Disabled. • By default, SETU VFXTH identifies the Called Party Number for routing the incoming call on the SIP Trunk further, by the number received in the Request-URI of the INVITE message. If you want the system to identify the Called Party Number from the ‘To Field’ of the INVITE message, in the Use Called Party Number From parameter, select the To Field option.
Page 98 In this method, all calls received on the SIP Trunk are directly routed to a fixed destination port configured for the SIP Trunk, regardless of the Destination Number. • To apply this method, in the Route all incoming calls (with CLI) list, click without any Destination Number. Matrix SETU VFXTH System Manual...
Page 99 You must configure the calling party numbers in the Calling Party Number Based Table. When there is an incoming call on the SIP Trunk, SETU VFXTH will match the CLI of the number received with the entries of this table. If a match is found for the number in the table, the call is routed to the destination port.
Page 100 The Calling Number Based Table page opens. You can store up to 500 numbers in this table. • In the Calling Number column, enter the calling party numbers. The Calling numbers may consist of a maximum of 24 characters. All ASCII characters are allowed. Default: Blank. Matrix SETU VFXTH System Manual...
Page 101 You must configure the DDI numbers in the DDI Number Based Table. When there is an incoming call on the SIP Trunk, SETU VFXTH will match the CLI of the number received with the entries of this table. If a match is found for the number in the table, the call is routed to the destination port.
Page 102 # are allowed. Default: Blank. • To apply Reverse DDI for each number, select the Reverse DDI Apply check box and select the Reference ID for the number. Default: Apply Reverse DDI is disabled and Reference ID is 1. Matrix SETU VFXTH System Manual...
Page 103 Default: Fixed • If the destination number to be dialed out is an IP Address, SETU VFXTH will not check the Destination Port Determination Method. Instead, it will route the call using the SIP Trunk / Group programmed for IP Dialing.
Page 104 In the Select Destination Port for routing calls box, click Fixed. • Click Settings The Destination Port/Group for SIP Trunk window opens. • To change the default Routing Group and create the Fallback Routing Group, under Edit, click Settings Matrix SETU VFXTH System Manual...
Page 105 To create a group of not-sequential FXS Ports as members, • Select an FXS Group. • Select FXS Group number. Default:1. • Click Settings . The FXS Groups window opens. Create the FXS Group. See “Group” detailed instructions. Matrix SETU VFXTH System Manual...
Page 106 To apply this method, do the following: • In the Select Destination Port for routing calls box, click On the basis of Destination Number. • Click Settings The SIP Trunk - Destination Port Determination - Destination Number Based table window opens. Matrix SETU VFXTH System Manual...
Page 107 Received Called Party Default: Received Calling Party CLI Number to be sent on Destination Port is applicable only when FXS Port or FXS Group is selected as the Destination Port (Routing Group). • Create the Routing Group. Matrix SETU VFXTH System Manual...
Page 108 No Match Found entry. To change the default Routing Group and to create the Fallback Routing Group for the No Match Found numbers, Matrix SETU VFXTH System Manual...
Page 109 In this method, incoming calls on the SIP Trunk are routed to a specific port, as per the calling party's number. To apply this method, do the following: • In the Select Destination Port for routing calls box, click on the basis of Calling Party Number. Matrix SETU VFXTH System Manual...
Page 110 • Click Settings The SIP Trunk - Destination Port Determination - Calling Number Based table window opens. Matrix SETU VFXTH System Manual...
Page 111 Select Ascending to start hunting from the first to the last member FXS Port. Select Descending to start hunting from the last to the first member FXS Port. Default: Ascending. • To create a group of not-sequential FXS Ports as members, • Select FXS Group. Matrix SETU VFXTH System Manual...
Page 112 Table, that is, the No Match Found entry. To change the default Routing Group and to create the Fallback Routing Group for the No Match Found numbers, • For the No Match Found entry, under Edit, click Settings Matrix SETU VFXTH System Manual...
Page 113 List Number 7 is assigned to the SIP Trunk. • Denied Numbers List: This list contains the numbers that are to be restricted from being dialed out from the SIP Trunk. By default, List Number 8 is assigned to the SIP Trunk. Matrix SETU VFXTH System Manual...
Page 114 The Number List page opens in a new window. • By default, Number List 7 is assigned as Allowed Number List. • Enter the numbers you want the system to allow to be dialed in this list. Matrix SETU VFXTH System Manual...
Page 115 With the Black Listed Callers feature you can block incoming calls from specific addresses/numbers on SIP Trunks. Thus all incoming calls from the numbers you have 'blacklisted' will be automatically rejected by SETU VFXTH. To apply Black Listed Callers on SIP Trunk, •...
Page 116 Keep the Display Received URI as Calling Name check box enabled. When Name is received in the "FROM" header for incoming call on the SIP Trunk, SETU VFXTH will display name and received URI as calling name. When Name is not received, SETU VFXTH will display only the received URI as calling name.
Page 117 Caller ID after applying Reverse DDI logic Default: SIP ID configured • SETU VFXTH also offers flexible options for sending Identity header in INVITE message during an outgoing call. Select the desired option according to the Identity header supported by your service provider. You may select: •...
Page 118 If you have enabled CLIR and Identity header in INVITE message is configured other than None, then SETU VFXTH will add Privacy = ID header in the INVITE message during an outgoing call from the SIP Trunk. • If you select P-Preferred Identity or P-Asserted Identity in Identity header in INVITE message, then select the desired option for sending SIP ID in Identity header of INVITE message during an outgoing call.
Page 119 In the Use Automatic Number Translation Table, select the ANT Table number you have configured for the Calling Numbers. Default: Table 5. If you have not configured the Automatic Number Translation Table, • Click Settings . The Automatic Number Translation Table page will open in a new window. Matrix SETU VFXTH System Manual...
Page 120 By connecting the Source Port with the Destination Port immediately after the number is dialed, the caller can know the state of the call; if the called party is busy, not responding, not reachable or is rejecting the call. • Click Submit to save. Matrix SETU VFXTH System Manual...
Page 121 The number of simultaneous SIP calls depends on the number of simultaneous calls allowed by the ITSP with whom you have subscribed this SIP Trunk. The SETU VFXTH supports 32 simultaneous calls. Ask your ITSP about the number of simultaneous SIP calls supported on this SIP Trunk.
Page 122 NAT Type. Default: Disabled. • Select Router’s IP Address, if your SETU VFXTH is located behind the NAT router (any type). Make sure you disable Outbound Proxy on SIP Trunk and configure the same IP Address under NAT settings in the “System Parameters”...
Page 123 Code”. • Select Send "user=phone" in SIP URI check box, if you want SETU VFXTH to add user=phone in the Request URI/From/To header of the INVITE message. Default: Disabled. SETU VFXTH will send user=phone in SIP URI, only if the SIP ID is numeric.
Page 124 Trunk box, select the number of the port you want to copy the settings To. • Click OK and close the window. • Once you have copied the settings, you can again edit the specific parameters of the SIP Trunk you copied the settings to. Matrix SETU VFXTH System Manual...
Page 125: Login Password
Login Password You can configure SETU VFXTH using Jeeves and by dialing commands from a telephone (only specific parameters). Login Password for Jeeves To configure the system, you must log into the Jeeves using the Jeeves Password. The default Jeeves Password is 1234.
Page 126 This Password must not be less than 4 digits and can be of upto 8 digits. Digits 0-9 are allowed. The default Command Password is 1234. You may change this Password using Jeeves. To change the Command Password: • Log into Jeeves. • Click the Basic Settings link to expand. • Click Login Password. Matrix SETU VFXTH System Manual...
Page 127 • Release the Reset button. • If you press the Reset button for less than four seconds, SETU VFXTH will restart. • When you restore the default Jeeves Password (1234), a few other parameters will also be set to default. See “Restoring Default Settings using the Reset button”...
Page 128: Date-Time Settings
Date-Time Settings Real Time Clock SETU VFXTH has its own Real Time Clock (RTC) to store date and time. When you select the Region, the RTC parameters will be set automatically. However, the RTC can drift over a long period. So, you may check and reset the RTC values at regular intervals to correct this drift.
Page 129 7. In most countries in Asia and Africa, and in certain countries of South America, DST is not observed. 8. SETU VFXTH sets its Date and Time according to the Time Zone you selected, and synchronizes the time according to the SNTP Server you selected.
Page 130 Date-Month Wise, if the DST in your country starts and ends on a particular date of the month. For example, if DST starts on October 12 and ends on March 15. Default: Day-Month Wise. • If you selected the Day-Month Wise option, configure the Start and End time for DST. Matrix SETU VFXTH System Manual...
Page 131 01:00 hours GMT at the start of DST and set back by one hour at 01:00 hours GMT when DST ends. Let us take the example of setting DST, if SETU VFXTH were installed in Berlin, Germany. In the year 2011, the DST in Berlin starts on Sunday, 27 March at 02:00:00 hours and ends on Sunday 30 October at 03:00:00 hours.
Page 132 Set Time to 02:59:59. Click Submit to save DST settings. On Sunday 27 March at 01:59:59 the SETU VFXTH will set the clock forward by 1 hour. On Sunday 30 October, SETU VFXTH sets the clock back by 1 hour at 02:59:59.
Page 133: Advanced Settings
System Name, NAT and SIP related parameters, Server Port, Certificates etc. To change the settings of System Parameters, • Log into Jeeves. • Click the Advanced Settings link. • Click the System Parameters link to open the page. Matrix SETU VFXTH System Manual...
Page 134 Click General to expand and configure the following. • System Name: You can assign a name to SETU VFXTH as ‘System Name’. This name can serve as an identifier, when there is more than one SETU VFXTH connected in the same LAN network.
Page 135 • Ring Timer (Seconds): It is the duration for which SETU VFXTH will play a ring on the FXS Port to indicate an incoming call. The Ring timer is loaded when the call is placed on the FXS Port, that is, either there is a ring event on the FXS Port or call waiting beeps in case the FXS Port is busy.
Page 136 STUN Server Address: Port: STUN (Simple Traversal of UDP through NAT) server facilitates traversing through most NATs, except symmetric NATs. So, if your router has Symmetric NAT, do not configure STUN. If your SETU VFXTH is located behind a NAT router that is other than symmetric, use STUN.
Page 137 Keep Alive Interval is 001–999 seconds. Default: 120 seconds. • TCP NAT Keep Alive: When SETU VFXTH is connected behind a NAT router, and SIP messages are transported over TCP, NAT Keep Alive messages must be sent to refresh the binding in the NAT router.
Page 138 • RTP Listening Port: This is the port on which the SETU VFXTH listens for RTP Packets. This port is also used as the source port for sending RTP packets to the remote peer. The valid range for this port is 1032–65535.
Page 139 • Message Wait Ring Interval Timer: This is the time after which SETU VFXTH will play the Message Wait Ring again on the FXS Port for Message Wait Notification, if the previous ring remains unanswered by the user. The range of this timer is 001–999 minutes. Default: 1 minute.
Page 140 • Telnet Server Port: You can access SETU VFXTH using Telnet. By default, Telnet Server Port is 23. You can change it as per your requirement. Valid range of the port is: 23, 1031-65535. Management/Security • Click Management/Security to expand and configure the following.
Page 141 Enter the IP Addresses and their respective Subnet Mask in the table. • Click Submit and close the window. SETU VFXTH will allow system access only to those users whose IP Address matches with the one configured in the IP Address List for Server Access. •...
Page 142 When you the press Reset button to restore the default IP Address or to restore default Jeeves Password, a few “Management/Security” parameters and “Server Port” will also be set to default. See “Restoring Default Settings using the Reset button” for details. Matrix SETU VFXTH System Manual...
Page 143: Number Lists
A Number List is a data structure that constitutes digit and character strings which must be configured for the system to support the features listed below. SETU VFXTH offers as many as 24 number lists. Each number list can store up to 64 entries of a maximum of 24 characters each.
Page 144 Basic Settings. Now, whenever there is an incoming call on the SIP Trunk you have applied this feature, the SETU VFXTH will match the number with the Blacklisted Callers’ Number list you have assigned. If the number matches with any of the numbers you have blacklisted, the system will reject the call.
Page 145 Call Detail Record Filters SETU VFXTH enables you to generate reports of Call Detail Records using different filters. You can generate Call Detail Record report of calls made to specific numbers (Called Party Numbers) and calls received from specific numbers (Calling Party Numbers).
Page 146 Under Handling of Incoming Calls, select the Reject Calls from Blacklisted Callers check box. • In Blacklisted Callers Number List field, select 22. • Click Submit. You can also configure Number Lists on the respective FXO, SIP, FXS Ports from the “Basic Settings” pages of Jeeves. Matrix SETU VFXTH System Manual...
Page 147: Automatic Number Translation (Ant)
“FXO Port”. Now, whenever there is a call on/from the Port on which you have applied this feature, SETU VFXTH will match the Called/Calling number with the Number configured in the Automatic Number Translation Table using the best match found logic.
Page 148 When the Automatic Number Translation table is configured, the user must simply dial the destination number, say, 0014125126508. • The system matches the Called number with the Number configured in the ANT table. The number matches with the entry ‘00’ stored in the table. Matrix SETU VFXTH System Manual...
Page 149 To configure a range of numbers you can use the character $. Here, $ is any number from 0 to 9. For example, if you want SETU VFXTH to add prefix ‘1’ to all 10 digit numbers dialed by the user, configure Number as $$$$$$$$$$, Strip Digit as 0 and Add Prefix as 1.
Page 150 In the Add Prefix column, enter the number string(s) that you want the system to add as prefix to the Called/Calling Number. You can enter maximum 24 characters. Characters 0-9, *, #, +, ~ (Wait for Answer), ^ (Pause) are allowed. Default: Blank. • Click Submit to save your entries. Matrix SETU VFXTH System Manual...
Page 151: Destination Number Determination
Destination Number Determination: SIP-Calling Number Based table. When there is an incoming call on the SIP Trunk, SETU VFXTH will match the Calling Party Number with the entries of the Calling Party Number Based Table. If a match is found, the call is routed to the destination port.
Page 152 Destination Numbers. Destination numbers may consist of a maximum of 24 characters. Digits 0 to 9, *, # and (.) dot are allowed. Default: Blank. • Click Submit to save your entries. • Click Default All to clear all the entries. Matrix SETU VFXTH System Manual...
Page 153 The DDI Number Based Table page opens. • There are two ways to generate the DDI Numbers: • Using the DDI Number Generation Button to automatically generate the DDI Number Table. • Entering each DDI Number manually. Matrix SETU VFXTH System Manual...
Page 154 Apply Reverse DDI (for all DDI Numbers): When the user makes a call from the assigned DDI number, this number will be displayed to the called party. Select the check box to apply Reverse DDI logic on all DDI Numbers. Matrix SETU VFXTH System Manual...
Page 155 For detailed instruction for generating DDI Numbers manually, see “Route on the basis of DDI Number” under SIP Trunks. • Click Submit to save your entries. • Click Default All to clear all the entries. Matrix SETU VFXTH System Manual...
Page 156: Destination Port Determination
Determination of Destination Number • Determination of Destination Port SETU VFXTH supports different methods of determining the destination port for the calls originated on SIP Trunks, FXO Ports and FXS Ports. Destination Port Determination on FXS Ports For FXS Port, the system supports the following methods for Destination Port Determination: •...
Page 157 • Log into Jeeves. • Click the Advanced Settings link. • Under Destination Port Determination, click the FXS-Destination Number Based link. • The FXS Port - Destination Port Determination - Destination Number Based table opens. Matrix SETU VFXTH System Manual...
Page 158 • Select the CLI Number to be sent on Destination Port. You may select from the following options: • Received Calling Party • Received Called Party Default: Received Calling Party Matrix SETU VFXTH System Manual...
Page 159 The entry you added appears in the FXS Port - Destination Port Determination - Destination Number Based window. To edit the Routing Group and/or the Fallback Routing Group, do the following: • Under Edit, click Settings Matrix SETU VFXTH System Manual...
Page 160 To delete an entry, select the check box of the entry and click the Delete button. • Close the window if you have finished adding/editing entries. Configuring Destination Number Based Table for SIP/FXO Ports • Log into Jeeves. • Click the Advanced Settings link. Matrix SETU VFXTH System Manual...
Page 161 Port to route the call. Select Ascending to start checking from the first to the last member FXS Port. Select Descending to start checking from the last to the first member FXS Port. Default: Ascending. Matrix SETU VFXTH System Manual...
Page 162 To delete an entry, select the check box and click the Delete button. • Close the window if you have finished adding/editing entries. Configuring Calling Number Based Table for SIP/FXO Ports • Log into Jeeves. • Click the Advanced Settings link. Matrix SETU VFXTH System Manual...
Page 163 To create a group of not-sequential FXS Ports as members, • Select a FXS Group. • Select FXS Group number. Default:1. • Click Settings . The FXS Groups window opens. Create the FXS Group. See “Group” detailed instructions. Matrix SETU VFXTH System Manual...
Page 164 • Click Submit and close the window. • Follow the same steps as above to add another entry to this table. • To delete an entry, select the check box and click the Delete button. Matrix SETU VFXTH System Manual...
Page 165: Group
Group SETU VFXTH supports the following methods of determining the destination port for the calls originated on FXO Ports, FXS Ports and SIP Trunks. • Fixed • on the basis of Destination Number • on the basis of Calling Party Number The Destination Port Determination Method- on the basis of Calling Party Number is not applicable for the FXS Port.
Page 166 To create Groups of FXO Ports, click FXO Group. You can create 12 Groups with 16 members in each group. You can create 12 Groups with 32 members in each group, if your SETU VFXTH supports 32 FXO Ports. •...
Page 167: Peer To Peer Dialing
• SETU VFXTH is installed at Location B. • Peer-to-Peer calls can be made between the two locations with suitable configuration of SETU VFXTH and the Gateway (SETU VFX). • At Location A, you need to do the following configuration in SETU VFX: •...
Page 168 Keep the SIP ID field of the SIP Trunk blank. In the Router, you must configure the same SIP and RTP Ports as configured in the SETU VFXTH. In other words, you must configure Port Forwarding for SIP and RTP on the Router.
Page 169 121.124.130.110, as the system finds a matching entry for the dialed number in the Peer-to-Peer table. • On receiving a call, the SETU VFXTH at location B routes this call through the FXO Port of the SETU VFXTH to the FXS Port user 3001.
Page 170 Click the Advanced Settings link. • Click the Peer-to-Peer Dialing link. The Peer-to-Peer table opens. In the Peer-to-Peer table, the first entry is reserved for No Match Found. • Click the Add button. A new window opens. Matrix SETU VFXTH System Manual...
Page 171 9, *, #, X, T, Comma [,], Hyphen [-], Caret [^]. Default: Blank. If the number to be dialed out is <dialednumber@destination address>, for example, 1234@abc.com, you must enter 1234 in this field. Wildcard Characters SETU VFXTH supports following characters. Character Description X (letter X) X represents any single digit from 0 to 9.
Page 172: Pin Authentication
When a match is found in the table, SETU VFXTH authenticates the caller and allows the call to be processed. If the digits dialed by the caller do not match with any entry in this table, SETU VFXTH allows the caller to make two more attempts to dial a valid PIN Number and Password.
Page 173 Now, enable PIN Authentication on the desired FXO Ports on which you have selected the incoming call routing option After Answering the Call and Collecting Digits under Handling of Incoming Calls. Enable Prompt caller to enter PIN on the port. Under “Basic Settings” “FXO Port” for instructions. Matrix SETU VFXTH System Manual...
Page 174: Digest Authentication
SIP Trunk mode is Peer to Peer and Allowed IP Address for Incoming SIP Message is set to Any. When you enable this feature on a SIP Trunk, for all incoming calls (SIP requests), • SETU VFXTH will challenge the identity of the calling party, i.e. the SIP device initiating the request to send its digest credentials. •...
Page 175 SIP Trunks. • Enter the user name assigned to the caller/calling device in the User ID field. SETU VFXTH will use this User ID to match the digest credentials sent by the caller/calling devices when challenged.
Page 176: Static Routing
Static Routing Table is required when you have more than one router (gateway) in your network and you want SETU VFXTH to send packets to multiple routers/gateways for different types of calls. Static Routing Table helps route calls between point to point sites (connected through Multi Protocol Label Switching-MPLS, Frame Relay, etc.) and to public internet at the same time.
Page 177 • The Gateway Address where the IP packets are to be sent. When SETU VFXTH sends packets, if the final destination IP Address and SETU VFXTH are not in the same Subnet, the system will check the Static Routing Table.
Page 178 The Gateway Address must be in the same subnet as SETU VFXTH. • Click Submit to save your entries. To take the above example further, the Static Routing Table of SETU VFXTH at Location A should be configured as: Index...
Page 179: Access Codes
Access Codes Access Code is a string of digits dialed to use a feature. SETU VFXTH users, can access the following features and facilities by dialing the Access Codes assigned to them from a phone. Feature/Function Default Access Code System Engineer (SE) Programming...
Page 180 • Change the default access code for the feature/facility, as required. Access Codes can be a maximum of 4 digits and digits 0-9, *, # and ^ are allowed. • Click Submit to save changes. Matrix SETU VFXTH System Manual...
Page 181 Call' and 'Disconnect Call' which can be dialed from any port. • If your system variant does not support FXS Ports, you will only be able to use the Access Codes for 'Making New Call' and 'Disconnect Call'. Matrix SETU VFXTH System Manual...
Page 182: Emergency Number Dialing
The system does not check Allowed-Denied Logic and Automatic Number Translation table when dialing an Emergency Number. SETU VFXTH will dial out an emergency number only if the FXO Ports/SIP Trunks included in the Routing Group for the number are enabled.
Page 183 Select Ascending to start hunting from the first to the last member FXO Port. Select Descending to start hunting from the last to the first member FXO Port. Default: Ascending. • To create a group of not-sequential FXO Ports as members, • Select an FXO Group. Matrix SETU VFXTH System Manual...
Page 184 Similarly, you can create group of sequential and not-sequential SIP Trunks as members. • Click Submit to save changes you made. Close the Add Entry/Edit Entry window. • The entries you added appear on the Emergency Numbers page. Matrix SETU VFXTH System Manual...
Page 185: Call Disconnect Tone
When the system detects disconnect tone on the FXO Port and if it matches with the Frequency and Cadences you have set, the call will be disconnected and the FXO Port will be released. • Click Submit to save. Matrix SETU VFXTH System Manual...
Page 186: Prefix To Domain Name Conversion
Prefix codes which the FXS user can dial. Now, it is necessary that the number string dialed by SETU VFXTH is understood by the ITSP through which the call is routed. So, an appropriate Prefix Code is assigned to the Domain of the ITSP through which the calls is to be routed.
Page 187 For each Prefix Code you assigned, enter the corresponding Domain name in the Domain Name field. The Domain Name may consist of a maximum of 40 characters. • Click Submit to save your entries. • You may log out of Jeeves. Matrix SETU VFXTH System Manual...
Page 188: Certificate Manager
Certificate Manager SETU VFXTH supports certification for TLS, Web Server, Firmware Upgrade, Configuration Upgrade and TR-069. SETU VFXTH supports two types of Certificates: Self-Signed Certificate and CA Signed Certificate. Self-Signed Certificate A self-signed certificate is created by the clients themselves or by the Servers and then given to their clients. It means that you yourself become the Certificate Authority (CA), create a CA Certificate and sign it.
Page 189 In State or Province Name - full name, enter the full name of your state or province. • In Locality Name (eg. city), enter the name of your city. • In Organization Name (eg. company), enter the name of your organization where SETU VFXTH is installed. Matrix SETU VFXTH System Manual...
Page 190 In Organizational Unit Name (eg. section), enter the name of the unit or section or domain of your organization, where SETU VFXTH is installed. • In Common Name (eg. System's hostname/IP Addr.), enter your Server’s (SETU VFXTH) host name or IP Address. This Common Name serves as the distinguishing factor. •...
Page 191 A sample Self-Signed CA Certificate is as under: In the above Self-Signed CA Certificate: • C = Country • ST = State • = Location • O = Organization • OU = Organization Unit • CN = Common Name Matrix SETU VFXTH System Manual...
Page 192 To avoid this, it is recommended that you create the Certificates and then provide it to your clients. To create the System Certificate, • Click the Certificate Manager link. • Click the Generate link. Matrix SETU VFXTH System Manual...
Page 193 • In Locality Name (eg. city), enter the name of your city. • In Organization Name (eg. company), enter the name of your organization where SETU VFXTH is installed. • In Organizational Unit Name (eg. section), enter the name of the unit or section or domain of your organization, where SETU VFXTH is installed.
Page 194 .cer, .crt and .pem. Valid format for key are .pem and .key (Base64 encoded ASCII file). • To delete a System Certificate, select the check box of the respective Certificate and click Delete. • To download the System Certificate, click Download Matrix SETU VFXTH System Manual...
Page 195 Validity represents the valid period of this certificate. • Subject represents the credentials of the Server / User requesting for certification. Here, OU=R&D i.e. for whom the certificate is signed. • Public Key represents the public key of the certificate. Matrix SETU VFXTH System Manual...
Page 196 In Country Name - 2 letter code (eg. IN), enter the name (two letter code) of your country. • In State or Province Name - full name, enter the full name of your state or province. • In Locality Name (eg. city), enter the name of your city. Matrix SETU VFXTH System Manual...
Page 197 • In Organization Name (eg. company), enter the name of your organization where SETU VFXTH is installed. • In Organizational Unit Name (eg. section), enter the name of the unit or section or domain of your organization, where your SETU VFXTH is installed.
Page 198 .cer, .crt and .pem. Valid format for key are .pem and .key (Base64 encoded ASCII file). To delete a System Certificate, select the check box of the respective Certificate and click Delete. To download the System Certificate, click Download Matrix SETU VFXTH System Manual...
Page 199: Call Detail Record
Calls Originated from SIP Trunks, the system will not generate report for calls originated from SIP Trunks. SETU VFXTH supports maximum 2000 call record entries and these entries are stored using the First In First Out (FIFO) method.
Page 200 Calls originated from FXS Ports: The system will generate report of calls that originated from FXS Ports, i.e. calls that were received on the FXS Ports of SETU VFXTH for further routing. To generate report using this filter for both FXS Ports, set the range of the FXS Ports in the From and To fields.
Page 201 Enter the range of PIN Numbers in the From and To fields. PIN Numbers can be in the range of 0000 to 9999. The system will generate Report of all calls having PIN Numbers within the range you have set will be generated and displayed under the ‘PIN Numbers’ column of the report. Matrix SETU VFXTH System Manual...
Page 202 To print the CDR report in Excel format, open the file CdrReport.csv • To print the CDR report in text format, open the file CdrReport.txt • Print the file you opened. You may change the formatting of the text in the files before printing. Matrix SETU VFXTH System Manual...
Page 203 The total number of records is displayed below the table. On each page, 15 records are displayed. Click the page number at the bottom of the report to view the next 15 records. The Alert message No Calls to Display will appear, if there are no records to be displayed. Matrix SETU VFXTH System Manual...
Page 204: Features
Features CHAPTER 6 SETU VFXTH offers users the following telephony features, which they can access by dialing Access Codes. • Call Hold • Making a Second Call • Call Toggle • Call Transfer - Attended and Blind • Call Forward •...
Page 205 If you go On-hook during the feature tone, your call with party A will be disconnected. • If you go On-hook during error tone, you will get ring back. If you go Off-hook when your phone rings, you will get connected with party A again. Matrix SETU VFXTH System Manual...
Page 206: Making A Second Call
For example, after making a second call, you can toggle between the first and the second call using the Call Toggle access code; you can also conduct a Conference with both parties, by dialing the Conference access code. Matrix SETU VFXTH System Manual...
Page 207: Call Toggle
This way, you can talk alternately to A and B, by dialing Flash-#2 again. When toggling between calls, you can disconnect the call you are currently in speech with, by going On- hook. You can also use Call Toggle (Call Split) during a Conference call. Matrix SETU VFXTH System Manual...
Page 208: Call Transfer - Attended
Attended Call Transfer is when you transfer the call to the desired party after consulting the party and or obtaining their consent for transfer. In the case of SIP to SIP Attended Transfer SETU VFXTH enables the transferor to know the result of the transfer activity, whether the call has been transferred successfully or not.
Page 209: Call Transfer - Blind
Blind Transfer is when you transfer the call to the desired party, without informing the party of the transfer. SETU VFXTH enables the transferor to know the result of the transfer activity, i.e. whether the call has been transferred successfully or not. As soon as the transferror dials the Blind Call Transfer access code, SETU VFXTH loads the Transfer Notification Timer.
Page 210 If the transfer has timed out, i.e. the Notification Timer has expired and no notification has been received from the transfer target (party B, in this case) you will get error tone, followed by system standby. Matrix SETU VFXTH System Manual...
Page 211: Call Forward
Timer for the phone to answer. This timer is configurable, and is set to 45 seconds as default. If the phone does not answer before the timer expires, SETU VFXTH considers it as No Reply and forwards it to the desired destination number.
Page 212 Dial #131-0 to cancel. • Dial #135-Destination Number-End-of-Dialing to configure destination number. Where, Destination number can be of maximum 24 digits. End of Dialing may be # or * as configured in the system. Call Forward - Busy Matrix SETU VFXTH System Manual...
Page 213 End of Dialing may be # or * as configured in the system. • Dial #139-Timer to set the Call Forward No Reply Ring Timer. Where, Timer value is from 1 to 99 seconds. Default: 15 seconds. • Replace handset. Matrix SETU VFXTH System Manual...
Page 214: Conference
When B answers the call and you are in speech with B, dial Flash-#8. • Three-way speech will be established between you, party A and party B. • Replace the handset at the end of your conversation. • The conference will be terminated. Matrix SETU VFXTH System Manual...
Page 215: Dnd
On the FXS Port page, click Supplementary Services link to expand. • To set DND, select the Do Not Disturb (DND) Enable check box. Default: Disabled. To cancel, clear the check box. • Click Submit to save. • Log out of Jeeves. Matrix SETU VFXTH System Manual...
Page 216 To set or cancel DND from the Phone, • Lift handset of your phone. • Dial #18-1 to set. • Dial #18-0 to cancel. • Replace handset. Matrix SETU VFXTH System Manual...
Page 217: Call Waiting
Call Waiting When your phone is busy, the Call Waiting feature notifies you about another incoming call in the form of beeps. The Call Waiting feature of SETU VFXTH allows you to: • reject the waiting call. • ignore the waiting call •...
Page 218 The beeps will stop, you will remain in speech with Party A. • To Ignore the waiting call, dial Flash-#32. The beeps will continue, you will remain in speech with Party A. • To Put current call on hold and accept the waiting call, dial Flash-#33. Matrix SETU VFXTH System Manual...
Page 219 The beeps will stop, Party A will be put on hold and you will be in speech with Party B. • To Disconnect current call and accept the waiting call, dial Flash-#34. The beeps will stop, Party A will be disconnected and you will be in speech with Party B. Matrix SETU VFXTH System Manual...
Page 220: Message Wait Indication On Sip Trunks
Send MWI Notification on. Whenever a new message arrives in the mailbox of the SIP Trunk, SETU VFXTH gives notification to the FXS Port you have selected as destination, according to the type of Message Wait Notification you have selected on the FXS Port.
Page 221 You can retrieve messages by dialing the access code for Using Voice Mail of the Service Provider #7 (default) from the phone connected to SETU VFXTH. This access code is configurable. So, you can also change it to the desired value. For instructions, see “Access...
Page 222: Call Pick-Up
SETU VFXTH will store the number of the FXS Port from which the call was answered (from which access code for Call Pick-up was dialed and the speech was connected) as the Destination port in the Call Detail Record (CDR). To know more, see “Call Detail Record”.
Page 223: Hotline
Whenever A goes Off-hook, SETU VFXTH plays dial tone and waits for the duration of the Hotline Timer. • If A does not dial any digit during this Timer, on the expiry of the Timer, SETU VFXTH dials out B’s number. Allowed-denied number logic is applied for the hotline number.
Page 224 Destination number can be of maximum 24 digits. Digits 0 to 9, *, #, dot (.) are allowed. End of Dialing may be # or * as configured in the system. • Dial #153-Timer to set the Hotline Timer. Where, Timer value is from 1 to 9 seconds. Default: 5 seconds. Matrix SETU VFXTH System Manual...
Page 225: Supplementary Services Of Service Provider
Port of SETU VFXTH. If you want to use the features of SETU VFXTH, you must select Gateway as the Subscriber Type for the FXS Port of SETU VFXTH. However, you will be able to access the features of the service provider in the Gateway mode, by dialing Flash, followed by #4, the Access Code for Using Supplementary Services of Service Provider.
Page 226: Making A New Call Using Access Code
Making a New Call using Access Code This feature enables callers to disconnect the current call and make a new call using SETU VFXTH without getting disconnected from the system. This feature is useful when you want to allow users to make multiple calls without getting disconnected each time their call ends.
Page 227: Disconnecting A Call Using Access Code
Disconnecting a Call using Access Code SETU VFXTH enables users to disconnect a call using an access code. When the call disconnect access code is dialed, SETU VFXTH releases the port engaged in the call. Configuring Call Disconnection using Access Code To provide this feature to users, you must enable Allow Call Disconnection using Access code on the SIP Trunks and FXO Ports.
Page 228: Ip Dialing
SIP Trunk or a SIP Group for IP Dialing. When a number is dialed out from the source port, SETU VFXTH routes the call to the desired destination as per the routing mechanism configured for that port. However, when an IP Address is dialed from the source port of SETU VFXTH, the system does not check the Destination Port Determination method you have configured for that port, instead it routes the dialed IP Address through the SIP Trunk or SIP Group you configured for IP Dialing.
Page 229: Maintenance
• The protocol to be used: HTTP, HTTPS. When SETU VFXTH installed at a customer site gets connected to the ITSP network, it will automatically compare its current firmware with the firmware files stored on the Provisioning Server. The matrix_firmware.html file helps SETU VFXTH decide which firmware it should upgrade to.
Page 230 After SETU VFXTH decides the Firmware Version/Revision to upgrade to, it will send the request for the firmware files to the Provisioning Server. Once the respective firmware files are received, SETU VFXTH will upgrade its current firmware with the new firmware without the intervention or assistance of a technician.
Page 231 224). To fetch Provisioning Server Address using DHCP, keep the Server Address: Port field blank. If you want SETU VFXTH to get the Server Address from the DHCP server, keep this field blank. Make sure that you also set the Connection Type on the “Network Parameters”...
Page 232 If SETU VFXTH fails to connect to the Provisioning Server, it will make 10 attempts at a regular interval of 10 seconds between each attempt to establish the binding. Even then, if it is unable to establish the binding, it will abort the Auto upgrade process.
Page 233 VFXTH. Before upgrading Firmware from server, you can also choose the firmware with which you want to upgrade your SETU VFXTH. • To view the firmware files available on the Server, click the Check Firmware Available on Server button. Matrix SETU VFXTH System Manual...
Page 234 • A list of Firmware files available on the server appears in a new window. • If you want to upgrade SETU VFXTH with the desired Firmware, select the Firmware and click the Submit button. • SETU VFXTH will upgrade itself with the firmware you select.
Page 235: Configuration Upgrade
Auto Configuration Server (ACS). This feature is useful for ITSPs that have deployed a large number of SETU VFXTH. ITSPs can store the configuration files of each SETU VFXTH that they have provided to their customers on the Auto Configuration Server (ACS).
Page 236 Option 224). To fetch Auto Configuration Server Address using DHCP, keep the Server Address: Port field blank. If you want SETU VFXTH to get the Server Address from the DHCP server, keep this field blank. Make sure that you also set the Connection Type on the “Network Parameters”...
Page 237 SETU VFXTH should check for configuration updates every month. • Request Timeout: Request Timeout is the time for which SETU VFXTH will try to connect to the Auto Configuration Server for TCP/TLS binding using HTTP or HTTPS. This timer specifies for how long SETU VFXTH should wait for successful TCP/TLS binding.
Page 238 If you are using Mozilla Firefox (version 3.5 recommended), before you save the configuration files, set the Downloads option of your browser as Always ask me where to save the files. • Save the file on the local disk. Matrix SETU VFXTH System Manual...
Page 239 Keep this folder as a backup. In case there is a problem with the system configuration files these backup files can be restored back in the system. Upgrading Configuration from a Personal Computer You can upgrade configuration of SETU VFXTH with the configuration files—.cfg format or xml format— stored on your computer. To do so, •...
Page 240 The path to the file will appear in the Configuration Upgrade From box. • Click the Upgrade button. At a time, you can upgrade configuration either manually or automatically from Auto Configuration Server or manually from a Personal Computer. Matrix SETU VFXTH System Manual...
Page 241: System Debug
Debugging has several benefits which include troubleshooting, security and system administration. SETU VFXTH supports Syslog Client for sending debug messages to the remote syslog server on the IP network. Debugging is a continuous process and you can view the Debug events on the screen. To do so, •...
Page 242 Webjeeves • SNMP Default: All debug levels, are enabled. To disable a debug level, clear the respective check box. • For SIP Port, select the desired debug level: • • SIP message • STUN/ NAT Matrix SETU VFXTH System Manual...
Page 243 Events will be displayed only if you enable Debug. • Click the Reload button, if you want the system to fetch an updated debug report, whenever required. • Click the Save Debug button, to save all the events. Matrix SETU VFXTH System Manual...
Page 244 Open the debug.zip file from the location you saved. The zip file contains the system debug file debug.txt. • Once you have enabled Debug and set the filters, you can view the debug event log at any time on the System Debug page. • You may log out of Jeeves. Matrix SETU VFXTH System Manual...
Page 245: Simple Network Management Protocol (Snmp)
Agents. The Agent listens on UDP port 161 for requests from Manager and the Manager listens on UDP port 162 for notification from Agent. To configure SNMP parameters, • Log into Jeeves. • Under Maintenance, click the SNMP link. Matrix SETU VFXTH System Manual...
Page 246 The System Contact can be of a maximum of 40 characters. Default: Blank. • Configure the System Location. This is the physical location of SETU VFXTH. This information is helpful to the administrator. The System Location may consist of a maximum of 40 characters. Default: Blank.
Page 247 Community Name identifies the SNMP community in which the sender and recipient of the message are located. It enables communication between SETU VFXTH and the Manager. The Community Name can be a maximum of 40 characters. Default: Blank. • If SNMP version is set as SNMPv3, the System’s Engine ID is displayed in this field. This is a unique identification of the system.
Page 248 Click Notification Settings to expand. If SNMP version is set as SNMPv1, configure the following parameters. • If you want SETU VFXTH to generate Trap message for an error, select the Enable Trap? check box. Default: Disabled. • You must configure the Notification Destination, if you have enabled Trap. SETU VFXTH will send the notification (error message) to the destination configured.
Page 249 You must upload MIB file in your SNMP Manager to get the status and notifications for SNMP. Contact Matrix Support team for the MIB file. The List of Events for which you will receive notification is presented in the following table.
Page 250 SIP Stack construction error DHCP Error OB Proxy VOPP Download failed PPPoE Error SIP Trunk gets active. SIP Trunk Registration failed STUN Error SIP Trunk disabled Error Warning Information FXO - Line Disconnected FXO - Line Connected Matrix SETU VFXTH System Manual...
Page 251: System Port Activity
System Port Activity You can view the state and activity on each Port of SETU VFXTH. • Log into Jeeves. • Click the Maintenance link. • Click the System Port Activity link. • The port states and activity on each Port appear on this page.
Page 252 Remote Held, when Hold message is received on SIP Trunk or the FXS Port has put the call on Hold. • Error, when the other party disconnects the call. As multiple calls are supported on SIP Trunks, the status and state of each call will appear. • You may log out of Jeeves. Matrix SETU VFXTH System Manual...
Page 253: Pcap Trace
A maximum of 2 MB of packets can be captured and stored in the system. SETU VFXTH also supports Filters and Promiscuous mode for capturing packets, which you can use to specify the types of data packets to be captured.
Page 254 When Promiscuous Mode is disabled, the system will capture only traffic that is directly related to it. Only traffic to, from or routed through the SETU VFXTH will be picked up by the PCAP Trace. 'Filter Settings' and 'Promiscuous Mode' (enabled) will not be cleared during power down.
Page 255: Manual Call Test
It can be of maximum 16 characters. Valid characters are 0-9, *, #, + and dot (.). • Click the Call button. SETU VFXTH will out dial the phone number you entered to make a test call between the Source Port and the Destination Port.
Page 256: Ac Impedance Test (Fxo)
Termination and CO Line Type— to correct the line impedance mismatch between the AC Termination Impedance presented by the FXO Port of SETU VFXTH to the line and the CO Termination Impedance presented by the Central Office to the line.
Page 257 If you wish to abort the test midway, you may click the Abort Test button. • On completion of the test, the system will automatically disconnect the call. The message ‘Test Status: Successfully completed’ appears on the screen. Matrix SETU VFXTH System Manual...
Page 258 In such a case, you must run the test for each CO Trunk connected to the FXO Port separately and configure the settings accordingly. • To generate the detailed test report, click the Generate Test Report button. Matrix SETU VFXTH System Manual...
Page 259 You may print the report by clicking the Print button in the test report window. • Select your Printer in the Printer options. • You can also save the report in PDF format by selecting the Adobe PDF in the Printer options. Matrix SETU VFXTH System Manual...
Page 260: Default System
FTP Server Port • Telnet Server Port • Firmware Parameters • Configuration Parameters • Login Password (Jeeves and Command) To restore the default settings using the Web Jeeves, • Log into Jeeves. • Click the Maintenance link. Matrix SETU VFXTH System Manual...
Page 261 • Real Time Clock • Call Detail Records • Region • Language • Network • Connection Type • DNS Settings • DYN DNS • System Parameters - NAT • Route Public IP Address Matrix SETU VFXTH System Manual...
Page 262 To restore the default settings using the Reset button, • Press the Reset button for more than four seconds. • Release the Reset button. If you press the Reset button for less than four seconds, SETU VFXTH will restart. Matrix SETU VFXTH System Manual...
Page 263: Soft Restart
Soft Restart If you need to restart SETU VFXTH, you may do it by • pressing the Reset button. • use Soft Restart from Jeeves. When you restart the system, all active calls will be disconnected and the ports in use will be released. The system configuration however, will not be affected.
Page 264 • Select the TR-069 Enable check box to use TR-069. Default: Disabled. • In the ACS URL field, enter the URL of the ACS. SETU VFXTH will connect and send message to this server address. Default: Blank. • In the ACS Username field, enter the username used by SETU VFXTH for HTTP authentication.
Page 265 ACS to check for updates. Default: 1800. • Select the STUN Enable check box, if your SETU VFXTH is located behind the NAT Router and SIP messages need to be forwarded to the public network. Default: Disabled.
Page 266: Status
• Click the System Detail link. The following System Details will be displayed on this page. 13. The screen is placed with reference to the model SETU VFXTH0032. The screens vary as per the model. Matrix SETU VFXTH System Manual...
Page 267: Firmware
VoIP DSP Module (AudioCodes AC49008 - 8 Channel): This field displays the VoIP DSP Module present in the system. Firmware • Click the Firmware link. The following information related to Auto-Firmware upgrade will appear on your screen. Matrix SETU VFXTH System Manual...
Page 268 • Last Upgraded On: This field displays the firmware with which SETU VFXTH last upgraded itself through the provisioning server, along with the date (DD:MM:YYYY) and time (HH:MM) of the upgradation. • Next Upgrade On: This field displays the date (DD:MM:YYYY) and time (HH:MM), when SETU VFXTH will again check for new firmware updates on the server.
Page 269: Configuration
Auto Upgrade Stop on User request When Firmware upgrade process is started manually but user clicks Cancel button after display of list of firmware files. Successfully Updated When firmware is updated successfully. Configuration • Click the Configuration link. Matrix SETU VFXTH System Manual...
Page 270 • Last time when Synchronized with Server: This field displays the date (DD:MM:YYYY) and time (HH:MM), when SETU VFXTH last resynchronized with the server for new configuration. • Status of Last Synchronization: This field displays the status of last synchronization. The possible status messages that may appear are listed in the table below.
Page 271: Network
The current values of the following parameters will appear on your screen. Ethernet Port • IP Address: This field displays the IP address assigned to the Ethernet Port of SETU VFXTH. • Subnet Mask: This field displays the Subnet Mask assigned to the Ethernet Port of SETU VFXTH.
Page 272 In all remaining cases, the default messages supported by DDNS client will appear in this field. • Stack Status: This field displays the SIP Stack Status. • NAT Type: This field displays the NAT Type, if STUN is enabled in SETU VFXTH. The commonly used NAT types are: • Unknown •...
Page 273: Fxo Port
FXO Port • Click the FXO Port link. • The status of the FXO Ports appear on this page, as FXO Port ‘Line not Connected’ or ‘Line Connected’. Matrix SETU VFXTH System Manual...
Page 274: Sip Trunk
Registration Time: The SIP Trunk is registered with the Registrar Server for a particular time period, after which it has to be re-registered. The registrar server indicates the time remaining for re- registration of the SIP Trunk. The same is displayed in this field as Registration Time. Matrix SETU VFXTH System Manual...
Page 275 If for a SIP Trunk, you have enabled Fallback Server and Registration Behavior is set to Register with all Servers, the SIP Trunk Status page will display status of all the servers for that SIP Trunk as shown below. Matrix SETU VFXTH System Manual...
Page 276 Corresponding 4xx/ When any 4xx/5xx/6xx response is received against the SUBSCRIBE for MWI 5xx/6xx response sent from SIP Trunk. along with the text of the error message as it is received with 4xx/ 5xx/6xx response. Matrix SETU VFXTH System Manual...
Page 277 Urgent Old Messages: It displays the urgent old messages for the SIP Trunk. • Message Notification on: It displays the FXS Port number on which the Message Wait Indication Notification is to be sent for the new messages received on the SIP Trunk. Matrix SETU VFXTH System Manual...
Page 278: Appendix
Dual Tone Multi-Frequency FDWT First Digit Wait Timer FoIP Fax over IP Frequency Shift Keying File Transfer Protocol Foreign Exchange Office Foreign Exchange Subscriber Greenwich Mean Time HTTP Hypertext Transfer Protocol ICMP Internet Control Message Protocol Matrix SETU VFXTH System Manual...
Page 279 Simple Network Management Protocol SNTP Simple Network Time Protocol SOHO Small Office Home Office STUN Simple Traversal of UDP over NAT Transport Layer Security User Datagram Protocol Uniform Resource Identifier Universal Reference/Resource Locator VoIP Voice over IP Matrix SETU VFXTH System Manual...
Page 280: Default Region Table
Spanish GMT-05:00 Costa Rica Spanish GMT-06:00 Croatia English GMT+01:00 Cuba Spanish GMT-05:00 A-law Cyprus English GMT+02:00 Czech Republic English GMT+01:00 Denmark English GMT+01:00 A-law Egypt English GMT+02:00 A-law Fiji English GMT+12:00 Finland English GMT+02:00 A-law Matrix SETU VFXTH System Manual...
Page 281 Paraguay Spanish GMT-04:00 Peru Spanish GMT-05:00 Philippines English GMT+08:00 A-law Poland English GMT+01:00 Portugal Portuguese Qatar English GMT+03:00 Romania English GMT+02:00 Russia (Moscow, St. Petersburg) English GMT+03:00 Russia (Novosibirsk) English GMT+06:00 Russia (Vladivostok) English GMT+10:00 Matrix SETU VFXTH System Manual...
Page 282 FSK Bellcore FSK Bellcore United States (Hawaii) English GMT-10:00 U-law FSK Bellcore FSK Bellcore Uzbekistan English GMT+05:00 Venezuela Spanish GMT-04:30 Vietnam English GMT+07:00 Yemen English GMT+03:00 Yugoslavia English GMT+02:00 Zambia English GMT+02:00 Zimbabwe English GMT+02:00 Matrix SETU VFXTH System Manual...
Page 283: Call Progress Tones
SETU VFXTH to that of the country standard where it is installed. See the table for the CPTG Type (frequency and cadence of the different tones) supported by SETU VFXTH. The table shows the CPTG Types supported for different countries.
Page 284 0.4on 0.4off Saudi Continuous 1.2on 4.6off 0.5on 0.5off Arabia Singapore Continuous 425*24 0.4on 0.2off .75on .75off 0.4on 2.0off South Africa 400*33 Continuous 400*33 0.4on 0.2off .5on .5off 0.4on 2.0off Spain Continuous 1.5on 3.0off 0.2on 0.2off Matrix SETU VFXTH System Manual...
Page 285 0.5on 0.5off 1on 1off 425*50 0.1on 0.1off France 0.25on 1on 1off 0.1on 0.1off 0.25off Germany 0.20on 1on 1off 0.1on 0.1off 0.48off Greece 0.15on 1on 1off 0.1on 0.1off 0.15off India 0.25on 1on 1off 0.1on 0.1off 0.25off Matrix SETU VFXTH System Manual...
Page 286 0.1on 0.1off 0.25off Spain 0.25on 1on 1off 0.1on 0.1off 0.25off Thailand 0.3on 0.3off 1on 1off 400*50 0.1on 0.1off Turkey 0.2on 0.2off 1on 1off 0.1on 0.1off .6on .2off 0.4on 1on 1off 350+440 0.1on 0.1off 0.35off 0.225on 0.525off Matrix SETU VFXTH System Manual...
Page 287 0.1on 0.9off 400*25 0.1on 1.9off 0.15on 4.85off Indonesia 0.1on 0.9off 0.1on 1.9off 0.1on 2.9off Iran 0.1on 0.9off 0.1on 1.9off 0.1on 2.9off Iraq 0.1on 0.9off 0.1on 1.9off 0.1on 2.9off Israel 0.1on 0.9off 0.1on 1.9off 0.1on 2.9off Matrix SETU VFXTH System Manual...
Page 288 0.1on 1.9off 0.1on 2.9off Type5 350+440 0.1on 0.9off 350+440 0.1on 1.9off 350+440 0.5on 0.5off 1.0on 5.0off Stuttered Dial Tone • Frequency: 425 Hz (applicable for all Regions) • Cadence (msec): 100-100-100-100-1000-1000 (applicable for all Regions) Matrix SETU VFXTH System Manual...
Page 289: Ring Type
Default values for all ring types for all the countries as per ETSI standard is programmed in the system. Ring Type table is shown below: The Ring Type is not set to default, if the system is set to default. Matrix SETU VFXTH System Manual...
Page 290: Features At Glance
To Accept the Waiting Call and Hold Current Call To Accept the Waiting Call and Release Current Call For Blind Transfer For Conference For Using Supplementary Services of Service Provider For Using Voice Mail of the Service Provider Matrix SETU VFXTH System Manual...
Page 291 For Making a New Call To Disconnect Call a. Dial # as end of dialing, if it has been configured by you or the system will wait till the expiry of the inter digit wait timer. Matrix SETU VFXTH System Manual...
Page 292: System Commands
System Commands Certain parameters of SETU VFXTH can be configured by dialing System Commands from a telephone connected to the FXS Port. You can configure certain Network Parameters, like IP Address, Subnet Mask, Connection Type, set the system to default and also view current IP Address, Subnet Mask, Connection Type, DNS and Gateway Address by dialing System Commands.
Page 293 To view the Status of SIP Trunks, dial 27-SIP Trunk number-#* and go On-hook. SIP Trunk Number is from 1 to 9. The value of the parameter will be displayed on the LCD of the telephone instrument. • To Exit programming mode, dial 00-#* Matrix SETU VFXTH System Manual...
Page 294: Product Specifications
FXO Port To connect with PSTN or to FXS Ports of PBX RJ11 SIP Trunks To connect to Internet Network for VoIP RJ45 (Ethernet) Different Configurations supported in the SETU VFXTH Sr. No. Configuration VoIP Channels FXO Ports FXS Ports...
Page 295 Dynamic Jitter Buffer (Adaptive), Comfort Noise Generation and Voice Activity Detection T.38(UDPTL), T.38(RTP) and Pass Through Quality of Service Layer 3 Diffserv and TOS Data Network WAN Port RJ45 Auto MDIX 10/100 Base T Security Password Protected Administration Matrix SETU VFXTH System Manual...
Page 296 Telephony features: • Voice Calls using SIP proxy and Voice calls without using SIP proxy (Peer-to-Peer Calling) • Battery Reversal- Useful when some billing machine is connected to SETU VFXTH • Black Listed Callers • Call Disconnect Tone • Call Forwarding •...
Page 297: Warranty Statement
Matrix has been advised of the possibility of such damages or losses or for any claim by any other party.
Page 298: Disposal Of Products/Components After End-Of-Life
If there is any legal obligation for disposal, you may check with local authorities to locate approved plastic recyclers in your area. After end-of-life of the Matrix products, if you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department.
Page 299: E-Waste Management And Handling Rules
Considering the benefits of electronics recycling, it is very important that people in various parts around the world embrace this concept. Creates Jobs E-waste recycling creates new jobs for professional recyclers and creates a second market for the recycled materials. Matrix SETU VFXTH System Manual...
Page 300 Do not dispose your product in garbage bins along with municipal waste that ultimately reaches landfills. E-Waste Management Plan M/s. MATRIX COMSEC PVT LTD has partnered with E-Waste Recyclers India (EWRI) to comply with the new India E-Waste management and handling rules in providing drop-of centers and environmentally sound management of end of life electronics.
Page 301 Shop No.8, New Gajuwaka, Opp. High Andhra Professional Vishakapatnam School Road, Vishakapatnam, Andhra 1800-102-5679 Pradesh Logistics Pradesh - 530026 Shop no:-19, Pharbhat Road, Opp:- Professional Chandigarh Pharbhat Road Tennis Academy, Zirakpur, Chandigarh, 1800-102-5679 Logistics Punjab Matrix SETU VFXTH System Manual...
Page 302 Dunlop, Kolkata -700108 Professional Acharya Vihar - jaydev Vihar Rd, Odisha Bhubaneswar 1800-102-5679 Logistics Bhubaneswar, Odisha Shop No-4 Asansol Station Bus Stand Professional West Bengal Asansol Road, Munshi Bazar, Asansol, West 1800-102-5679 Logistics Bengal - 713301 Matrix SETU VFXTH System Manual...
Page 303: Regulatory Information
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Matrix SETU VFXTH System Manual...
Page 304 CE and ROHS Certificate Matrix SETU VFXTH System Manual...
Page 305: Open Source Licensing Terms And Condition
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the Matrix SETU VFXTH System Manual...
Page 306 Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. Matrix SETU VFXTH System Manual...
Page 307 Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three Matrix SETU VFXTH System Manual...
Page 308 Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. Matrix SETU VFXTH System Manual...
Page 309 Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. Matrix SETU VFXTH System Manual...
Page 310 Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of Matrix SETU VFXTH System Manual...
Page 311 ---- Part 1: CMU/UCD copyright notice: (BSD like) ----- Copyright 1989, 1991, 1992 by Carnegie Mellon University Derivative Work - 1996, 1998-2000 Copyright 1996, 1998-2000 The Regents of the University of California All Rights Reserved Matrix SETU VFXTH System Manual...
Page 312 OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 3: Cambridge Broadband Ltd. copyright notice (BSD) ----- Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd. Matrix SETU VFXTH System Manual...
Page 313 Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written Matrix SETU VFXTH System Manual...
Page 314 Copyright (c) 2004, Cisco, Inc and Information Network Center of Beijing University of Posts and Telecommunications. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Matrix SETU VFXTH System Manual...
Page 315 LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, Matrix SETU VFXTH System Manual...
Page 316 Neither the name of ScienceLogic, LLC nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. Matrix SETU VFXTH System Manual...
Page 317 ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Matrix SETU VFXTH System Manual...
Page 318: Index
Call Release Timer 129 82, 88 Call Toggle 202 Answer Supervision 56 Call Transfer - Attended 203 Application of SETU VFXTH Call Waiting 212 Analog Extension of PBX over IP 7 Called Party Number Based 98 Behind the PBX 7...
Page 319 Dynamic DNS 32 Connect Source Port when number is outdialed Emergency Number Dialing 177 Connecting a Computer 15 End of Dialing Digit 50 Connecting SETU VFXTH Enrolling the Certificate Signing Request with CO Network 12 CA 192 VoIP Network 11...
Page 320 Local Certificate for Firmware Upgrade 137 Prioritization of traffic 33 Local Certificate for TLS 137 Product Specifications 289 Local Certificate for TR069 137 Protecting SETU VFXTH 9 Local Certificate for WebServer 137 Proxy SIP Trunk 81 Login Password 121 Login Password for System Commands 121...
Page 321 Routing Group Busy Wait Timer 130 STUN 117, 131 Routing Tone 129 Subscriber Type RTP Listening Port 133 Gateway 51 RTP QoS 33 Network 51 Supplementary Services 220 Secure RTP 117 Switch Registration to Alternate Server on Fall- Selective Configuration 22 back 85 Self-Signed Certificate 183 Symmetric RTP 117...
Page 322 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. Ph: (+91)1800-258-7747 E-mail: Customer.Care@MatrixComSec.com www.MatrixTeleSol.com...

Matrix SETU VFXTH System Manual

Introduction

Know Your SETU VFXTH

Installing SETU VFXTH

Basic Settings

Advanced Settings

Features

Maintenance

Status

Appendix

Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix SETU VFXTH

Summary of Contents for Matrix SETU VFXTH

Table of Contents
