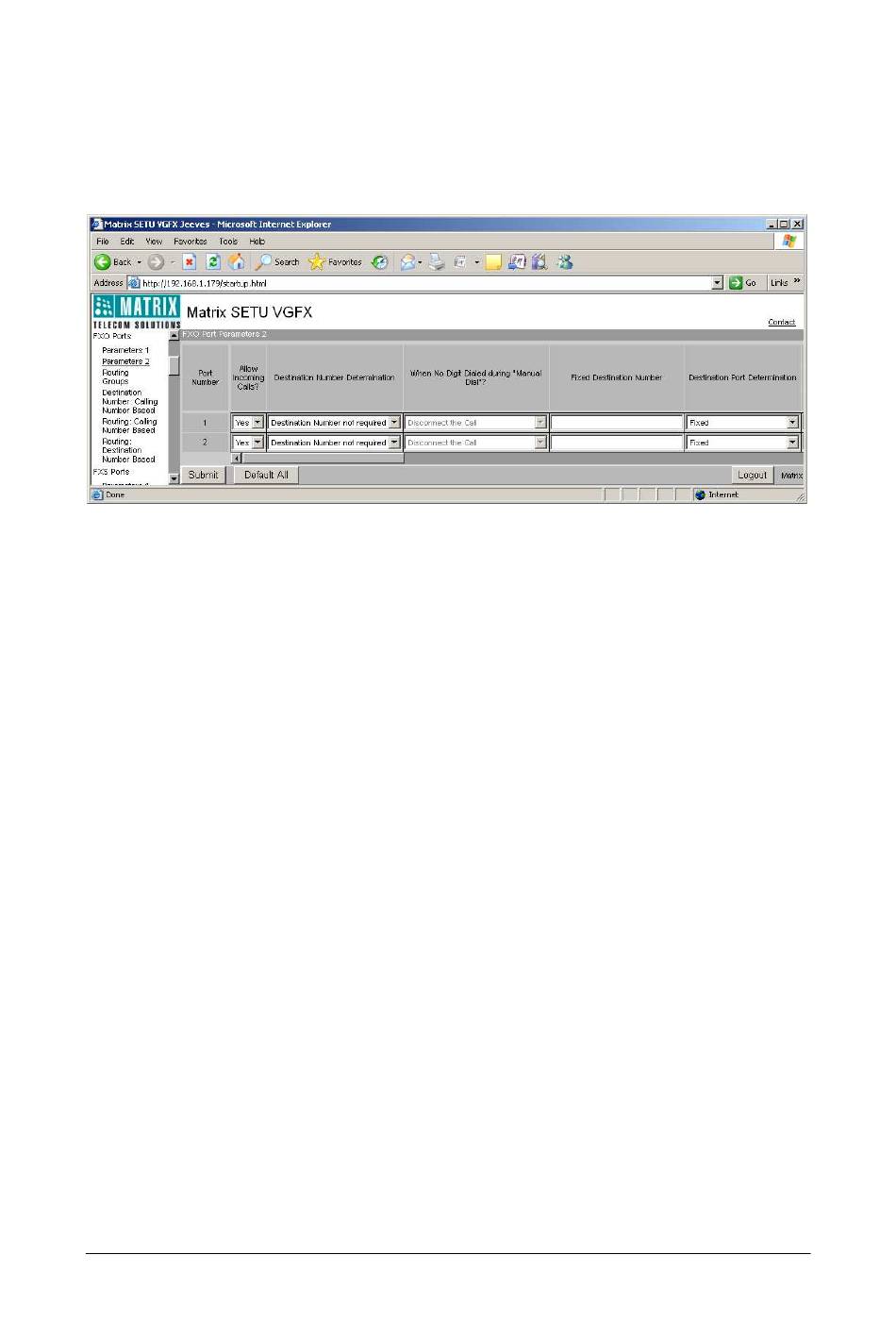

When Destination Port Determination Method selected for FXO Port is 'Fixed', program
following parameters on the FXO Port parameter page.
Click on 'FXO Port Parameters-2'. In 'Routing Groups' table, program the following
parameters.
For Group 1:
• Port/Group Type: Select desired port or group for routing the call originated on
FXO Port. You can choose one of the following options:
• None
• FXS Port
• SIP Trunk
• FXO Port
• Mobile Port
• FXS Group
• FXO Group
• SIP Group
• Mobile Group
By default, 'FXS Port' is selected in Group 1 for all FXO Ports.
• Port/Group Number: Program Port Number here, if Port is selected in Port/
Group Type field. Program Group Number, if Group is selected in Port/Group
Type field. You may select from the following options:
• 1-2 for FXS Port
• 1-9 for SIP Trunk
• 1-2 for FXO Port
• 1-4 for Mobile Port
• 1-8 for FXS Group
• 1-8 for FXO Group
• 1-9 for SIP Group
• 1-8 for Mobile Group
