Matrix SETU VFX Quick Start Manual

Low-density multi-port voip-fxo-fxs gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

SETU VFX
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SETU VFX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix SETU VFX

Summary of Contents for Matrix SETU VFX

  • Page 1 SETU VFX Quick Start...
  • Page 2 SETU VFX Low-Density Multi-Port VoIP-FXO-FXS Gateway Quick Start...
  • Page 3 Documentation Disclaimer Matrix Comsec reserves the right to change, at any time, without prior notice, the product design, specifications, components, as engineering and manufacturing may warrant. This is a general documentation for all models/configurations of the product. The product may not support some of the features/facilities described in this document.

  • Page 4: Table Of Contents

    Contents Know Your SETU VFX ..................1 Overview ......................1 Ports and Connectors ..................3 Installing SETU VFX ..................4 Before You Start ....................4 Getting Started ....................4 Connecting SETU VFX ..................5 Power ON SETU VFX ..................7 Accessing Jeeves (GUI) ................

  • Page 5: Know Your Setu Vfx

    Know Your SETU VFX Thank you for choosing the Matrix SETU VFX. Please read the instructions in this Quick Start to install and operate your SETU VFX properly. This Quick Start is meant to help you install and configure the basic parameters of the system. For advanced configuration and feature description, please refer the System Manual.

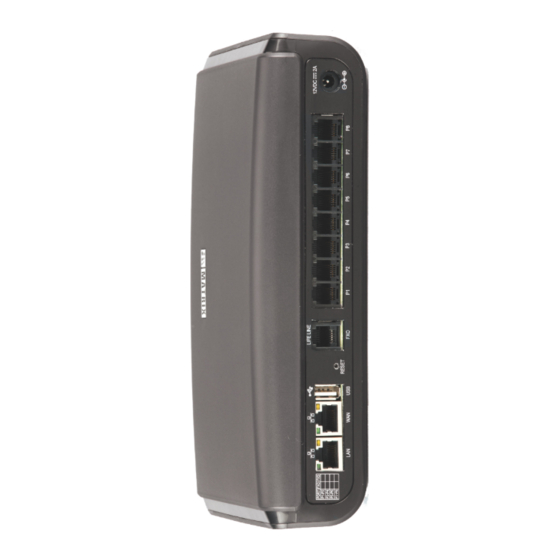

  • Page 6 SETU VFX808 has a WAN Port, a LAN Port, a USB Port, a Reset button, a Lifeline Port, 8 FXS Ports, 9 SIP Trunks, a Power Socket. USB Port Reset LifeLine Power (Unused) Button Port Ports Adapter Matrix SETU VFX Quick Start...

  • Page 7: Ports And Connectors

    Life Line Port is available only in VoIP-FXS Gateway. LEDs SETU VFX has total 10 LEDs. One for Power (PWR), one for Status (STS) and eight Port LEDs (P1 to P8). The LEDs indicate the status of the ports and various events occurring on the ports, including errors.

  • Page 8: Installing Setu Vfx

    • A standalone computer or a computer connected in a LAN to access Jeeves, the web- based configuration tool of SETU VFX. • Appropriate cables and connectors to set up and test the WAN interface of SETU VFX and the LAN connection.

  • Page 9: Connecting Setu Vfx

    If you are mounting the system on a wall, refer to the mechanical dimensions of the product and use the mounting template for drilling holes on the wall. Connecting SETU VFX SETU VFX880 (VoIP-FXO Gateway) Power Adapter PSTN DSL Modem/ Router Network LAN Switch/ Hub Computers Applicable only for VoIP-FXS Gateway. Matrix SETU VFX Quick Start...
  • Page 10 Switch—using the Ethernet cable supplied for the port. If connecting to the Public IP Network, • Plug one end of the Ethernet cable into the WAN Port of SETU VFX and the other end into the DSL modem/ Router. Matrix SETU VFX Quick Start...

  • Page 11: Power On Setu Vfx

    If connecting to a Private Network (Behind a NAT Router), • Plug one end of the Ethernet cable into the WAN Port of SETU VFX and the other end into the LAN Switch/Hub. The default IP Address of the WAN Port is: 192.168.1.100 The default Subnet Mask of the WAN Port is: 255.255.255.0...
  • Page 12 Few Initialisation (i.e WebJvs, Green CallManager, PortCnfg etc.) VOPP Program Download Green Success All Init Done, 1000 System goes Green Live 1000 1000 1000 Green 1000 (Continuous Green blinking as given in last 2 steps) Matrix SETU VFX Quick Start...
  • Page 13 During Off-hook state, FXS Port LED glows continuous Red. However, if the system is in programming mode, the LED of the port from which you entered the programming mode will glow continuously Green. After exiting the programming mode, the LED will turn Red again (displaying Off- hook event). Matrix SETU VFX Quick Start...
  • Page 14 SIP Registration Failed 200ms On - 200ms Off - 200ms On - 3400 Off SIP Authentication Failed (2 Blinks) When the Reset Cycle is completed, you may configure the system using the embedded web server, Jeeves. Matrix SETU VFX Quick Start...

  • Page 15: Accessing Jeeves (Gui)

    • Plug one end of the Ethernet cable supplied with the system into the LAN Port of SETU VFX. Plug the other end into the LAN Port of the computer. • Make sure the IP Address of the computer and the LAN Port of SETU VFX do not conflict, and that both are in the same Subnet.
  • Page 16 • You will be redirected to the HTTPS protocol for security reasons. • Click the https://192.168.2.100 link. • The Login page will open. • In Login Password, enter 1234, the default SE Password. • Click the Login button. Matrix SETU VFX Quick Start...
  • Page 17 Before you start configuring the system, if you wish to view or download the SETU VFX System Manual/User Card, you can scan the QR Code present on the login page of Jeeves. • You will be prompted to change the default SE Password.
  • Page 18 Basic Settings break down the complexities of configuration and are sufficient to get your system into operation. Advanced Settings enable you to configure the advanced features and facilities of SETU VFX. Maintenance allows you to carry out system maintenance and monitoring activities like uploading/upgrading firmware and configuration, system debug, system restart.
  • Page 19 Status allows you to view the system details and status of the ports - FXO Ports (if applicable), Network and SIP Trunks. You may now configure the Basic Settings of SETU VFX. Matrix SETU VFX Quick Start...

  • Page 20: Configuring Setu Vfx

    • The Collapse button , collapses a link, hides all the parameters under a link on the page. • The Settings icon , enables you to configure / edit the settings of a parameter further. Matrix SETU VFX Quick Start...

  • Page 21: Using Selective Configuration

    Expand: expands a link to display all parameters under the link. Collapse: collapses a link; hides all parameters under the link. Settings: enables you to configure / edit the settings of a parameter further. Logout: enables you to exit Jeeves. Matrix SETU VFX Quick Start...
  • Page 22 • Set the parameters on the page to the desired values and click the Submit button to save. You may use the Wizard or selectively configure the Basic Settings pages, whichever works best for you. Read the SETU VFX System Manual for detailed instructions. Matrix SETU VFX Quick Start...
  • Page 23 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. Ph: (+91)1800-258-7747 E-mail: Customer.Care@MatrixComSec.com www.MatrixTeleSol.com...
