Connecting SETU VGFX

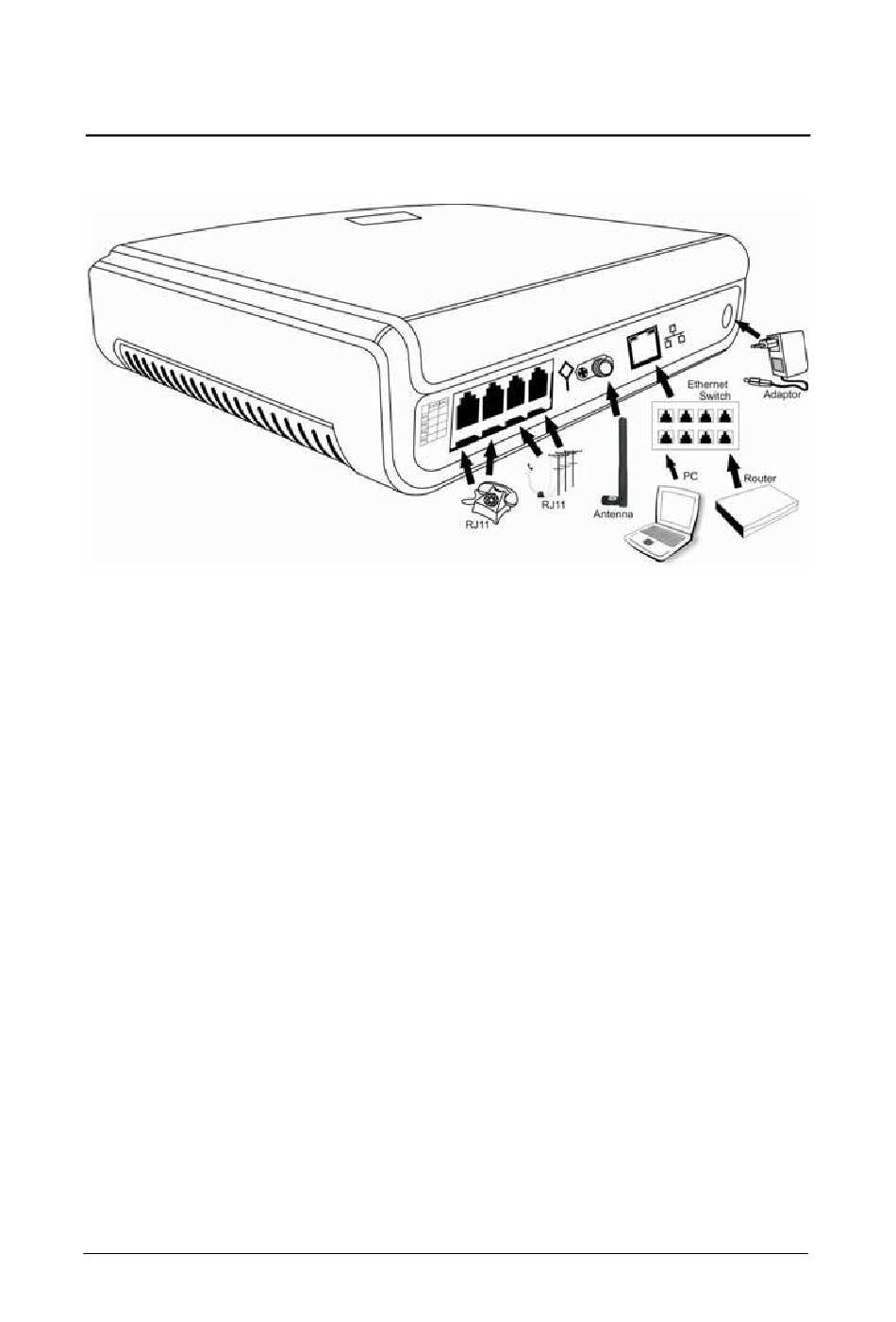

Connect SETU VGFX as shown below:
• Place SETU VGFX at a suitable place where it can be provided with proper
power supply.
• Connect Ethernet (WAN) Port of SETU VGFX to the LAN Switch/Network of the
Enterprise.
• Connect PSTN line to the FXO Port of SETU VGFX or connect FXO Ports of
SETU VGFX to the FXS Ports of the PBX.
• Connect telephone instruments to the FXS Ports of SETU VGFX or connect
FXS Ports of SETU VGFX to the FXO Ports of the PBX.
• Connect Antenna to SETU VGFX.
• Insert SIM Card into the Mobile Port of SETU VGFX to register with GSM
network.
• Connect Power Socket of SETU VGFX to the power supply using 12V DC, 2A
power adaptor.
