Matrix SETU VGFX Quick Start Manual

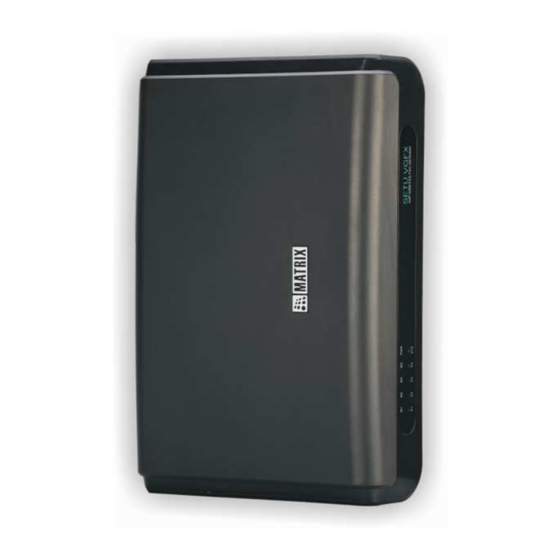

Voip-gsm-fxo-fxs gateway
Hide thumbs Also See for SETU VGFX:
Table of Contents

Advertisement

Quick Links

Download this manual
http://arttel.ru
SETU VGFX
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SETU VGFX and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix SETU VGFX

Summary of Contents for Matrix SETU VGFX

  • Page 1 SETU VGFX Quick Start...
  • Page 2 http://arttel.ru...
  • Page 3 SETU VGFX VoIP-GSM-FXO-FXS Gateway Quick Start...
  • Page 4 Documentation Disclaimer Matrix Comsec reserves the right to make changes in the design or components of the product as engineering and manufacturing may warrant. Specifications are subject to change without notice. Copyright All rights reserved. No part of this manual may be copied or reproduced in any form or by any means without the prior written consent of Matrix Comsec.

  • Page 5: Table Of Contents

    Introduction ....................1 Know Your SETU VGFX ................... 2 Before You Start ....................4 Installing SETU VGFX ..................7 Mounting SETU VGFX on Wall ................. 7 Connecting SETU VGFX ................... 8 Switching ON SETU VGFX ................9 Accessing Web JEEVES ................11 Configuring SETU VGFX ................
  • Page 6 http://arttel.ru Table of Contents...

  • Page 7: Introduction

    Introduction Thank you for choosing Matrix SETU VGFX! Please read the instruction in this quick start to install this feature reached system. This Quick Start is meant to help you to install the basic features and parameters of SETU VGFX. For detailed information on installing and programming, please refer 'SETU VGFX V1 System Manual' provided to you on the CD-ROM.

  • Page 8: Know Your Setu Vgfx

    Know Your SETU VGFX SETU VGFX has 1 WAN Port, 2 FXO Ports, 2 FXS Ports, 4 Mobile Ports, 9 SIP Trunks, Antenna Connecter, a Power Socket and 10 LEDs. SETU VGFX also supports 3G module for voice. When 3G module is installed in the system: RCOC- When Busy will not work.
  • Page 9 SETU VGFX refers to SETU VGFX8422, unless otherwise specified. LEDs: There are total 10 LEDs in SETU VGFX. These LEDs are labeled as M1, M2, M3, M4, P1, P2, P3, P4, STS and PWR as shown in the figure below. These LEDs indicate the status of ports, various events occurring on the ports and also the error conditions.

  • Page 10: Before You Start

    Make sure that all the above mentioned components are present when you open the Sales Kit of SETU VGFX. In case any of the part is missing or damaged, contact the source from where you have purchased your SETU VGFX.
  • Page 11 Registrar Server Port Outbound Proxy Server Address Outbound Proxy Server Port To install SETU VGFX, you should also have: An active SIM card/s from GSM service provider. Analog trunk line from Public Switched Telephone Network (PSTN). Matrix SETU VGFX Quick Start...
  • Page 12 Matrix SETU VGFX Quick Start...

  • Page 13: Installing Setu Vgfx

    ‘B1’ on the left hand-side of J5 jumper on the Board. Battery should be replaced only by authorized dealers of Matrix. Mounting SETU VGFX on Wall SETU VGFX should be installed at the airy, dust free and moisture free place. • Select a suitable place on the wall for mounting SETU VGFX.

  • Page 14: Connecting Setu Vgfx

    Connect Ethernet (WAN) Port of SETU VGFX to the LAN Switch/Network of the Enterprise. • Connect PSTN line to the FXO Port of SETU VGFX or connect FXO Ports of SETU VGFX to the FXS Ports of the PBX. •...

  • Page 15: Switching On Setu Vgfx

    Switching ON SETU VGFX After connecting SETU VGFX as shown above, switch ON the power supply. At Power ON, Power LED will turn ON (Continuous Red). Initialization process will start and LED sequence of all other LEDs during initialization process is shown in...
  • Page 16 You can program Port LEDs for showing the status of SIP Trunks. For example, if you are using only two Mobile Ports then you can program the other two Mobile Port LEDs for showing the status of SIP Trunks. (Refer “Checking the Status” for more details) Matrix SETU VGFX Quick Start...

  • Page 17: Accessing Web Jeeves

    Change the IP Address of SETU VGFX, if it is conflicting with the IP Address of the PC to which it is connected or with any device on the LAN. Similarly, assign the Subnet of the PC to SETU VGFX, if it is not the same. To do this: •...
  • Page 18 Exit programming mode by issuing command: 00#* Open web browser of the computer connected to SETU VGFX. Enter IP Address of SETU VGFX in the address bar of the web browser. The Login Page will open. Matrix SETU VGFX Quick Start...
  • Page 19 Now you can program all the parameters of SETU VGFX by clicking on the appropriate feature links. After Switching ON the SETU VGFX, the SE is advised to program it in the following sequence: Region Selection (Region/Country Code) Date and Time Settings...
  • Page 20 After programming SETU VGFX in above mentioned sequence, you will be able to make and receive calls. Matrix SETU VGFX Quick Start...

  • Page 21: Configuring Setu Vgfx

    Region Selection Click on 'System Parameters' link. • Select 'Region/Country' in which SETU VGFX is installed from the list. • After selecting Region/Country when SE submits the page, an alert message "Changing Region shall assign default values to all parameters of System. Do you want to continue?"...
  • Page 22 • Language • Time Zone • Schedule DST • CPTG • Ring Type 'Region/ Country' does not default when the system is defaulted. (Refer 'Region Selection' in System Manual for more details) Matrix SETU VGFX Quick Start...

  • Page 23: Date And Time Settings

    Current Time: Enter current Time in HH-MM-SS format. Valid range for Hour is 00 to 23, Minutes is 00 to 59 and Seconds is 00 to 59. • Current Day: Depending on the current Date entered by SE, SETU VGFX automatically sets current Day in this field. •...
  • Page 24 SNTP Server Address: Program SNTP server address in this field, if you have selected to sync date and time with SNTP server automatically at power on. SETU VGFX will sync its date and time with the server whose address is programmed in this field. SNTP Server address can be of maximum 40 characters.

  • Page 25: Daylight Saving Time (Dst) Mode

    Click on 'Date and Time Settings (DST)' link and program the following parameters. • By default, Disable DST is selected. If SETU VGFX is installed in the country in which DST is observed then enable DST by selecting either Manual DST or Scheduled DST option.
  • Page 26 24 hours format and valid range for hours is 00 to 23 and for minutes is 00 to 59. By default, Forward time adjustments type is 'None'. None is selected when SETU VGFX is installed in the country where DST is not observed. • Backward Time Adjustments: Go to 'Backward Time Adjustments' and program its parameters in the same manner as mentioned above for Forward Time Adjustments.

  • Page 27: Port Parameters-Sip

    ITSP in this field. It can be an IP address or domain. Maximum Length = 40 characters All ASCII characters allowed Default = Blank • Registrar Servers' Port: Enter registrar server listening port provided by ITSP in this field. Valid range = 1025 to 65535 Matrix SETU VGFX Quick Start...
  • Page 28 The registrar server deletes an entry of its client from its database on expiry of a fixed timer which is set by the registrar server. SETU VGFX shall send a registration request before this timer expires to remain registered on the server.
  • Page 29 • Use Symmetric RTP?: This parameter is applicable only for peer to peer calls. Select 'Yes' if SETU VGFX is located on public IP and calls are made and received from the SIP client located behind the NAT router. Valid options: Yes/No...
  • Page 30 SIP Trunk in the CLI of outgoing calls when this parameter is set to 'Yes'. Valid options: Yes/No Default = Yes SETU VGFX will send Anonymous in the 'From' field if 'Send Caller ID?' option is set to 'No'. • Send Caller-ID received on Source Port?: If this parameter is set to 'Yes',...

  • Page 31: Port Parameters-Fxo

    Valid options: Yes/No Default = Yes • Calling Line Identification (CLI) Type: Select CLI type supported by your telephone exchange in this field. SETU VGFX is capable of detecting following type of signaling on its FXO Port: • None •...
  • Page 32 • Flash Timer (ms): SETU VGFX uses flash timer to generate Flash on FXO Port for using various supplementary features viz. Call Hold, Call Transfer etc. Select Flash Timer as per you requirement in this field. Valid options are: •...
  • Page 33 Default = 8 msec. • Current Limiting: Current Limiting mode is used to limit the loop current. Enable current limiting mode to limit the loop current in SETU VGFX. It will limit the loop current to maximum 60mA. Valid options: Yes/No Default = No •...
  • Page 34 Incoming Calls Allowed? Enable this option to receive incoming calls on the FXO Port. Incoming calls will be prohibited on the FXO Port, if this parameter is set to 'No'. Valid options: Yes/No Default = Yes (Refer 'Port Parameters-FXO' feature in System Manual for details) Matrix SETU VGFX Quick Start...

  • Page 35: Port Parameters-Fxs

    LCD to display the number or user does not want to display the CLIP. • Flash Timer (ms): SETU VGFX uses flash timer to detect Flash on FXS Port for using various supplementary features viz. Call Hold, Call Transfer etc. Flash Timer signifies the time period for which the loop current breaks.
  • Page 36 Sinusoidal • Trapezoidal Default = Trapezoidal • Loop Current: SETU VGFX supports configurable loop current as per the loop length programmed for the FXS Port. You can select the appropriate loop current from the following options: • 25 mA •...
  • Page 37 • In Gateway Type, the FXS Port user can use features of SETU VGFX like call hold; call transfer etc. along with the Supplementary Services of Service Provider. • In Network Type, the FXS Port user can use all the remote end features i.e.

  • Page 38: Port Parameters-Mobile

    SIM PIN value you assigned to this Mobile Port. Valid range: 4 to 8 digits. Default = Blank If SETU VGFX is set to default or the software version revision is changed, the SIM PIN value does not change. Matrix SETU VGFX Quick Start...
  • Page 39 Mobile Port. Select 'No' in this field to prohibit incoming calls on Mobile Port. Valid options: Yes/No Default = Yes (Refer 'Port Parameters-Mobile' feature in System Manual for details) Click on 'System Parameters' link and program following parameters on the page as shown below: Matrix SETU VGFX Quick Start...
  • Page 40 '+'. SETU VGFX provides flexibility to remove '+' and replace it with appropriate number string as required. Thus, if '+' is received in CLI number, SETU VGFX will check 'Replace + from incoming CLI number' parameter.

  • Page 41: Mobile Network Selection

    In Manual mode for network selection, SIM Card will be registered only with the network that is supported by the network operator of the SIM Card used in the system. (Refer 'Mobile Network Selection' feature in System Manual for details) Matrix SETU VGFX Quick Start...

  • Page 42: Routing Groups

    • Member (1 to 4): Select desired FXO Port in each member field. When a call lands on FXO Port, SETU VGFX will route the call on any of these members as per member selection method programmed. You can program maximum 8 FXO Groups and each group can have maximum 4 members.
  • Page 43 • 1-9 for SIP Trunk • 1-2 for FXO Port • 1-4 for Mobile Port • 1-8 for FXS Group • 1-8 for FXO Group • 1-9 for SIP Group • 1-8 for Mobile Group Matrix SETU VGFX Quick Start...
  • Page 44 By default, it is set to 2 for all FXO Ports. • Port Selection Method: Select the Port Selection method for routing the call to the destination port. SETU VGFX supports following port selection methods: Ascending and Descending. By default, it is 'Ascending' for all FXO Ports. •...
  • Page 45 • Member (1 to 9): Select desired SIP Trunk in each member field. When a call lands on SIP Trunk, SETU VGFX will route the call on any of these members as per member selection method programmed. You can program maximum 9 SIP Groups and each group can have maximum 9 members.
  • Page 46 Group Type field. Program Group Number, if Group is selected in Port/Group Type field. You may select from the following options: • 1-2 for FXS Port • 1-9 for SIP Trunk • 1-2 for FXO Port • 1-4 for Mobile Port Matrix SETU VGFX Quick Start...
  • Page 47 By default, it is set to 2 for all SIP Trunks. • Port Selection Method: Select the Port Selection method for routing the call to the destination port in this field. SETU VGFX supports following port selection methods: Ascending and Descending. By default, it is 'Ascending' for all SIP Trunks.

  • Page 48: Destination Number Determination Method

    Based on Calling Number: In this method, a call is routed to a specific number depending upon the calling party's number i.e. SETU VGFX will route the call to the destination number programmed for the calling party in the Calling Number Based table.
  • Page 49 • SETU VGFX supports following methods for determination of destination number on FXO Port. • Destination Number Not Required • Fixed Destination Number • Based on Calling Number • Manual Dial Default = Destination Number Not Required • If Destination Number Determination Method selected is "Fixed Destination Number"...
  • Page 50 Default = First entry is used for 'No Match Found' case and other entries are Blank. • Destination Number: Program destination number in this field. Maximum Length = 24 characters Valid digits are 0 to 9, *, # and (.) dot Matrix SETU VGFX Quick Start...
  • Page 51 Default = Blank If destination number to be dialed out is an IP Address then SETU VGFX will not check Destination Port Determination Method. Instead it will route the call using the SIP Trunk Group programmed for IP Dialing. (Please refer 'IP Dialing' feature in the System Manual for more details) (Refer "Routing Mechanism on FXO"...
  • Page 52 Calling Number: Program calling party number in this field. Maximum Length = 24 characters All ASCII characters are allowed Default = First entry is used for 'No Match Found' case and other entries are Blank Matrix SETU VGFX Quick Start...
  • Page 53 To program Destination Number Determination Method for SIP Trunks: Click on 'SIP Trunk Parameters2' link and select Destination Number Determination Method for each SIP Trunk. • SETU VGFX supports following methods for determination of destination number on SIP Trunk. • Destination Number Not Required •...
  • Page 54 Disconnect the Call Default = Disconnect the Call • If Destination Number Determination Method selected is 'Based on Calling number' then click on 'SIP Trunk Destination Number Determination: Calling Number Based' link and program the following parameters: Matrix SETU VGFX Quick Start...
  • Page 55 Valid digits are 0 to 9, *, # and (.) dot Default = Blank SETU VGFX supports only 'Manual Dial' method for determination of destination number on FXS Port. (Refer "Routing Mechanism on SIP" feature in System Manual for more details)

  • Page 56: Destination Port Determination Method

    To use this method, program 'Source Port Routing: Destination Number Based' table. SETU VGFX will check this table and place the call on the port programmed for the destination number dialed on the Source Port.
  • Page 57 • SETU VGFX supports following methods for determination of destination port for the calls originated on FXO Port. • Fixed • Destination Number Based • Calling Number Based Default = Fixed • If Destination Port Determination Method selected is "Fixed" then program...
  • Page 58 For Mobile Port: 1-4 Default = 2 • Port Selection Method: Select desired port selection method in this field. SETU VGFX will select the port to place the call as per this method. SETU VGFX supports following two methods: • Ascending •...
  • Page 59 Maximum Length: Program maximum length of destination number that can be dialed by the user in this field. If user dials a number greater than the number programmed for that FXO Port then SETU VGFX shall strip off the extra digits and route the call.
  • Page 60 Maximum Length = 24 characters All ASCII characters allowed Default = Blank • Routing Group: Program Routing Groups (1, 2 and 3) parameters in Destination Port Determination Method: Calling Number Based table as shown above. Matrix SETU VGFX Quick Start...
  • Page 61 To program Destination Port Determination Method for FXS Ports: Click on 'FXS Port Parameters2' link and select Destination Port Determination Method for each FXS Port. • SETU VGFX supports following methods for determination of destination port for the calls originated on FXS Port. • Fixed •...
  • Page 62 Total Ports: Program total ports to be checked while routing the call, if the port selected is found busy. You have following options: • For FXO and FXS Port: 1-2 • For SIP Trunk: 1-9 Matrix SETU VGFX Quick Start...
  • Page 63 For Mobile Port: 1-4 Default = '1' • Port Selection Method: Select desired port selection method in this field. SETU VGFX will select the port to place the call as per this method. SETU VGFX supports following two methods: • Ascending •...
  • Page 64 Maximum Length: Program maximum length of destination number that can be dialed by the user in this field. If user dials a number greater than the number programmed for that FXS port then SETU VGFX shall strip off the extra digits and route the call.
  • Page 65 Group Type field. You may select from the following options: • For FXS and FXO Port: 1-2 • For SIP Trunk: 1-9 • For Mobile Port: 1-4 • For FXS and FXO Group: 1-8 • For SIP Group: 1-9 Matrix SETU VGFX Quick Start...
  • Page 66 For Mobile Port: 1-4 Default = 2 • Port Selection Method: Select desired channel selection method in this field. SETU VGFX will select the channel to place the call as per this method. SETU VGFX supports following two channel selection methods: • Ascending •...
  • Page 67 Maximum Length: Program maximum length of destination number string that can be dialed by user in this field. If user dials a number string greater than the number length programmed in this field then SETU VGFX shall strip off the extra digits and route the call.
  • Page 68 'FXS' is used for routing the call. (Please refer 'Number Presentation on FXS Port' feature in the System Manual for more details) (Refer "Routing Mechanism on Mobile" feature in System Manual for more details) To program Destination Port Determination Method for SIP Trunks: Matrix SETU VGFX Quick Start...
  • Page 69 Click on 'SIP Trunk Parameters2' link and select Destination Port Determination Method for each SIP Trunk. • SETU VGFX supports following methods for determination of destination port for the calls originated on SIP Trunk. • Fixed • Destination Number Based •...
  • Page 70 For FXS and FXO Port: 1-2 • For SIP Trunk: 1-9 • For Mobile Port: 1-4 • For FXS and FXO Group: 1-8 • For SIP Group: 1-9 • For Mobile Group: 1-8 Default = FXS Port number '1' Matrix SETU VGFX Quick Start...
  • Page 71 For Mobile Port: 1-4 Default = 2 • Port Selection Method: Select desired port selection method in this field. SETU VGFX will select the channel to place the call as per this method. SETU VGFX supports following two channel selection methods: • Ascending •...
  • Page 72 Maximum Length: Program maximum length of destination number string that can be dialed by user in this field. If user dials a number string greater than the number length programmed in this field then SETU VGFX shall strip off the extra digits and route the call.
  • Page 73 CLI number on FXS Port: This field is applicable only when group type 'FXS' is used for routing the call. (Please refer 'Number Presentation on FXS Port' feature in the System Manual for more details) (Refer "Routing Mechanism on SIP" feature in System Manual for more details) Matrix SETU VGFX Quick Start...

  • Page 74: Network Port Parameters

    PPPoE Parameters: Program following parameters when connection type selected is PPPoE. • User ID: Enter PPPoE user id given by service provider manually in this field. Maximum Length: 16 characters All ASCII characters allowed Default = Blank Matrix SETU VGFX Quick Start...
  • Page 75 DNS Domain Name: Program DNS Domain Name in this field. Maximum Length = 40 characters All ASCII characters allowed • Dynamic DNS (DDNS): Dynamic DNS (DDNS) is a service that maps internet domain names to IP addresses. Matrix SETU VGFX Quick Start...
  • Page 76 Default = Blank • UDP NAT Keep Alive: When SETU VGFX is connected behind the NAT router and SIP messages are transported over UDP then UDP NAT Keep Alive messages are to be sent to refresh the UDP binding in the NAT router. UDP NAT Keep Alive settings can be done as follows: •...
  • Page 77 Alive message to refresh the TCP binding. TCP NAT Keep Alive settings can be done as follows: • Enable TCP NAT Keep Alive?: Select 'Yes' to enable SETU VGFX to send Keep Alive messages periodically to refresh the binding in the NAT router. Valid options: Yes/ No Default = No •...
  • Page 78 Default = Blank (Refer 'Port Parameters-SIP' in system manual for more details) SETU VGFX will reboot as soon as you submit the page after changing any of the Network Port Parameters and you will logout of the Web JEEVES. Matrix SETU VGFX Quick Start...
  • Page 79 • If SETU VGFX is connected directly to the Computer for configuring the system then remove the Ethernet Cable from the Computer and connect it to the Broadband Modem switch. • To know IP Address of your SETU VGFX, follow the steps given below: •...

  • Page 80: Default The Setu Vgfx

    Default the SETU VGFX SETU VGFX enables the user to default SETU VGFX and assign default values to all programmable parameters by using 'System Default' feature. This feature will set all parameters to factory set values except the following features:...

  • Page 81: Restore Se Password

    Switch On the system and wait till it gets initialize. • SE password gets default to 1234. • Switch Off SETU VGFX and restore the jumper in its original position i.e. BC. • Switch On the system again. • SE password gets default to 1234.

  • Page 82: Checking The Status

    You can program port LEDs for showing the status of SIP Trunks also. To program LEDs for showing the status of SIP Trunks, follow the steps given below: • Open Web JEEVES of SETU VGFX. (Refer “Accessing Web JEEVES”) •...
  • Page 83 By default, no LED indication is given for SIP Trunks. As a result, you cannot check the status of SIP Trunks when no LED is programmed for showing status of SIP Trunks. However, SETU VGFX allows you to check the status of SIP Trunks on the LCD of the conventional phone by issuing command.
  • Page 84 SIP Trunks Status Open Web JEEVES of SETU VGFX and click on the 'SIP Trunk Status' link. Following page will be displayed: Following is a brief description of the parameters displayed on the 'SIP Trunk Status' page. SIP Trunk Number: This field displays the SIP Trunk number.
  • Page 85 This reason is displayed when Outbound is enable but Outbound programmed address is not configured Router’s IP address is not This reason is displayed when Router’s IP Address is to be used in programmed signaling but address is not programmed. Matrix SETU VGFX Quick Start...
  • Page 86 Network Status Open Web JEEVES of SETU VGFX and click on the 'Network Status' link. Following page will be displayed: Following is a brief description of the parameters displayed on the 'Network Status' page. IP Address: This field displays IP address currently assigned to SETU VGFX.
  • Page 87 When ‘notfqdn’ is received Host not in this account When ‘!Yours’ is received Stack Status: In this field, strings such as Idle, DHCP Response wait, PPPoE response wait, NAT checking response wait, construct and error is displayed. Matrix SETU VGFX Quick Start...

  • Page 88: Test Call

    SIP Trunk is 'FXS Port'. When remote caller calls SIP Trunk of SETU VGFX, the call is routed to the FXS Port and the telephone instrument connected to that FXS Port starts ringing.

  • Page 89: Appendix

    Current Call To Ignore the Waiting Call and Speech with Current Call To Accept the Waiting Call and Hold Current Call To Accept the Waiting Call and Release Current Call For Blind Transfer For Conference Matrix SETU VGFX Quick Start...
  • Page 90 For Attended Transfer ^ (On-Hook) For Making a New Call To Disconnect Call Dial # as end of dialing if end of dialing digit is programmed or wait till expiry of inter digit wait timer. Matrix SETU VGFX Quick Start...

  • Page 91: System Commands

    24-#*-Go On-Hook To Display the Signal Strength of the GSM Network 26-Mobile Port-#* To Display the Status of SIP Trunks 27-SIP Trunks-#* 236-Mobile Port-Preferred To Program Preferred Network Mode for the Mobile Port N/w Mode-#* Matrix SETU VGFX Quick Start...
