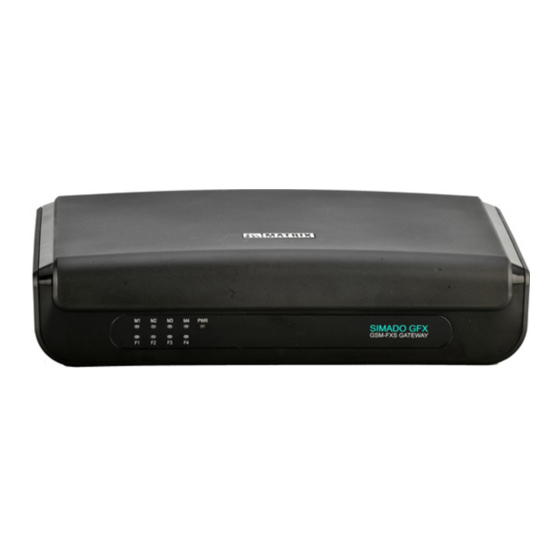

SIMADO GFX44
System Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMADO GFX44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix SIMADO GFX44

Summary of Contents for Matrix SIMADO GFX44

  • Page 1 SIMADO GFX44 System Manual...
  • Page 3 SIMADO GFX44 Multi-port Mobile-FXS Gateway with LCR System Manual...
  • Page 4 Neither Matrix Comsec nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the purchaser or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec's operating and maintenance instructions.

  • Page 5: Table Of Contents

    Introduction..............................1 Welcome ................................1 About this System Manual ..........................1 How to Read this System Manual ........................2 Know your SIMADO GFX44 ........................... 5 Overview ................................5 Applications of SIMADO GFX44 ......................... 8 Installing SIMADO GFX44 ..........................9 Before You Start ..............................9 Protecting SIMADO GFX44 ..........................
  • Page 6 Daylight Saving Time Adjustment ........................120 Emergency Number Dialing ..........................124 Fixed Dialing ..............................127 International Mobile Equipment Identity (IMEI) ....................130 Multi-Stage Dialing ............................132 Number Lists ..............................137 Returned Calls to Original Callers (RCOC) ..................... 140 Routing Group ..............................144 Routing Type ..............................

  • Page 7: Introduction

    CHAPTER 1 Welcome Thank you for choosing SIMADO GFX44! This product is designed to give you the great performance, with real ease of use. We hope you will make optimum use of this feature-packed Multi-Port GSM-FXS Gateway. Please read this document carefully before installing your SIMADO GFX44.

  • Page 8: How To Read This System Manual

    System Configuration can be done using the configuration software Jeeves, or by dialing command strings from a phone connected to the FXS Port of SIMADO GFX44. You can also dial the commands from any remote landline/ mobile phone by calling the Mobile Port of SIMADO GFX44.
  • Page 9 You will find the terms 'SIMADO GFX44’ and 'System' used interchangeably throughout this system manual. Using this System Manual, you will be able to install, operate and make optimum use of SIMADO GFX44. However, if you encounter any technical problems, please contact your dealer/reseller or the Matrix Customer Care.
  • Page 10 Matrix SIMADO GFX44 System Manual...

  • Page 11: Know Your Simado Gfx44

    2G Quadband and 3G Triband operation allowing it to work with any GSM network. On PSTN side, it supports FXS interfaces. With the Least Cost Routing (LCR) feature of SIMADO GFX44, you can have your outgoing calls routed through the most Besides this, it offers benefits such as Call Detail Records for keeping records of cost effective port for those calls.
  • Page 12 Mobile Ports • The 4 Mobile Ports are located on the four modules inside SIMADO GFX44. The modules may be either GSM (2G) or UMTS (3G). • You can insert and use as many as 4 SIM Cards simultaneously, which may be of the same or of different service providers.
  • Page 13 Call Detail Records (CDR) • Returned Calls to Original Callers (RCOC) • SIM PIN • Remote Programming • Emergency Number Dialing • Caller Line Identification and Presentation (CLIP) • International Mobile Equipment Identity (IMEI) • Universal Routing Matrix SIMADO GFX44 System Manual...

  • Page 14: Applications Of Simado Gfx44

    SIMADO GFX44 finds its applications in corporate offices, factories, call centers, hotels and such other establishments. SIMADO GFX44 can be used as a stand-alone device to make calls over GSM/UMTS networks. It can also be interfaced with a PBX as a gateway between GSM/UMTS and PSTN network for cost savings.

  • Page 15: Installing Simado Gfx44

    Installing SIMADO GFX44 CHAPTER 3 Before You Start Before you begin to install and set up the hardware of SIMADO GFX44, make sure you have following items ready: • A suitable location to install SIMADO GFX44. • Atleast one telephone instrument with LCD display to connect to a FXS Port. You can connect as many as four You can also connect the FXS Port of SIMADO GFX44 to a PBX.
  • Page 16 • Reduce the risk of electric shock or damage to SIMADO GFX44 by taking the product to a qualified technician for service or repair. Removing covers or opening SIMADO GFX44 or incorrect reassembly may cause electric shock.

  • Page 17: Getting Started

    • Once you have connected the system to the network and the different devices, mount SIMADO GFX44 on the wall, aligning the screw holes on the cover with the screws you fixed. Matrix SIMADO GFX44 System Manual...
  • Page 18 “SIM PIN”. • If your SIMADO GFX44 has a 3G module, you must also disable Call Waiting on the SIM Card. This will prevent current calls from being disconnected whenever there is a waiting call on the Mobile Port. •...
  • Page 19 Screw the antenna (provided with the package) on to the Antenna Connector. Make sure the connection is tight enough to make proper contact. • Connect telephone instruments with CLI display to the FXS Ports of SIMADO GFX44 using the RJ11 cables provided to you in the product package. •...
  • Page 20 Connect the 12V DC Power Adapter provided to you in the product package to the Power jack of SIMADO GFX44. Plug the adapter into the power outlet. Use only the power adapter included in the SIMADO GFX44 package. Using an alternative non-qualified power adapter may possibly damage the unit.

  • Page 21: Switching On Simado Gfx44

    500ms  GSM initialization starts. • GSM initialization takes approximately 50-60 seconds. • On successful completion of GSM initialization, SIMADO GFX44 attempts network registration. • SIMADO GFX44 takes a few seconds to connect to the network. • After successful registration with the network, all LEDs are turned off.
  • Page 22 To configure the basic parameters of the system, refer Chapter 4: “Configuring SIMADO GFX44”. To configure advanced features of the system, see the relevant topics in Chapter 5: “Features of SIMADO GFX44”. Matrix SIMADO GFX44 System Manual...

  • Page 23: Test Calls

    Test Calls You can receive and make calls either from a cell phone or from the analog phone connected to SIMADO GFX44. Making a Call • Lift the handset of the telephone instrument connected to the FXS Port of SIMADO GFX44. You will get the dial tone.
  • Page 24 Matrix SIMADO GFX44 System Manual...

  • Page 25: Configuring Simado Gfx44

    Using its graphic user interface, Jeeves. • By dialing commands from a phone connected to the FXS Port of SIMADO GFX44. You can also dial the commands from any remote landline/mobile phone by calling the Mobile Port of SIMADO GFX44.
  • Page 26 French, German, Portuguese and Russian. Select the language in which you want the contents of Jeeves to be displayed Help: In Help, you will be able to access, the SIMADO GFX44 System Manual, SIMADO GFX44 Quick Start, and information about Jeeves.
  • Page 27 Allows you to set the mode of Network Selection for registration of the Mobile Network Selection Mobile Port with the suitable network. Allows you to lock the Mobile Port of SIMADO GFX44 to a particular cell Mobile Port-BCCH Locking or channel or BTS (Base Transceiver Station).
  • Page 28 Feature Button Function Upload Changes To upload particular changes done in a Feature Dialog box on to SIMADO GFX44. Upload Page To upload configuration on to SIMADO GFX44. Download Page To download a particular feature configuration from SIMADO GFX44 to the Jeeves.
  • Page 29 Port of SIMADO GFX44. Installing Jeeves • Insert the Matrix SIMADO GFX44 CD provided to you with the product in the CD Drive of your computer. It is an auto-run CD. • The CD drive window will open. If the CD does not open by itself, click on My Computer  CD Drive.
  • Page 30 The Main Menu of the Jeeves will open. Click the Login button. • The Login Dialog box will open. • In Login Dialog box, select the COM Port of your computer to which SIMADO GFX44 is connected. • In SE Password, enter the default SE Password 1234. •...
  • Page 31 For example, if you want to configure FXS Port Parameters, click the FXS Configuration button. FXS Configuration Dialog box will open. • Configure FXS Port Parameters as per your requirement and click the Upload Page button to upload the changes on to SIMADO GFX44. See “Uploading Jeeves configuration to SIMADO GFX44” below. •...
  • Page 32 Following alert message will appear. Click the Yes button to upload the configuration on to SIMADO GFX44. • All your configuration will be uploaded to SIMADO GFX44. You can use SIMADO GFX44 while uploading the Jeeves configuration. Matrix SIMADO GFX44 System Manual...
  • Page 33 Click the Yes button. Jeeves configuration will be uploaded to SIMADO GFX44 in few seconds. Later on, if you make any changes in the Jeeves, you can upload the same to SIMADO GFX44 simultaneously by clicking the Upload Page button on the Feature Dialog box.
  • Page 34 SIMADO GFX44. Saving Jeeves configuration to your Computer Once you have finished configuring your SIMADO GFX44, you must save existing configuration to a location on your computer as a back-up. You may need to restore your existing configuration in future.
  • Page 35 Later on, if you make any changes in the configuration, you may click Save button on the Main Menu to save those changes on your computer. You can make changes in the configuration and simultaneously save it on your computer by clicking the Save button on the Feature Dialog box. Matrix SIMADO GFX44 System Manual...
  • Page 36 Select the configuration file saved on your computer and then click the Open button. The Main Menu of Jeeves will open. Downloading SIMADO GFX44 configuration to Jeeves Sometimes, you may require to download SIMADO GFX44 configuration to Jeeves to make changes in it and upload it again in the system. To download SIMADO GFX44 configuration to Jeeves,...
  • Page 37 • On the Main Menu, click the Download button. • Following alert message will appear. Click the Yes button to download SIMADO GFX44 configuration to Jeeves. • SIMADO GFX44 configuration will be downloaded to the Jeeves. You can use SIMADO GFX44 while downloading SIMADO GFX44 configuration to Jeeves.
  • Page 38 Jeeves. When you click Fast download button, SIMADO GFX44 will restart and all the ongoing conversations will be disconnected. You will not be able to use SIMADO GFX44 when the fast downloading process is on. • When you click the Fast Download button, following alert message will appear on the screen.
  • Page 39 Open Mobile SIM PIN Dialog box by clicking Mobile SIM PIN button on the Main Menu. • Click the Download Page button. • SIM PIN stored in the SIM Card inserted in the GSM module of SIMADO GFX44 will be displayed on the Jeeves. Matrix SIMADO GFX44 System Manual...
  • Page 40 Configuring SIMADO GFX44 by dialing commands You can configure SIMADO GFX44 by dialing commands from a phone connected to the FXS Port of SIMADO GFX44. You can also dial the commands from any remote landline/mobile phone by calling the Mobile Port of SIMADO GFX44.

  • Page 41: Fxs Port Parameters

    In FXS Configuration, set the following port parameters to the desired values: • Port Enable? Keep the FXS Port is enabled. SIMADO GFX44 will route calls through the FXS Port only if it is enabled. If you do not want to use the FXS Port, disable the FXS Port by selecting No.
  • Page 42 • Complex Default: 600 ohm If AC impedance of the telephone connected to the FXS Port of SIMADO GFX44 does not match with the AC impedance of the FXS Port, it may lead to the signal loss. • Answer Signaling: Answer Signaling is a signal generated on the FXS Port to indicate that the called party has answered the call (call maturity).
  • Page 43 Time Table: You may assign a Time Table to the FXS Port. By default, Time Table 1 is assigned to all FXS Ports. To understand and know how to configure a Time Table, see “Time Table”. Matrix SIMADO GFX44 System Manual...
  • Page 44 “Routing Group”. Configuring FXS Ports by dialing command • Enter Programming mode (for detailed instructions see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: Enable/Disable FXS Port • To enable/disable the FXS Port, dial: 251-FXS Port-Code-#* Where, FXS Port is from 1 to 4.
  • Page 45 To configure the Inter Digit Wait Timer for all FXS Ports, dial: 253-*-Inter Digit Wait Timer-#* First Digit Wait Timer • To configure First Digit Wait Timer for the FXS Port, dial: 255-FXS Port-First Digit Wait Timer-#* Matrix SIMADO GFX44 System Manual...
  • Page 46 AC Impedance • To configure AC Impedance for the FXS Port, dial: 260-FXS Port-Code-#* Where, FXS Port is from 1 to 4. Code is 1 for 600 Ohms 2 for 900 Ohms 3 for Complex Matrix SIMADO GFX44 System Manual...
  • Page 47 Default: 600 Ohms To configure AC Impedance for all FXS Ports, dial: 260-*-Code-#* The new value of AC impedance will be effective only after you restart SIMADO GFX44. Answer Signaling • To configure Answer Signaling on the FXS Port, dial:...
  • Page 48 To enable/disable fixed dialing on all FXS Ports, dial: 171-*-Code-#* • To configure Fixed Destination Number for fixed dialing on the FXS Port, dial: 172-FXS Port-Number String-#* Where, FXS Port is from 1 to 4. Matrix SIMADO GFX44 System Manual...
  • Page 49 To assign allowed number list to the FXS Port, dial: 111-FXS Port-Number List-#* Where, FXS Port is from 1 to 4. Number List is from 01 to 16. Default: 01 To assign allowed number list to all FXS Ports, dial: 111-*-Number List-#* Matrix SIMADO GFX44 System Manual...
  • Page 50 203-FXS Port-Routing Group-#* Where, FXS Port is from 1 to 4. Routing Group is from 01 to 16. Default: 04 To assign a Routing Group to all FXS Ports for Time Zone 1, dial: 203-*-Routing Group-#* Matrix SIMADO GFX44 System Manual...
  • Page 51 • To assign a Routing Group to the FXS Port for Time Zone 3, dial: 205-FXS Port-Routing Group-#* Where, FXS Port is from 1 to 4. Routing Group is from 01 to 16. Default: 04 Matrix SIMADO GFX44 System Manual...
  • Page 52 FXS Port is from 1 to 4. Routing Group is from 01 to 16. Default: 04 To assign a Routing Group to all FXS Ports for Time Zone 4, dial: 206-*-Routing Group-#* • Dial 00-#* to exit the programming mode. Matrix SIMADO GFX44 System Manual...

  • Page 53: Mobile Port Parameters

    In Mobile Configuration, set the following port parameters to the desired values: • Port Enable? Keep the Mobile Port enabled. SIMADO GFX44 will route calls through the Mobile Port only if it is enabled. If you do not want to use the Mobile Port, disable the Mobile Port by selecting No.
  • Page 54 DTMF Detection Minimum ON Duration (msec): When a DTMF event is received from the GSM module, SIMADO GFX44 will consider the event as a valid digit, if the duration of the event is equal to or greater than the Minimum ON Duration you configure. Configure appropriate DTMF Detection Minimum ON Duration, if you have selected DTMF Detection option as ‘Using GSM Engine’.
  • Page 55 SIMADO GFX44 supports three types of RCOC: • On Busy: SIMADO GFX44 will store the call record when the called party is found busy. By default, RCOC On Busy is disabled. Enable it, if you want to use RCOC On Busy.
  • Page 56 Call Minutes: If you service provider offers free minutes for calls. You may enable the Call Minutes feature on the Mobile port, by configuring the following parameters: • Enable?: Select Yes to enable this feature. Default: No. Matrix SIMADO GFX44 System Manual...
  • Page 57 Options when Minutes are Used?: SIMADO GFX44 provides two options for outgoing calls after the free minutes offered by the service provider are used up. These options are: • Block Outgoing Calls: If this option is selected, SIMADO GFX44 will not allow any outgoing calls after the free minutes are utilized. •...
  • Page 58 Example: If number string to be dialed out on the Mobile Port is PPP234 and pause timer is 3 seconds, SIMADO GFX44 will dial out digit 2 after P+P+P seconds, that is after 3+3+3=9 seconds. To configure Pause Timer for all Mobile Ports, dial:...
  • Page 59 DTMF Detection Option • To configure DTMF Detection Option, dial: 226-Mobile Port-DTMF Detection Option-#* Where, Mobile Port is from 1 to 4 DTMF Detection Option is 1 for Using DSP 2 for Using GSM Engine Matrix SIMADO GFX44 System Manual...
  • Page 60 Tx Gain • To configure Tx Gain for the Mobile Port, dial 273-Mobile Port-Transmit Gain-#* Where, Mobile Port is from 1 to 4. Code is 1 for Very Low 2 for Low 3 for Normal Matrix SIMADO GFX44 System Manual...
  • Page 61 To configure Preferred N/w Mode for all Mobile Ports, dial: 236-*-Preferred N/w Mode-#* CLIR • To enable/disable CLIR on the Mobile Port, dial: 285-Mobile Port-Code-#* Where, Mobile Port is from 1 to 4. Code is 0 for Disable 1 for Enable Matrix SIMADO GFX44 System Manual...
  • Page 62 To enable/disable fixed dialing on the Mobile Port, dial: 175-Mobile Port-Code-#* Where, Mobile Port is from 1 to 4. 0 for Disable 1 for Enable Default: Enable To enable/disable fixed dialing on all Mobile Ports, dial: 175-*-Code-#* Matrix SIMADO GFX44 System Manual...
  • Page 63 To assign allowed number list to the Mobile Port, dial: 113-Mobile Port-Number List-#* Where, Mobile Port is from 1 to 4. Number List is from 01 to 16. Default: 01 To assign an allowed number list to all Mobile Ports, dial: 113-*-Number List-#* Matrix SIMADO GFX44 System Manual...
  • Page 64 Number List is from 01 to 16. Default: 06 To assign a substitute number list to all Mobile Ports, dial: 124-*-Number List-#* Time Table • To assign time table to the Mobile Port, dial: 333-Mobile Port-Time Table-#* Matrix SIMADO GFX44 System Manual...
  • Page 65 Mobile Port is from 1 to 4. Routing Type is 0 for Off 1 for Answer Number Based 2 for Answer Fixed 3 for Direct Default: Direct To assign Routing Type for Time Zone 2 to all Mobile Ports, dial: 186-*-Routing-Type-#* Matrix SIMADO GFX44 System Manual...
  • Page 66 To assign Routing Type for Time Zone 4 to the Mobile Port, dial: 188-Mobile Port-Routing-Type-#* Where, Mobile Port is from 1 to 4. Routing Type is 0 for Off 1 for Answer Number Based 2 for Answer Fixed 3 for Direct Default: Direct Matrix SIMADO GFX44 System Manual...
  • Page 67 To Enable/Disable Scheduled Reset for Call Minutes for the Mobile Port, dial: 313-Mobile Port-Code-#* Where, Mobile Port is from 1 to 4. Code is 0 for Disable 1 for Enable Default: Enable To enable/disable Scheduled Reset for all Mobile Ports, dial: 313-*-Code-#* Matrix SIMADO GFX44 System Manual...
  • Page 68 To Reset Minutes manually for the Mobile Port, dial: 315-Mobile Port-#* Where, Mobile Port is from 1 to 4. To reset Minutes manually for all Mobile Ports, dial: 315-*-#* • Dial 00-#* to exit the programming mode. Matrix SIMADO GFX44 System Manual...

  • Page 69: Mobile Network Selection

    Network Registration Retry Timer If SIMADO GFX44 is located in an area where more than one Network Operator is available, it is possible that the SIM Card may get registered with another available network and result in Roaming charges. To avoid this, you must disable Automatic Network Selection and enable Manual Network Selection.
  • Page 70 • Configure Network Operator Code in decreasing order of their priority. Default: 00000 for all Priorities. You may check the name and the code of the network operator with which SIMADO GFX44 is registered in “Mobile Port Status”. Configuring Mobile Network Selection by dialing commands •...

  • Page 71: System Parameters

    CLIR Feature Access Code: You can hide your identity from being displayed to the calling party by using the CLIR feature of SIMADO GFX44. The default access code for CLIR is #31#. You may change this code to a desired value.
  • Page 72 ‘+’ is to be replaced in the CLI. Enter the number string with which you want to replace '+' received as prefix of the calling party number. If you keep the number string field blank, SIMADO GFX44 will remove the '+' sign from the CLI of the calling party and present the remaining digits to the Called Party.
  • Page 73 You may remove country code from the CLIP received on the Mobile Port, before presenting it on the destination port if required. Keep this check box enabled, if you want SIMADO GFX44 to remove country code from the CLIP. By default, it is enabled.
  • Page 74 0.1on 0.1on 3.2off 0.4off 0.25off 0.1off 0.9off Saudi Arabia cont. 1.2on 0.5on 0.25on 0.1on 0.1on 4.6off 0.5off 0.25off 0.1off 0.9off Singapore cont. 425*24 0.4on 0.75on 0.25on 0.1on 0.1on 0.2off 0.75off 0.25off 0.1off 0.9off 0.4on 2.0off Matrix SIMADO GFX44 System Manual...
  • Page 75 For code for each country refer the first column of this table. CADENCE (In Seconds) Code Country Frequency (Hz) ON 1 OFF 1 ON 2 OFF 2 Australia Belgium Brazil China Egypt France Germany 0.79 Greece India Israel Italy Japan Matrix SIMADO GFX44 System Manual...
  • Page 76 Minimum DTMF Detection Level is from 01 to 11. Minimum DTMF Detection Level Meaning 0 dBm -3 dBm -6 dBm -9 dBm -12 dBm -15 dBm -18 dBm -21 dBm -24 dBm -27 dBm -30 dBm Default: -30dBm (11) Matrix SIMADO GFX44 System Manual...
  • Page 77 To remove the Country Code from the CLIP received on the Mobile Port, dial: 219-Code-#* Where, Code is 0 for Do not remove Country code from CLIP. 1 for Remove Country code from CLIP. Default: Remove Country Code from CLIP Matrix SIMADO GFX44 System Manual...
  • Page 78 Country Code can be of maximum 6 digits. Valid digits are from 0 to 9 and + Default: Blank • To clear the Country code, dial: 220-#* • Dial 00-#* to exit the programming mode. Matrix SIMADO GFX44 System Manual...

  • Page 79: Mobile Port Status

    Mobile Port Status You can view the status of the functioning of each Mobile Port of SIMADO GFX44 as well as the status of certain port parameters such Network Operator Code, Signal Strength, SIM ID, IMSI Number on Jeeves. You can also view Network Type and Port Status by dialing commands from a phone connected to SIMADO GFX44.
  • Page 80 To view the Network Type with which the Mobile Port is registered, dial: 239-Mobile Port-#* Where, Mobile Port is from 1 to 4. One of the following will appear on the LCD of the telephone instrument connected to SIMADO GFX44: Code Meaning GSM Compact...
  • Page 81 If CLI type is set as DTMF, display of Network Type will be as under: If CLI type is set as FSK, display of Network Type will be as under: • To view the Mobile Port status on the display of the phone connected to SIMADO GFX44, dial: 280-Mobile Port-#* Where, Mobile Port is from 1 to 4.

  • Page 82: Signal Strength

    Signal strength is measured in dBm and it ranges from -113dBm to -51dBm. To be able to check the signal strength, make sure that the telephone connected to SIMADO GFX44 has a display and the CLI Type of the FXS Port is configured as either DTMF or FSK. For instructions on configuring CLI Type, “FXS Port...
  • Page 83 When FSK CLI is set as CLI Type on the FXS Port of SIMADO GFX44, the signal strength will be displayed as under: 111111111111 Strength: -xxxdBm The numbers indicate the strength of the network. When network signal strength is high, the display would be as under:...

  • Page 84: System Engineer (Se) Password

    System Engineer (SE) Password You need System Engineer (SE) password to enter the programming mode and configure SIMADO GFX44. The default SE Password is 1234. You may change the SE Password to the desired value using Jeeves or by dialing a command through a phone.
  • Page 85 Switch off the system after 5 minutes. • Restore jumper J9 to its original BC position. • Replace the cover and switch on the system again. • The SE Password will be set to its default value. Matrix SIMADO GFX44 System Manual...

  • Page 86: Reinstate The Default Settings

    Reinstate the Default Settings All the configurable parameters of SIMADO GFX44 are assigned preset values, referred to as factory defaults or default settings. Default settings can be altered and customized to match the user’s requirements and preferences. You may also restore the default settings in the system, whenever needed. When you reinstate the default settings, the values of most parameters will set to factory defaults.
  • Page 87 “Configuring SIMADO GFX44 by dialing commands”) • To load default configuration in SIMADO GFX44, dial: 292-Reverse SE Password-#* Reverse SE password is a number string of maximum 4 digits. For example, if your SE Password is 1234, you need to dial 4321 as Reverse of SE Password.

  • Page 88: Restart The System

    On the Main Menu, click the Restart SIMADO GFX44 button. • An alert message will appear on your screen: “This option will restart SIMADO GFX44. All ongoing conversations will be disconnected. Do you wish to continue?” (Yes/No) Matrix SIMADO GFX44 System Manual...
  • Page 89 • Click the Yes button. SIMADO GFX44 will restart. To restart SIMADO GFX44 by dialing command Follow the steps given below: • Enter the Programming mode. (see “Configuring SIMADO GFX44 by dialing commands”) • Dial 291-#* • SIMADO GFX44 will restart.

  • Page 90: Software Version And Revision Display

    Software Version and Revision Display You can view the current version-revision of the software installed in SIMADO GFX44 on Jeeves. To view current software version-revision, SIMADO GFX44 must be switched on and have attained normal working condition. To view Software Version-Revision Follow the steps given below: •...

  • Page 91: Debug

    Data Bits Flow Control None • Set the attributes of the COM Port of the computer, to which you have connected SIMADO GFX44, to the above values. • Enter Programming mode from a phone connected to the FXS port. See “Configuring SIMADO GFX44 by...
  • Page 92 Mobile Port number is 1 to 4. Code is 0 for Disable 1 for Enable Default: Disable. • Dial 00-#* to exit the programming mode. Matrix SIMADO GFX44 System Manual...

  • Page 93: Features Of Simado Gfx44

    The dialed number will be denied, if it matches with the Denied Number list. If the number dialed from the FXS Port matches with an Emergency number, SIMADO GFX44 will not compare the dialed number string with the Allowed and Denied Number lists.
  • Page 94 Select No, if you do not want to apply this logic on the FXS Port. • In Allowed Number List, assign the Allowed Number List you have configured for the FXS Port. By default, Number List 01 is assigned to all FXS Ports. Matrix SIMADO GFX44 System Manual...
  • Page 95 In Denied Number List, assign the Denied Number List to the Mobile Port. By default, Number List 06 is assigned to all Mobile Ports. • Click the Upload Changes or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 96 To enable/disable allowed/denied logic on all Mobile Ports, dial: 116-*-Code-#* • To assign Allowed Number List to the Mobile Port, dial: 113-Mobile Port-Number List-#* Where, Mobile Port is from 1 to 4. Number List is from 01 to 16. Default: 01 Matrix SIMADO GFX44 System Manual...
  • Page 97 Mobile Port is from 1 to 4. Number List is from 01 to 16. Default: 06 To assign Denied Number List to all Mobile Ports, dial: 114-*-Number List-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 98: Automatic Number Translation

    Out of habit, a user dials a number, 952668263172 from the telephone instrument connected to the FXS Port. SIMADO GFX44 routes this call through the Mobile Port to the desired destination. However, the GSM network does not understand the dialed number string, because it expects the user to dial +912668263712 and rejects the call.
  • Page 99 In Substitute Number List, assign the Substitute Number List you have configured for the Mobile Port. By default, Number List 06 is assigned to all Mobile Ports. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. Matrix SIMADO GFX44 System Manual...
  • Page 100 • Click OK button to return to the Main Menu. Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To configure Number Lists, see “Number Lists” topic.

  • Page 101: Bcch Locking

    BCCH Locking BCCH Locking feature enables you to lock the Mobile Port of SIMADO GFX44 to a particular cell or channel or BTS (Base Transceiver Station) for various reasons such as: • better network availability. • minimum call drop due to bad signal/ network failure.
  • Page 102 Given below is the description of various BCCH Locking status indication messages, that will appear in this field. STATUS DESCRIPTION Trying to Displayed when user selects Manual BCCH Locking as 'No' from 'Yes' and module Lock is in initialization process after system or module restart. Matrix SIMADO GFX44 System Manual...
  • Page 103 If you want to lock the Mobile Port to a particular cell you want, select Yes. • Click the Manual Cell Locking button to lock Mobile Port to the cell you selected. When you click the Lock button, an alert message will appear: Matrix SIMADO GFX44 System Manual...
  • Page 104 You can also refresh the BCCH Selection parameters whenever you want by first clicking the Manual Refresh button and then clicking the Download Page button. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.

  • Page 105: Call Detail Record (Cdr)

    FXS Ports. SIMADO GFX44 can store upto 200 entries in Call Detail Records and these entries are stored using First In First Out method. Call records remain stored even when the system is set to default. However, records will be cleared when you change Firmware version of the system.
  • Page 106 Ports. Set the range of Mobile Ports in the From and To fields. You can also generate report of a single Mobile Port by setting the same port number in the From and To fields. Matrix SIMADO GFX44 System Manual...
  • Page 107 Click the Capture Report button. The Save as window will appear on your screen. Select the appropriate location and give an appropriate file name to create a file for capturing CDR report. Click the Save button to capture report. A notepad file of CDR report will be created. Matrix SIMADO GFX44 System Manual...
  • Page 108 If you want to clear the CDR stored in the buffer, use the Clear Buffer button. The following alert message will appear on the screen: "This option will clear the entire buffer in SIMADO GFX44. Do you wish to continue?" Click the Yes button.
  • Page 109 Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To start/stop capturing CDR report, dial: 131-Code-#* Where, Code is 0 for Abort Report 1 for Start Report Default: Abort Report •...
  • Page 110 Default Filters for CDR are: All FXS Ports, All Mobile Ports, Date from 01-01-2007 to Current Date, Time 00:00 to 23:59, Caller Number List 01, Called Number List 01 and Duration more than 0001 second. By default, CDR report is Blank. • Dial 00-#* to exit the programming mode. Matrix SIMADO GFX44 System Manual...
  • Page 111 MOB 3 9724341592 01-Jan-2012 12:14:51 11 MOB 2 FXS 3 +919724341603 01-Jan-2012 12:15:02 12 MOB 4 FXS 1 +919898572368 01-Jan-2012 12:16:06 13 FXS 4 MOB 1 9974098917 01-Jan-2012 12:15:56 -------------------------------------------------------------------------------- Matrix SIMADO GFX44 V1R20 Page: 01 Matrix SIMADO GFX44 System Manual...

  • Page 112: Call Minutes

    SIMADO GFX44 also maintains a record of the total minutes used in the form of a Minute Used Counter. When an outgoing call is made through the Mobile Port, the system will update the Minutes Used Counter simultaneously.
  • Page 113 You can use the Manual Reset button to reset call minutes allowed and used whenever you want. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 114 Click OK button to return to the Main Menu. Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To Enable/Disable Call Minutes feature on the Mobile Port, dial:...
  • Page 115 To exit programming mode, dial 00-#* Viewing Minutes Used on a Telephone • To view Minutes Used on the telephone instrument connected to the FXS port, enter the Programming mode. (See “Configuring SIMADO GFX44 by dialing commands”.) • Go Off-Hook. •...
  • Page 116 Go Off-Hook again, you will get dial tone. • Dial 00#* to exit the programming mode. If FSK CLI is set on the FXS Port of SIMADO GFX44 then the Minutes Used will be displayed in the format as shown below: Number field: 0050...

  • Page 117: Call Proceeding Tone

    In SIMADO GFX44, when a user dials a number, it gets routed through one of the Mobile Ports. Many a times, due to silence generated by the mobile network, the user might think that the call has been disconnected. To prevent this silence, it is desirable that some kind of tone is played to the user to indicate the establishment of the call in the network.
  • Page 118 • In SIMADO GFX44 Parameters, select the type of Call Proceeding Tone you want SIMADO GFX44 to play. You can select either Network tone or SIMADO Tone. Default: Network Tone. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44.

  • Page 119: Call Progress Tones

    Confirmation Tone • Ring Back Tone Call Progress Tones are country specific. Tone standards vary from country to country. SIMADO GFX44 enables you to select the Call Progress Tones to match the tone standards of your country. How to Configure Configuring using Jeeves •...
  • Page 120 Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To configure Call Progress Tone Type for a specific country, dial: 281-Code-#* For Codes of countries supported, see the first column in the table below.
  • Page 121 In the above table, * refers to modulation of two frequencies (f1 and f2) and + refers to addition of two frequencies. Cont. is abbreviation for continuous. Default: 10 (India) • To exit the programming mode, dial 00-#*. Matrix SIMADO GFX44 System Manual...

  • Page 122: Calling Line Identification Restriction (Clir)

    To apply CLIR on all calls, in Mobile Configuration, scroll to CLIR. • Select Enable. Default: Disabled. • Click the Upload Changes button or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu. Matrix SIMADO GFX44 System Manual...
  • Page 123 • To change the CLIR Access code, on the Main Menu, click the SIMADO GFX44 Parameters button. • In SIMADO GFX44 Parameters, change the CLIR Feature Access Code to the desired value. Default: #31#. Make sure you inform your user about the new access code.

  • Page 124: Date And Time

    How to configure Configuring using Jeeves • The RTC of SIMADO GFX44 is synchronized with the current date and time of the computer to which it is connected. So, make sure the date and time of your computer are correct. •...
  • Page 125 Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To configure current Date in SIMADO GFX44, dial: 296-DD-MM-YYYY-#* Where, DD is the date from 01 to 31. MM is the month from 01 to 12.

  • Page 126: Daylight Saving Time Adjustment

    When SIMADO GFX44 is installed in a country/region where DST is used, it is necessary to synchronize the Real Time Clock of SIMADO GFX44 with the local time. So, if you are installing SIMADO GFX44 in a country where DST is used, find out the DST convention currently in use in that country, and adjust DST accordingly.
  • Page 127 DST ends. • Click the Upload Changes button or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 128 Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To select Forward Time Adjustment Type, dial: 321-DST Forward Time Adjustment Type-#* Where, DST Forward Adjustment Type is...
  • Page 129 For example: In Syria, the DST ends on 1st October of every year. The clock changes from 23:59 (midnight of 1st October) to 23:00. This means that DST should be changed on 30th September at 23:59 to 23:00. To affect DST changes dial: 326-30-09-23-59-22-59-#* • To exit programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 130: Emergency Number Dialing

    SIMADO GFX44 will check the Emergency Number Table first. • When the dialed number matches with an Emergency Number, SIMADO GFX44 will not check the Allowed and Denied Number Lists or the Automatic Number Translation Table. It will dial out the number.
  • Page 131 • In System Firmware Version V1R19, when 2G GSM engine Sierra Wireless SL6087 is installed, SIMADO GFX44 will support the following Emergency Numbers with and without SIM present in the system. Emergency Numbers with SIM present in the system: •...
  • Page 132 For each Emergency Number in the table, configure the routing group. Emergency number will be dialed out using the routing group configured in the table. SIMADO GFX44 supports 16 routing groups. By default, Routing Group 04 will be used for routing the emergency numbers.

  • Page 133: Fixed Dialing

    Now, whenever you go Off-Hook on FXS Port 2, SIMADO GFX44 will dial out the number 2654227 after the expiry of First Digit Wait Timer. • If you dial any other number before the expiry of First Digit Wait Timer, SIMADO GFX44 will dial out that number. How to configure Configuring using Jeeves •...
  • Page 134 First Digit Wait Timer after going Off-Hook. Default: Blank. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 135 Number String can be of maximum16 characters. Allowed characters are 0-9, #, *, A, B, C, D, F, P, W and To configure Fixed Destination Number for Fixed Dialing on all Mobile Ports, dial: 176-*-Number String-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 136: International Mobile Equipment Identity (Imei)

    The Network will allow the GSM module to access the GSM network only if the IMEI code is registered in the White list of EIR. This number is useful in case SIMADO GFX44 is lost or stolen. The network operator can block the IMEI number of the GSM module installed in the system.
  • Page 137 • The IMEI number of the GSM modules in your system will appear on your screen. • Click OK button to return to the Main Menu. Matrix SIMADO GFX44 System Manual...

  • Page 138: Multi-Stage Dialing

    Another application where Multi-stage Dialing is used is when SIMADO GFX44 is used as a gateway to connect a PCO and a PBX for GSM-Fixed line network connectivity.
  • Page 139 A PCO owner at a remote rural, hilly area wants to provide telephony services to the residents of this area using SIMADO GFX44 and a PBX located in an urban area where fixed lines CO and ISDN networks are available.
  • Page 140 2xxx (Remote Location) SIMADO GFX44 at the PCO is so configured that whenever a customer makes a call, the call is first made to the Mobile Port of the PBX. Using DISA services of the PBX, the final destination number dialed by the customer is dialed.
  • Page 141 • Now when the customer at PCO dials the number 00449652324256, • SIMADO GFX44 installed at Location A would check the Dialed Number List. The dialed number 00449652324256 matches with the entry in the table. • The system will check the corresponding Substitute Number in the Substitute Number List.
  • Page 142 Configure DTMF Out Dial - Inter Digit Timer for the Mobile Port. See “Mobile Port Parameters” details. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu. •...

  • Page 143: Number Lists

    A Number List is a data structure consisting of various digits/ string of digits and/ or characters, configured for the functioning of features like Allowed-Denied Numbers and Automatic Number Translation. SIMADO GFX44 supports 16 number lists, each having total 24 entries. Each entry can be of maximum 40 characters. All ASCII characters are allowed.
  • Page 144 Click OK button to return to the Main Menu. Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To configure a number string in the Number List, dial:...
  • Page 145 To clear a number string from the Number List, dial: 101-Number List-Location Index-#* To clear number strings from all the locations of a Number List, dial: 102-Number List-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 146: Returned Calls To Original Callers (Rcoc)

    Returned Calls to Original Callers (RCOC) The outgoing calls made by users of SIMADO GFX44 may go unanswered by the called party. It is possible for the called party to return the call on the basis of the CLI received. In this scenario, when the called party calls back, it is desirable that the call be routed to the same user who originally made the call.
  • Page 147 Select the type of RCOC you want to set. You may enable any one or all three types of RCOC- On Busy, On No Response, On Speech. Default: Disabled. • Click the Upload Changes or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 148 • Click the Yes button. All the entries stored in RCOC database will be cleared. • Click Upload Changes or Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 149 To set Record Delete Timer, dial: 221-Record Delete Timer-#* Where, Record Delete Timer is from 001 to 999 minutes. Default: 999 minutes. To clear RCOC table entries, dial: 225-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 150: Routing Group

    The selection of the destination port from a routing group will depend on the member selection method assigned to that routing group. SIMADO GFX44 supports two methods of selecting a member from a group: First Free: In this method, the call is routed to the first free member of the routing group.
  • Page 151 • In Routing Groups, select the Member Selection Method for a Routing Group Number. SIMADO GFX44 will use this method for selecting a member in a group for placing the call. You can select Rotation or First Free. Default: Rotation.
  • Page 152 • To assign a Routing Group to the Mobile Port for Time Zone 1, dial: 207-Mobile Port-Routing Group-#* Where, Mobile Port is from 1 to 4. Routing Group is from 01 to 16. Default: 01 Matrix SIMADO GFX44 System Manual...
  • Page 153 Mobile Port is from 1 to 4. Routing Group is from 01 to 16. Default: 01 To assign a Routing Group to all Mobile Ports for Time Zone 4, dial: 210-*-Routing Group-#* • To exit programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 154: Routing Type

    Numbers Table. You can store maximum 250 entries in the Dialed Numbers Table. In this type of routing, when the call originates on the source port, SIMADO GFX44 will give dial tone to the caller. When the caller dials desired digits, •...
  • Page 155 In this Routing Type, the calls are routed to the fixed Routing Group configured for the source port according to the time zone. In this type of routing, when the call originates on the source port, SIMADO GFX44 will give dial tone to the caller. When the caller dials the desired digits, •...
  • Page 156 In Dialed Numbers, enter the numbers that you expect your users to dial frequently. Default: Blank. • In Routing Group, select the routing group for the dialed numbers. SIMADO GFX44 will route the calls to the destination port configured in this routing group.
  • Page 157 Routing Type is Answer-Fixed and Routing Group is 04 for all Time Zones. • Click the Upload Changes or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 158 Configuring by dialing commands • Enter Programming mode (see “Configuring SIMADO GFX44 by dialing commands”) and follow the steps given below: • To configure the number string in the Dialed Numbers Table, dial: 151-Index-Number String-#* Where, Index is from 001 to 250.
  • Page 159 Routing Type is 0 for Off 1 for Answer Number Based 2 for Answer Fixed 3 for Direct Default: Answer Fixed. To assign a Routing Type to all FXS Ports for Time Zone 4, dial: 184-*-Routing-Type-#* Matrix SIMADO GFX44 System Manual...
  • Page 160 To assign a Routing Type to the Mobile Port for Time Zone 4, dial: 188-Mobile Port-Routing-Type-#* Where, Mobile Port is from 1 to 4. Routing Type is 0 for Off 1 for Answer Number Based 2 for Answer Fixed Matrix SIMADO GFX44 System Manual...
  • Page 161 3 for Direct Default: Direct. To assign a Routing Type to all Mobile Ports for Time Zone 4, dial: 186-*-Routing-Type-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 162: Sim Balance And Recharge

    Using the SIM Balance and Recharge feature, you can check the balance of the prepaid SIM Card installed in SIMADO GFX44 and recharge it, if required. This feature depends on the network and the services provided by the service provider.
  • Page 163 Click OK button to return to the Main Menu. Configuring by dialing commands • SIMADO GFX44 will execute your commands to make balance inquiry and recharge only if the Mobile Port is enabled, registered and idle. • Balance Inquiry and Recharge response will be displayed on the phone connected to the FXS Port, only if the CLI type configured on that FXS Port is FSK.
  • Page 164 Recharge PIN can be of maximum 20 characters. Characters 0 to 9, # and * are allowed. Default: Blank. • To make a Recharge Request for a Mobile Port, dial: 195-Mobile Port-#* Mobile Port is from 1 to 4. • To exit programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...

  • Page 165: Sim Pin

    Change the SIM PIN to 1234. This is the default SIM PIN of SIMADO GFX44. • If your SIMADO GFX44 has a 3G module, you must also disable Call Waiting on the SIM Card. This will prevent current calls from being disconnected whenever there is a waiting call on the Mobile Port.
  • Page 166 • On the Main Menu, click the Mobile SIM PIN button. You must click the Download Page button to view the current SIM PIN of SIMADO GFX44. • In SIM PIN, change the default SIM PIN to the desired value, if required.

  • Page 167: Time Table

    Time Table You can configure four different timetables in SIMADO GFX44. Each timetable is divided into four time zones. You can assign different routing types and routing groups to each timezone in a timetable and assign it to the desired port.
  • Page 168 Assign Timetable to the FXS Port. By default, Timetable 1 is assigned to all FXS Ports. • Click the Upload Changes or the Upload Page button to upload the changes to SIMADO GFX44. • Click OK button to return to the Main Menu.
  • Page 169 333-Mobile Port-Time Table-#* Where, Mobile Port is from 1 to 4. Timetable is from 1 to 4. Default: 1 To assign Timetable to all Mobile Ports, dial: 333-*-Time Table-#* • To exit the programming mode, dial 00-#* Matrix SIMADO GFX44 System Manual...
  • Page 170 Matrix SIMADO GFX44 System Manual...

  • Page 171: Appendix

    Light Emitting Diodes Mobile Country Code Mobile Network Code Minutes milliseconds Private Branch Exchange Personal Identification Number PSTN Public Switched Telephone Network Power RCOC Returned Calls to Original Callers Real Time Clock System Engineer Subscriber Identification Module Matrix SIMADO GFX44 System Manual...

  • Page 172: Product Specifications

    Pulse Dialing : 10pps and 20pps @ 1:2, 2:3 and 1:1 DTMF Dialing and : ITU-T Q.23 and Q.24 Reception CLIP : DTMF, FSK ITU-T V.23 and FSK Bellcore 202A Flash Timer : 83-999 msec. (Programmable) Matrix SIMADO GFX44 System Manual...
  • Page 173 Dimensions (W x H x D) : 163 mm x 230 mm x 55 mm (6.42" x 9.06" x 2.17") Unit Weight : 0.740kg (1.63lbs) Shipping Weight : 1.875kg (4.13lbs) Installation : Wall Mountable, Desk-Top Matrix SIMADO GFX44 System Manual...

  • Page 174: System Commands

    To set filter to print all calls terminated on Mobile Port 133-Mobile Port-Mobile Port-#* To enable/disable the filter for calls terminated on the 142-Code-#* Mobile Port To set filter to print all calls originated from FXS Port 134-FXS Port-FXS Port-#* Matrix SIMADO GFX44 System Manual...
  • Page 175 Minutes Allowed for all Mobile Ports To display Minutes Used on the telephone instrument 317-Mobile Port-#* Call Proceeding Tone To set call proceeding tone for Mobile 277-Call Proceeding Tone-#* Call Progress Tones (CPT) To configure CPT for a country 281-Code-#* Matrix SIMADO GFX44 System Manual...
  • Page 176 To configure fixed destination number for fixed dialing 176-Mobile Port-Number String-#* on the Mobile Port To configure fixed destination number for fixed dialing 176-*-Number String-#* on all Mobile Ports International Mobile Equipment Identity To read IMEI number of mobile port By Jeeves Matrix SIMADO GFX44 System Manual...
  • Page 177 To configure Inter Digit Wait Timer for the FXS Port 253-FXS Port-Inter Digit Wait Timer-#* To configure Inter Digit Wait Timer for all FXS Ports 253-*-Inter Digit Wait Timer-#* To configure Flash Timer for the FXS Port 254-FXS Port-Flash Timer-#* Matrix SIMADO GFX44 System Manual...
  • Page 178 To configure Transmit Gain for all Mobile Ports 273-*-Transmit Gain-#* To configure Inter Digit Wait Timer for the Mobile Port 274-Mobile Port-Inter Digit Wait Timer-#* To configure Inter Digit Wait Timer for all Mobile Ports 274-*-Inter Digit Wait Timer-#* Matrix SIMADO GFX44 System Manual...
  • Page 179 To configure DTMF Detection Minimum ON Duration for 227-Mobile Port-DTMF Detection Minimum ON the Mobile Port Duration-#* Reinstate the Default Settings To load default configuration in SIMADO GFX44 292-Reverse SE Password-#* Restart the System To restart SIMADO GFX44 291-#* Returned Calls to Original Callers (RCOC)
  • Page 180 To assign a Routing Type to the FXS Port for TimeZone 181-FXS Port-Routing Type-#* To assign a Routing Type to all FXS Port for TimeZone 1 181-*-Routing Type-#* To assign a Routing Type to the FXS Port for Time Zone 182-FXS Port-Routing Type-#* Matrix SIMADO GFX44 System Manual...
  • Page 181 193-Mobile Port-Recharge Number-#* To configure the Recharge Number for all Mobile Ports 193-*-Recharge Number-#* To configure the Recharge PIN for a Mobile Port 194-Mobile Port-Recharge PIN-#* To make a Recharge Request for a Mobile Port 195-Mobile Port-#* Matrix SIMADO GFX44 System Manual...
  • Page 182 Programming Commands SIM PIN To change the SIM PIN of a Mobile Port 243-Mobile Port-New SIM PIN-#* Software Version/Revision To view software version/revision of SIMADO GFX44 By Jeeves System Debug To start and stop the system debug 309-Code-#* To start and stop the mobile port debug...

  • Page 183: Warranty Statement

    Matrix has been advised of the possibility of such damages or losses or for any claim by any other party.

  • Page 184: Regulatory Information

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Matrix SIMADO GFX44 System Manual...
  • Page 185 Matrix SIMADO GFX44 System Manual...
  • Page 186 Matrix SIMADO GFX44 System Manual...

  • Page 187: Index

    CLIR on call basis 116 Configuring by dialing commands 94 COM Port Parameters 67 Configuring using Jeeves 92 Communication Port 6 Configuring SIMADO GFX44 by dialing commands 34 Configuring the special digits 64 Connecting the System 12 , 85 Baud Rate 14...
  • Page 188 , 85 Parity 14 Forgot SE Password? 79 Pause Timer 47 Frequency Band 48 Pin details of the COM Port of SIMADO GFX44 13 FXS Port Parameters Ports and Connectors 5 Configuring FXS Ports by dialing command 38 Power jack 5...
  • Page 189 To generate Debug 85 , 81 To reinstate Default Settings 80 , 83 To restart SIMADO GFX44 82 To view Software Version-Revision 84 Verifying Package Contents 11 View Mobile Port Status by dialing command 74 View Mobile Port Status using Jeeves 73...
  • Page 190 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India. Ph:+91 265 2630555 E-mail: Support@MatrixComSec.com www.MatrixTeleSol.com...

Table of Contents
