Fourier MultiLogPRO User Manual page 84

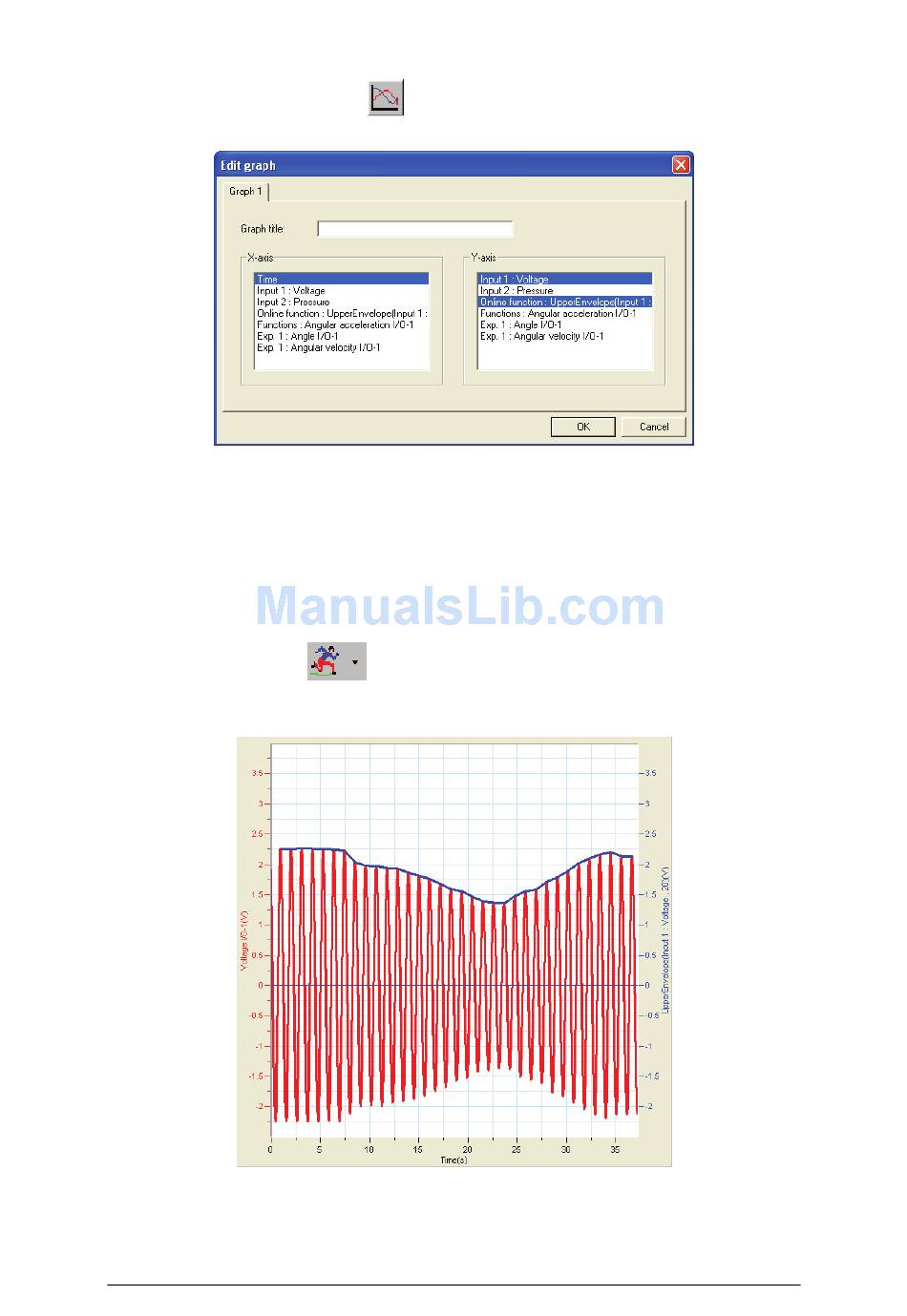

5. Click Edit graph
dialog box:
Figure 23: Using graph edit dialog to display online functions
6. In the Y-Axis list click Input 1: Voltage to select it and then click
Online function: Envelope (upper) to select it.
7. If there are other highlighted data sets in the Y-Axis list, deselect
them by clicking on them.
8. Click OK.
9. Click Run on the main toolbar to start recording. MultiLab will
display the original data readings coming from Input 1, as well as the
data processed by the analysis function:
Figure 24: Online envelope function
on the graph toolbar to open the Graph edit
Chapter 2 MultiLab Software 75
