5. Presetting the Graph's X-axis

1. Click X-Axis display properties in the first step of the Setup Wizard
to open the dialog box:
2. Select the graph you wish to modify.
3. Select the measurement you'd like to display on the X-axis.
4. If you want a specific scale, uncheck the Auto scale check box and
enter the minimum and maximum values of the axis.
5. Click OK.

6. Triggering

To start the data recording only when a specific time or measurement condition has
been met, click Triggering in step 3 of the Setup Wizard to open the triggering dialog
box:
1. Select the triggering sensor in the Based on sensor drop list.
58 Chapter 2 MultiLab Software

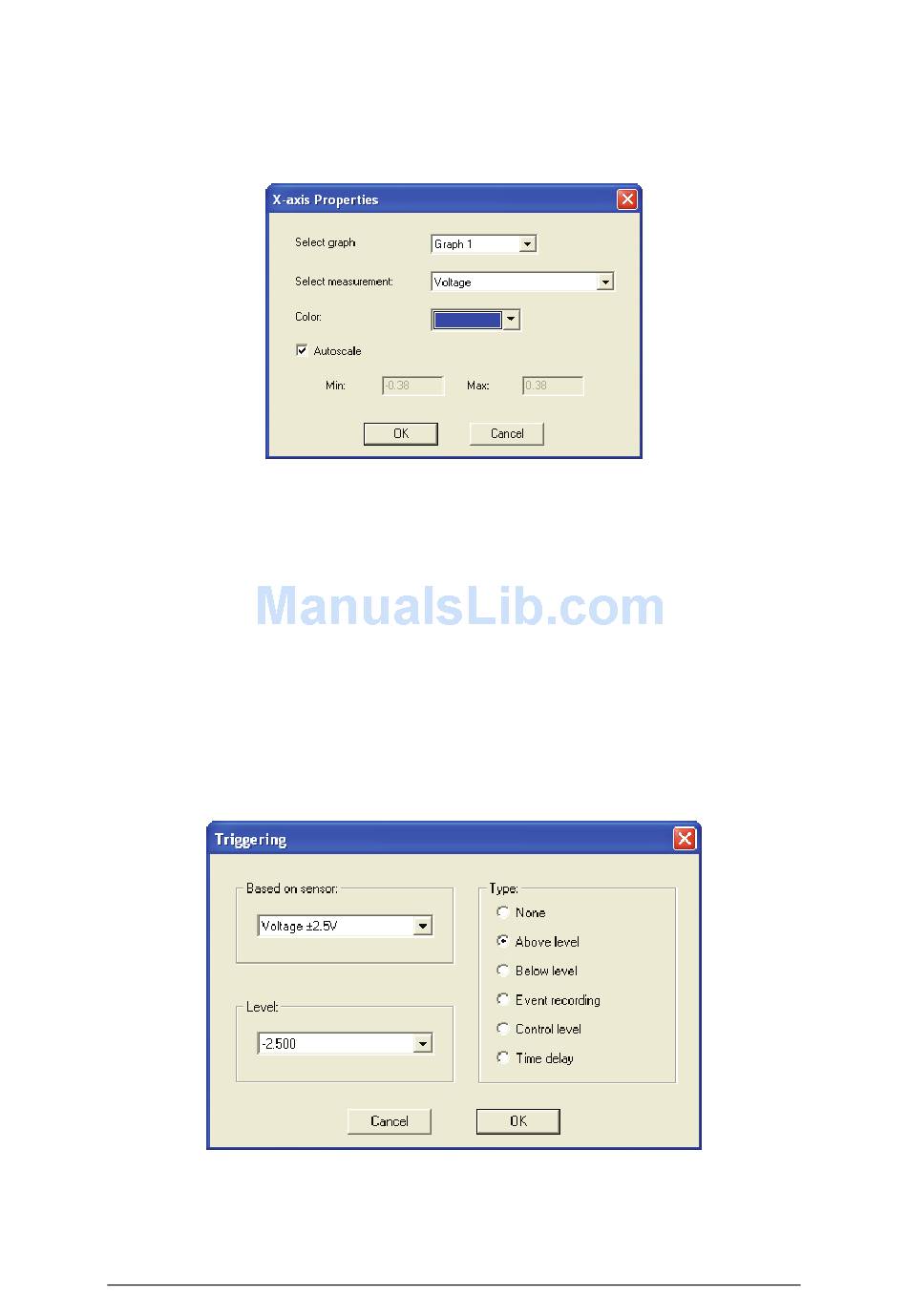

Figure 13: X-axis properties dialog box
Figure 14: Triggering dialog box
