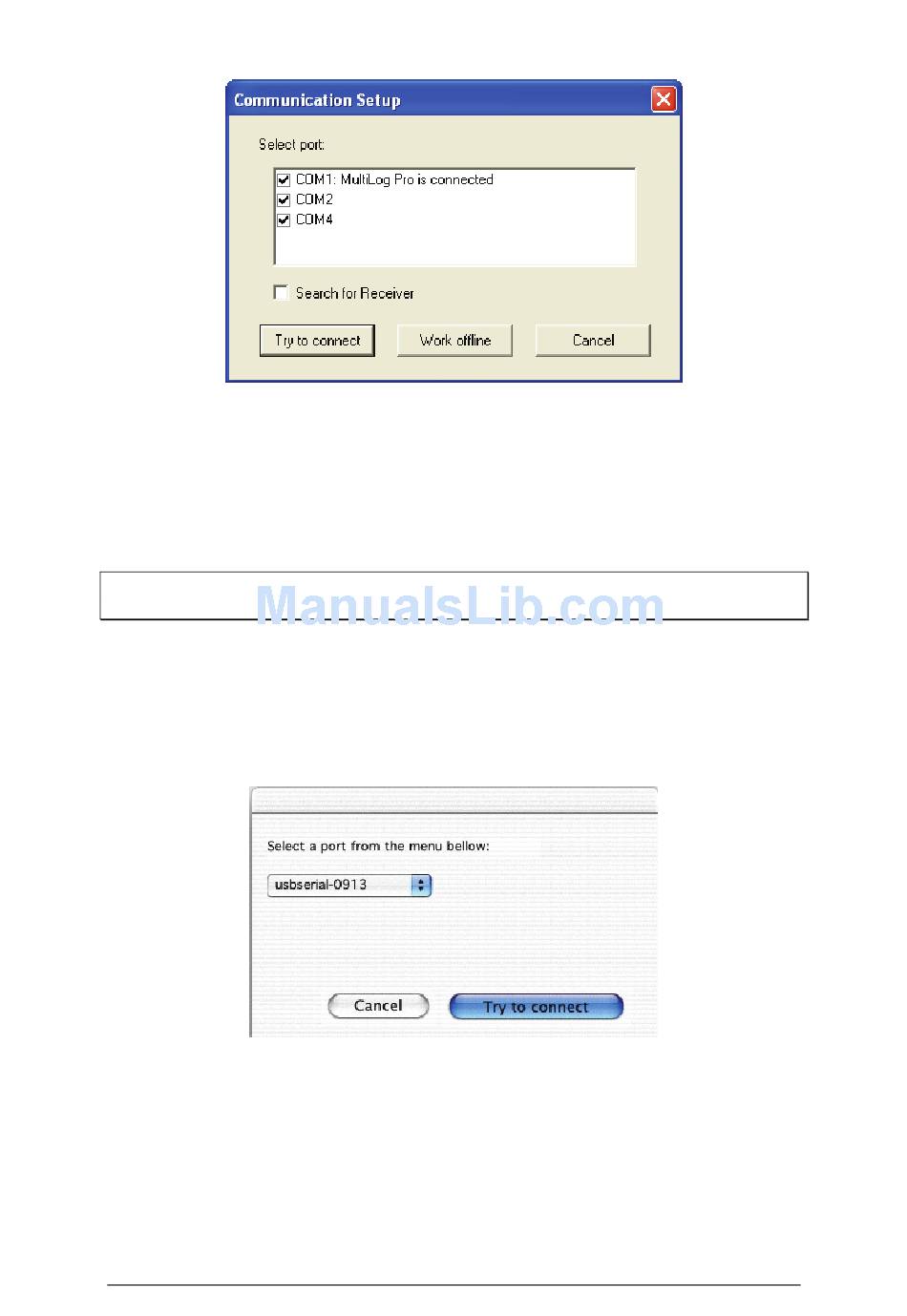

Figure 17: Communication setup dialog box (Windows)
2. Click Try to connect and MultiLab will try to communicate with
MultiLogPRO. If communication is achieved, MultiLab will designate
the selected port as MultiLogPRO's communication port.
You can override the MultiLab recommendation and choose the COM port yourself
by clicking the check box button to the left of the desired port, and clicking Try to
connect.
Note: In the event of any communication malfunction, please refer to 3.1:
Troubleshooting Guide.
3. You can click Work offline if you wish to work without
MultiLogPRO. While working offline, you can still open saved files to
view and analyze them.
Working in Mac OS
1. Select Comm Setup from the Logger menu. MultiLab will display a
dialog box listing the available ports:
Figure 18: Communication setup dialog box (Mac OS)
2. Select a port from the menu list.
3. Click Try to connect and MultiLab will try to communicate with the
data logger. Once communication is established, MultiLab reports
the connection in the status bar at the bottom of the application
window.
