2. Capturing Data

1. Click Run
process.
2. Watch the online graph, and when the graph reaches a point you
wish to capture, click Capture
enters the momentary data to the capture table sequentially.
3. If logging stops, simply click Run to continue the data recording and
capturing.
4. After you've finished capturing the desired data, click Table on the
menu toolbar, and then click Capture mode to exit capture mode.

3. Displaying the Captured Data on the Graph

1. Click Edit graph
dialog box:

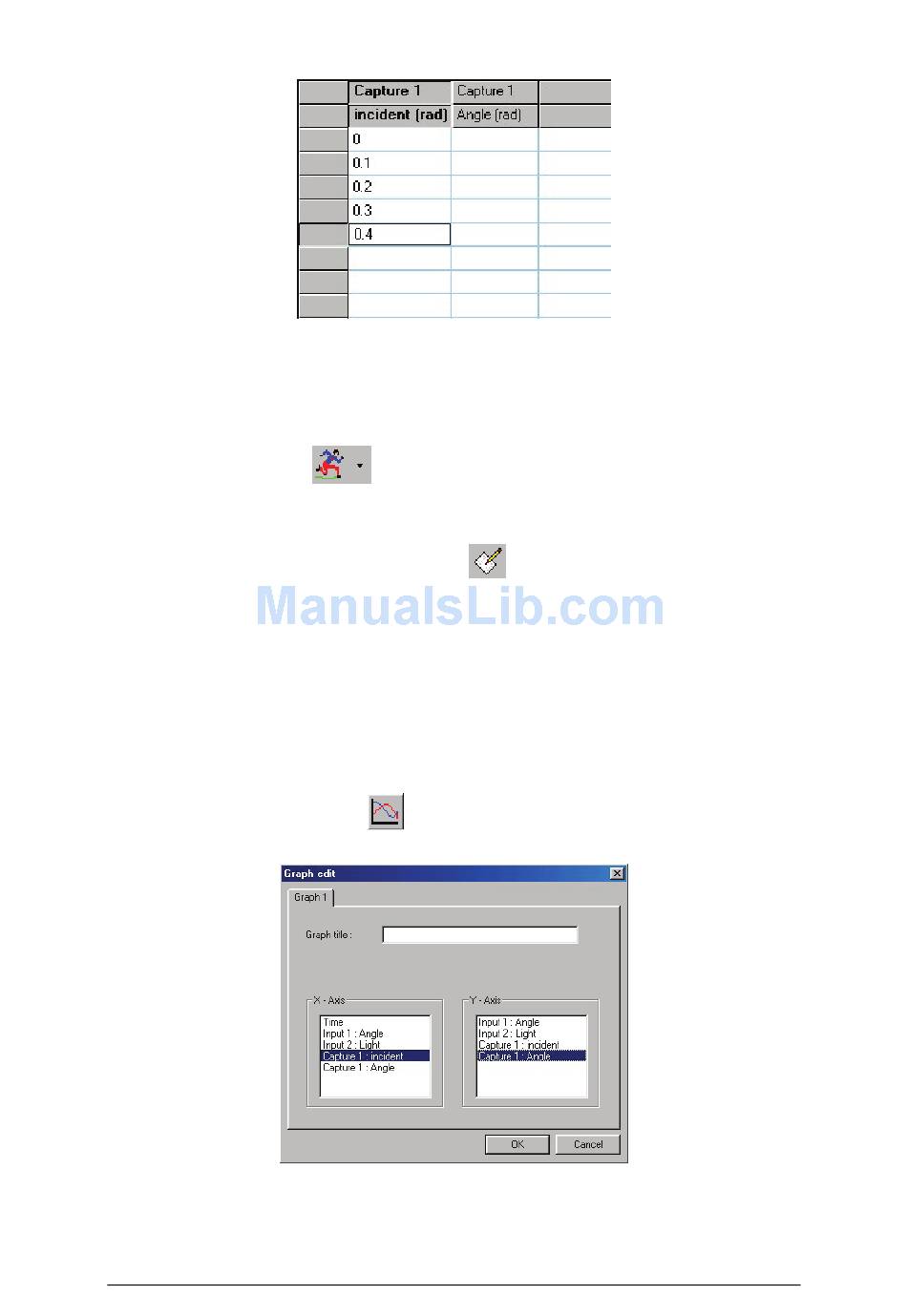

Figure 31: Using Graph edit dialog box to display captured data
100 Chapter 2 MultiLab Software
Figure 30: Capture table
on the main toolbar to start the data recording
on the table toolbar. MultiLab
on the graph toolbar to open the Graph edit
