Appendix B: Adding a Code Resistor
to a Custom Sensor
In order for MultiLogPRO to automatically identify a sensor, it must have a code
resistor. Figure 33 shows the MultiLogPRO input socket configuration.
You must connect the resistor between the Auto recognition resistance input and the
GND input.
When you define a custom sensor in the MultiLab program you must choose one
sensor from the list provided. Note its position in the list and look in Table 1 to find
the resistance.
Position in Define
sensor dialog box
drop down menu
138 Appendix

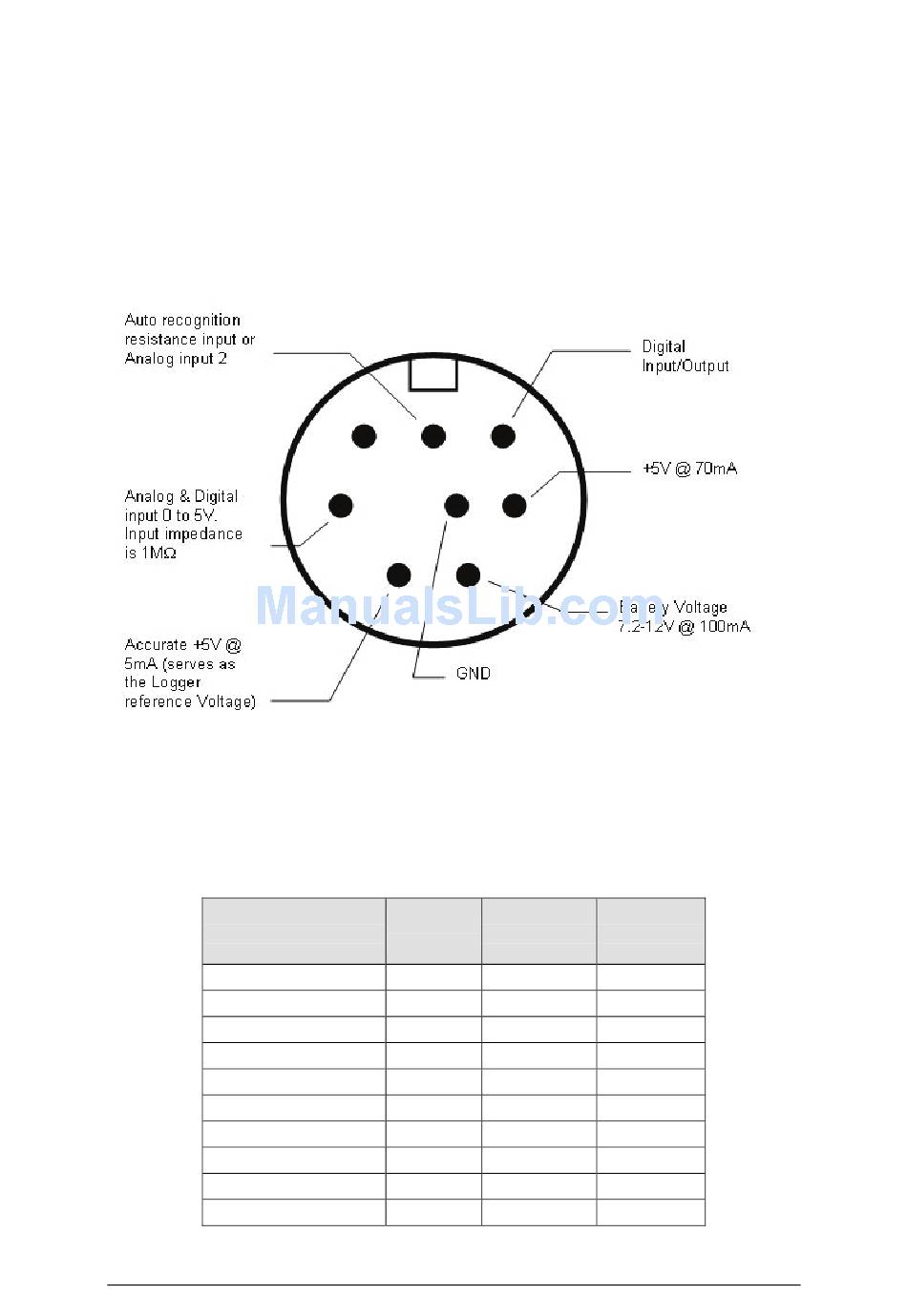

Figure 33: MultiLogPRO I/O socket configuration.
Mini DIN female. MultiLogPRO panel view
Table 1: Auto recognition resistors
Resistance
(kΩ)
1 372
2 410
3 455
4 508
5 573
6 653
7 754
8 888
9 1071
10 1337
Max Min
Resistance Resistance
(kΩ) (kΩ)
384.1 360.9
424.8 396.5
472.9 437.8
530.9 486.6
601.9 544.8
691.1 615.6
806.5 703.4
961.9 814.6
1183.0 959.2
1524.4 1151.2
