In capture mode, when you start recording, the data in the graph window appears as
it normally does, but every time you click Capture, MultiLab enters the most recently
recorded value into a new entry in the capture table.
When you have finished capturing data, you can add manual columns to the table
and display the data in the graph window.

1. Preparing the Capture Table

1. Click Table on the menu toolbar, and then click Capture mode to
open the Capture dialog box:
2. In the Available Sensors list, select the sensors you want to
capture by clicking their name and then click Add.
3. If you want to insert a manual column into the table, click Insert
manual column to open the dialog box:
4. Enter the column's name and unit, then click OK.
The new column is added to the Current Columns list.
Note: You can always add manual columns later by clicking Add manual column on
the Table menu.
5. Click OK.
MultiLab opens a new table with the columns you defined.
6. Enter values into the manual column by clicking a cell and typing the
number, then press Enter or the down arrow key to move to the next
cell:

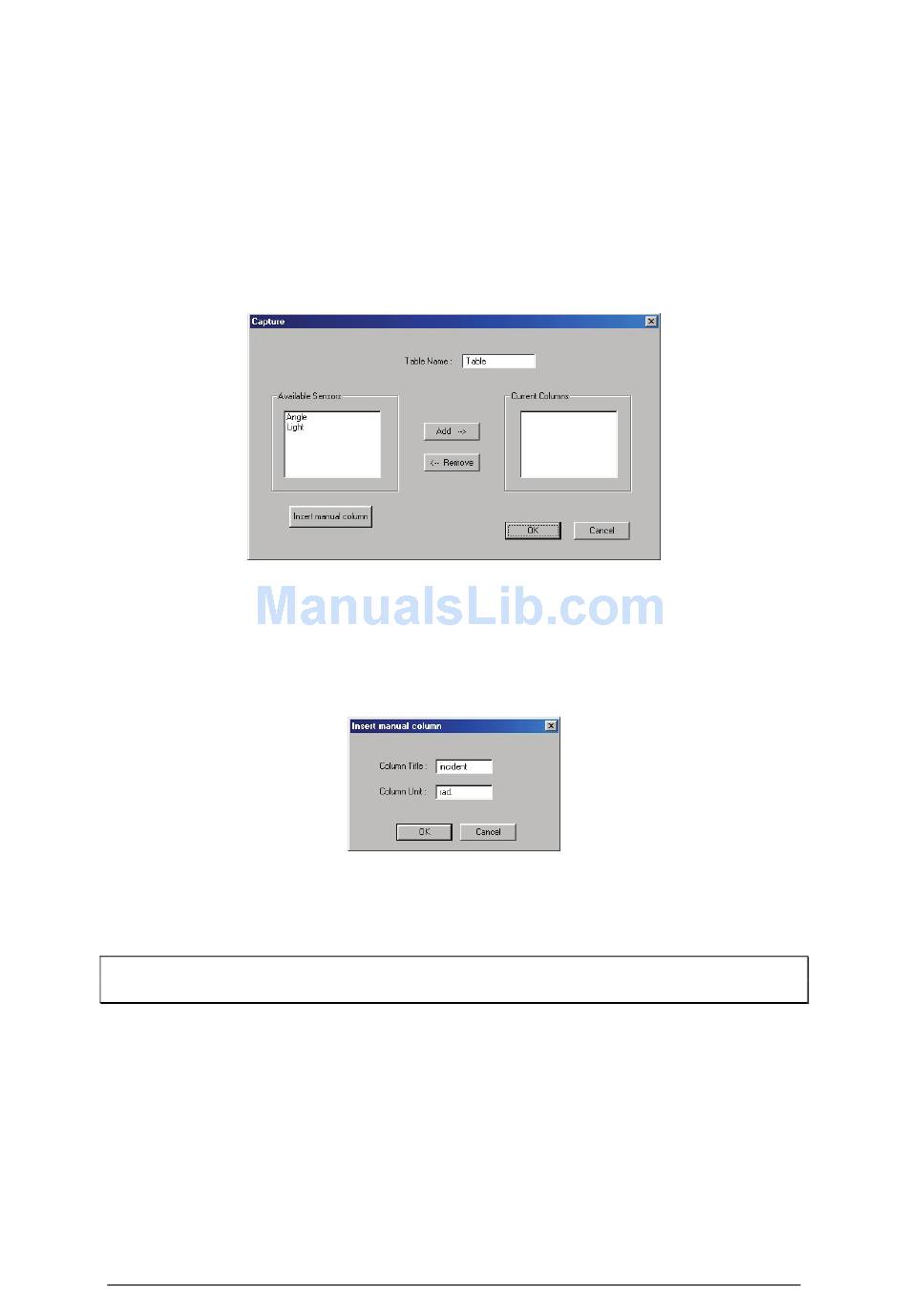

Figure 28: Capture dialog box
Figure 29: Manual Column dialog box
