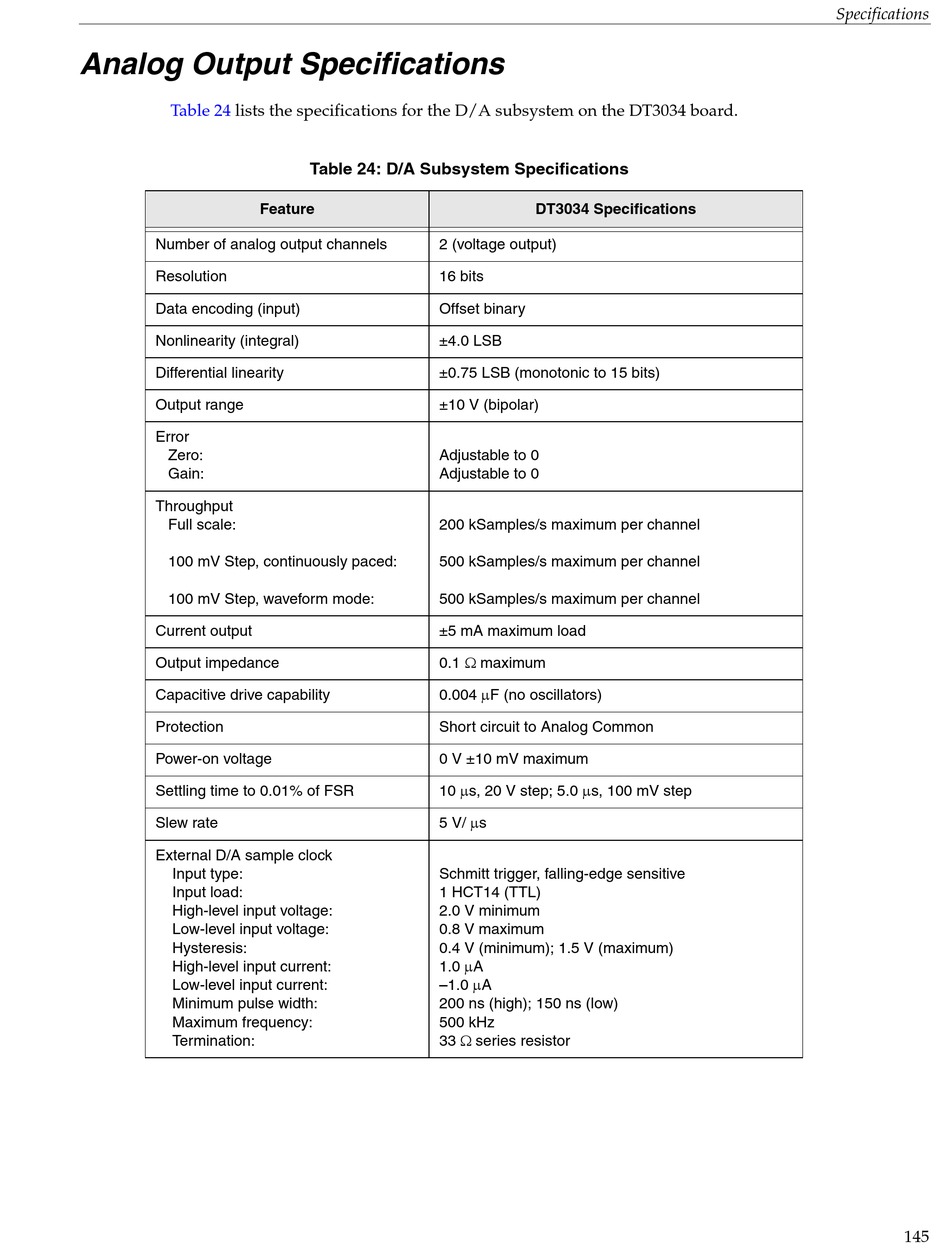

Analog Output Specifications
Table 24 lists the specifications for the D/A subsystem on the DT3034 board.
Number of analog output channels
Resolution
Data encoding (input)
Nonlinearity (integral)
Differential linearity
Output range
Error
Zero:
Gain:
Throughput
Full scale:
100 mV Step, continuously paced:
100 mV Step, waveform mode:
Current output
Output impedance
Capacitive drive capability
Protection
Power-on voltage
Settling time to 0.01% of FSR
Slew rate
External D/A sample clock
Input type:
Input load:
High-level input voltage:
Low-level input voltage:
Hysteresis:
High-level input current:
Low-level input current:
Minimum pulse width:
Maximum frequency:
Termination:
Table 24: D/A Subsystem Specifications
Feature DT3034 Specifications
2 (voltage output)
16 bits
Offset binary
±4.0 LSB
±0.75 LSB (monotonic to 15 bits)
±10 V (bipolar)
Adjustable to 0
Adjustable to 0
200 kSamples/s maximum per channel
500 kSamples/s maximum per channel
500 kSamples/s maximum per channel
±5 mA maximum load
0.1  maximum
0.004 F (no oscillators)
Short circuit to Analog Common
0 V ±10 mV maximum
10 s, 20 V step; 5.0 s, 100 mV step
5 V/ s
Schmitt trigger, falling-edge sensitive
1 HCT14 (TTL)
2.0 V minimum
0.8 V maximum
0.4 V (minimum); 1.5 V (maximum)
1.0 A
1.0 A
–
200 ns (high); 150 ns (low)
500 kHz
33 series resistor
