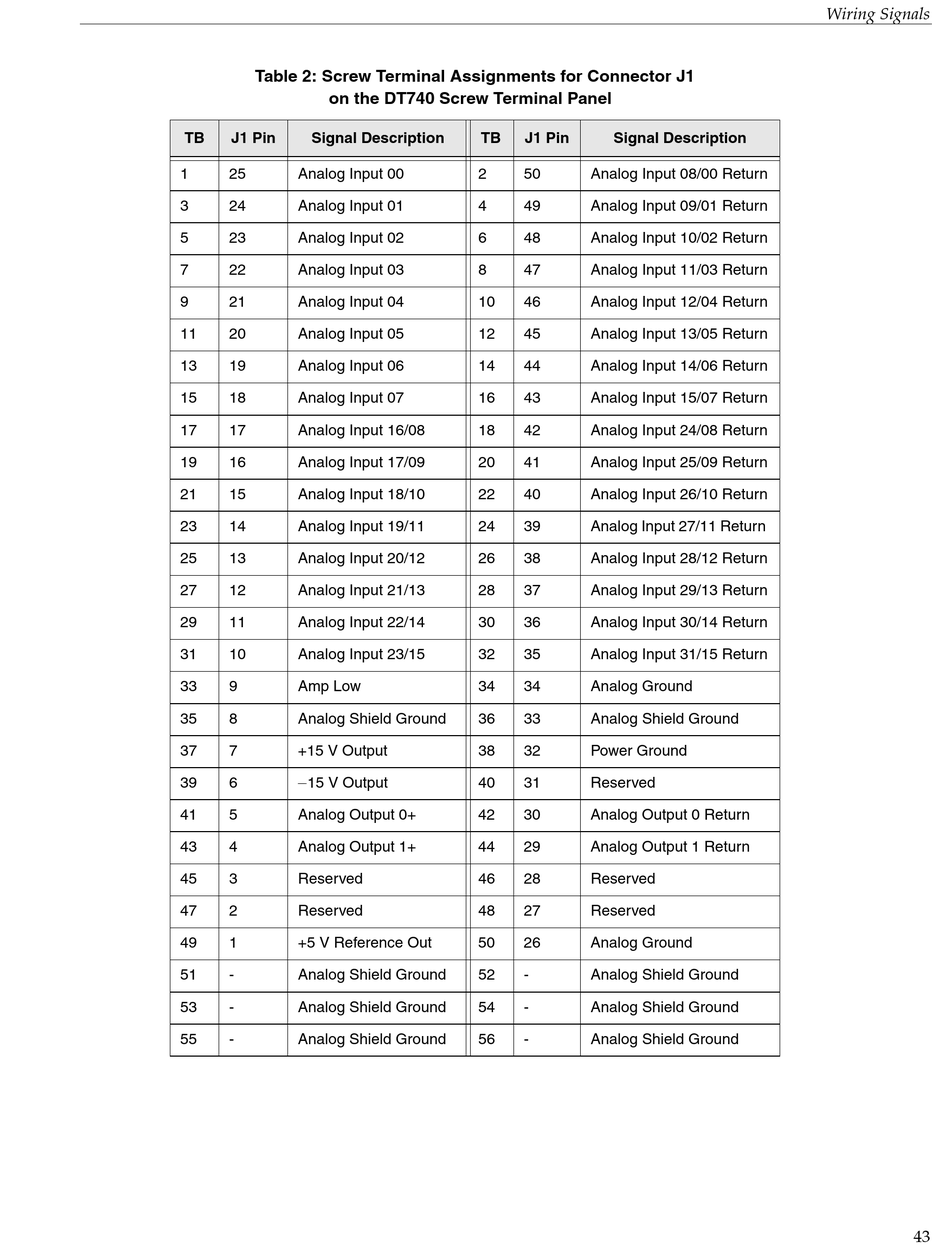

Table 2: Screw Terminal Assignments for Connector J1
on the DT740 Screw Terminal Panel
TB J1 Pin Signal Description
1 25 Analog Input 00
3 24 Analog Input 01
5 23 Analog Input 02
7 22 Analog Input 03
9 21 Analog Input 04
11 20 Analog Input 05
13 19 Analog Input 06
15 18 Analog Input 07
17 17 Analog Input 16/08
19 16 Analog Input 17/09
21 15 Analog Input 18/10
23 14 Analog Input 19/11
25 13 Analog Input 20/12
27 12 Analog Input 21/13
29 11 Analog Input 22/14
31 10 Analog Input 23/15
33 9 Amp Low
35 8 Analog Shield Ground
37 7 +15 V Output

39 6 15 V Output
41 5 Analog Output 0+
43 4 Analog Output 1+
45 3 Reserved
47 2 Reserved
49 1 +5 V Reference Out
51 - Analog Shield Ground
53 - Analog Shield Ground
55 - Analog Shield Ground
TB J1 Pin Signal Description
2 50 Analog Input 08/00 Return
4 49 Analog Input 09/01 Return
6 48 Analog Input 10/02 Return
8 47 Analog Input 11/03 Return
10 46 Analog Input 12/04 Return
12 45 Analog Input 13/05 Return
14 44 Analog Input 14/06 Return
16 43 Analog Input 15/07 Return
18 42 Analog Input 24/08 Return
20 41 Analog Input 25/09 Return
22 40 Analog Input 26/10 Return
24 39 Analog Input 27/11 Return
26 38 Analog Input 28/12 Return
28 37 Analog Input 29/13 Return
30 36 Analog Input 30/14 Return
32 35 Analog Input 31/15 Return
34 34 Analog Ground
36 33 Analog Shield Ground
38 32 Power Ground
40 31 Reserved
42 30 Analog Output 0 Return
44 29 Analog Output 1 Return
46 28 Reserved
48 27 Reserved
50 26 Analog Ground
52 - Analog Shield Ground
54 - Analog Shield Ground
56 - Analog Shield Ground
