Configuring the DT740 Screw Terminal Panel

This section describes how to locate and configure the jumpers and resistors on the DT740
screw terminal panel for use with a DT3034 board.
Figure 4
jumper and resistors.
Jumper and
Resistors

Configuring Jumper W1 - Common Ground Sense

When shipped from the factory, jumper W1 connects the low side of the input amplifier (Amp
Low) on the DT3034 board to analog ground.
When using pseudo-differential analog inputs, remove jumper W1 and connect Amp Low to a
remote common-mode voltage to reject offset voltages common to all 32 input channels. Refer
to page 46
36
shows the layout of the DT740 screw terminal panel, and shows the location of the
1 9
W1
R1 to R16
R17 to R32
J1
8 16
CTR CTR
57 65
Gnd 0
J2
Clk 0
Out 0
Gate 0
Gnd 1
Clk 1
Out 1
Gate 1
64 72

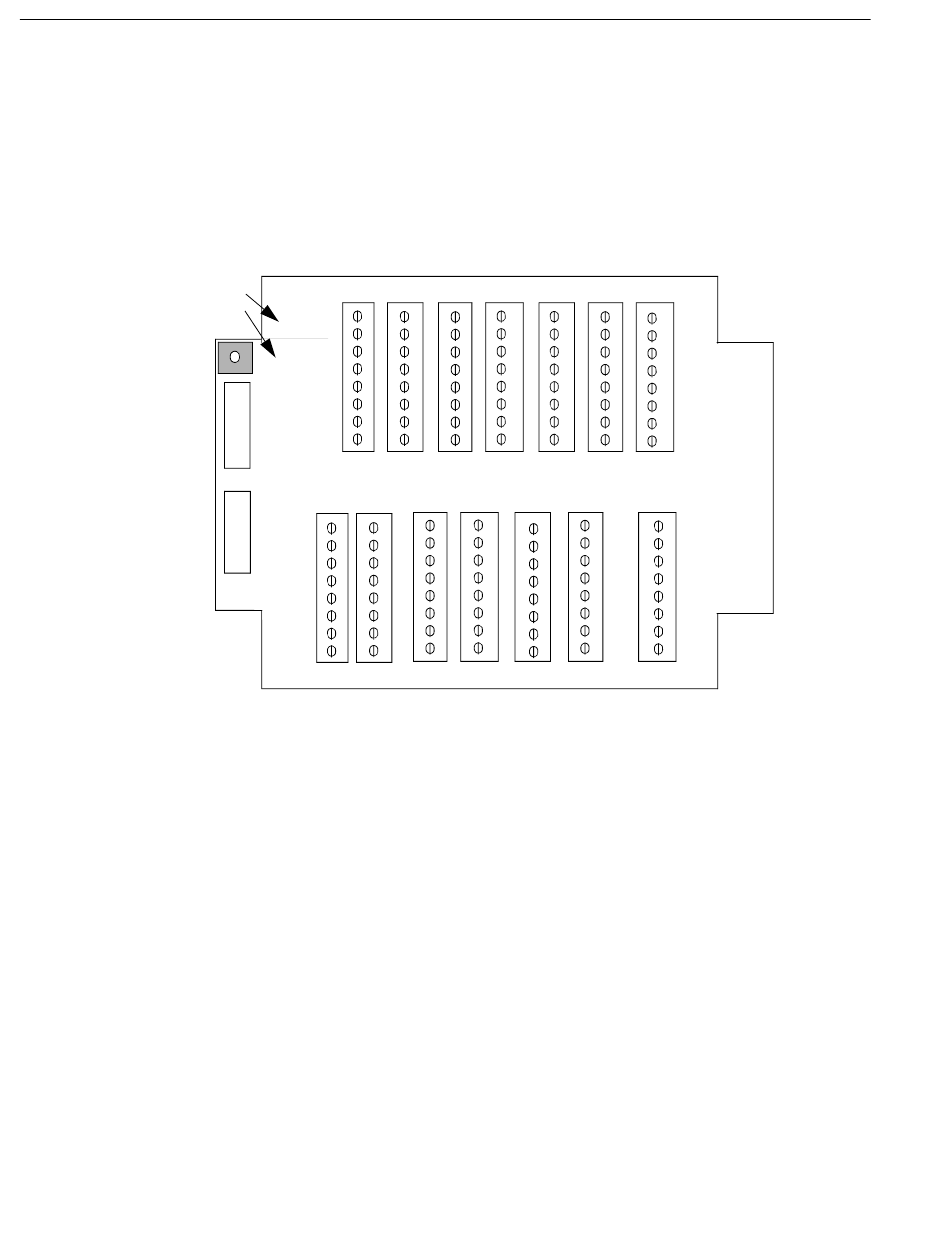

Figure 4: Layout of the DT740 Screw Terminal Panel
for an example of using jumper W1.
